9-8. DVE Effects on KEY/DSK
Dedicated 2D-DVE(2.5D) effects are available for each key in the standard configuration.
2D-DVE is available just by setting 2D DVE to ON in each key menu. As an example, this
section explains how to add a 2D-DVE effect on KEY1.

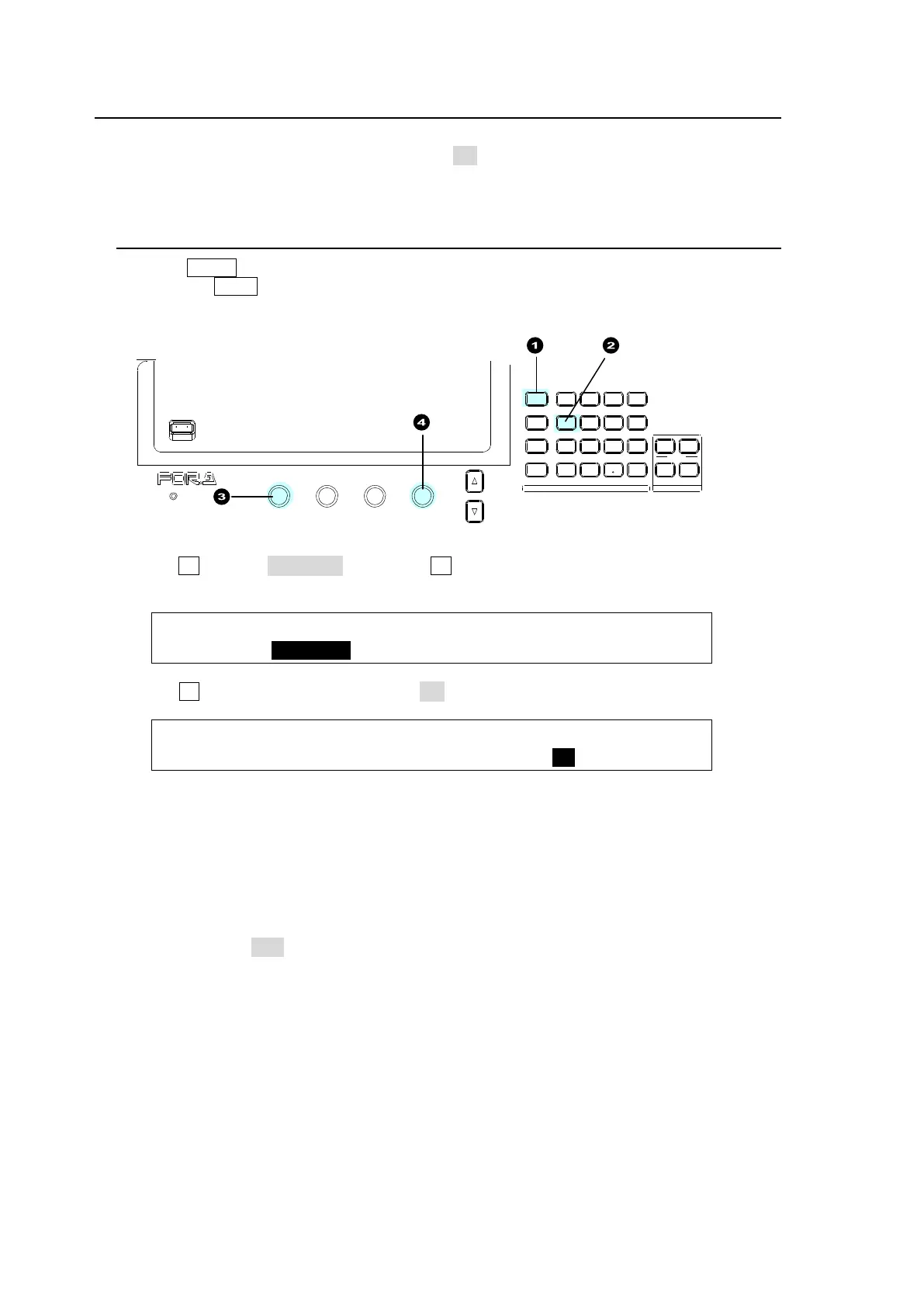

9-8-1. How to Enable 2D DVEs
(1) Press MENU in the SELECT/KEYPAD block.
(2) Press the KEY1 button to display the [KEY1 SETUP] menu.
(3) Turn F1 to select POS/SIZE, then press F1 or the page down button to display the [KEY1
- POS/SIZE] menu
KEY1 :>INS/SRC >EDGE >MASK
SETUP :>POS/SIZ >BORDER >INIT
(4) Turn F4 to set 2D DVE in the menu to ON.
KEY1 : POSITION : SIZE :2D DVE : 1/5
POS/SIZE:X=0 Y=0 : =1000 : =ON :
The 2D DVE function is enabled for KEY1, and therefore the POS/SIZE and BORDER
menus for KEY1 become available.
If 2D DVE cannot be set to ON:
Up to 4 channels of DVE can be assigned to BKGD, KEY1-2 and DSK1-2. If no free DVE
channels remain, 2D DVE cannot be enabled. In such case, deselect the assigned DVE
channels as shown below to create free channels.
Set 2D DVE to OFF (for KEY and DSK)
 See section 9-8-1. "How to Enable 2D DVEs."
Change transitions from WIPE (pattern: 100-137) to MIX (for KEY and BKGD):
 See section 8-3. "Background Transitions" and section 8-4. "KEY Transitions."
