58
7-3-2. Using the SHIFT Function
Once the SHIFT function has been assigned to a bus button, an additional 11 buttons are
available for signal selection.
This chapter explains how to select signals with the SHIFT button. Assume that video
sources and the shift function are assigned to bus buttons as shown in the table below:

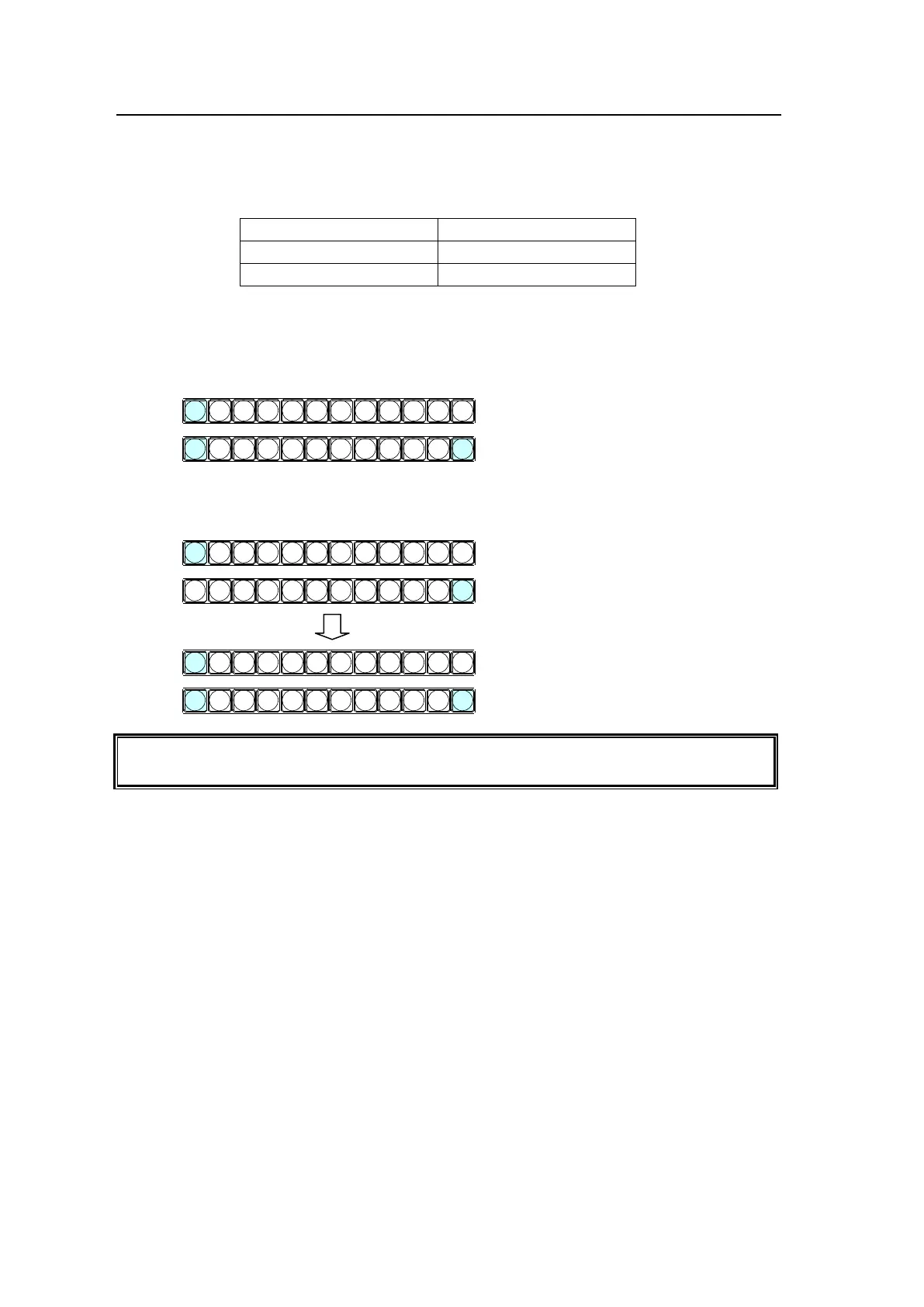

Now, let's select IN01 on PGM and STILL1 on PST.
When SHIFT works in NORMAL mode:
Shifted buttons are enabled while holding down SHIFT.
When SHIFT works in TOGGLE mode:
To select shifted buttons, press SHIFT then press a bus button.
The SHIFT setting (NORMAL or TOGGLE) can be selected in the [SETUP - INPUT -
ASSIGN] (3/3) menu.
Press 1 while holding down 12 (SHIFT) to
select STILL1.
PGM
PST
1 2 3 4 5 6 7 8 9 10 11 12
PGM
PST
1 2 3 4 5 6 7 8 9 10 11 12
Press 1 to select STILL 1.
PGM
PST
1 2 3 4 5 6 7 8 9 10 11 12
