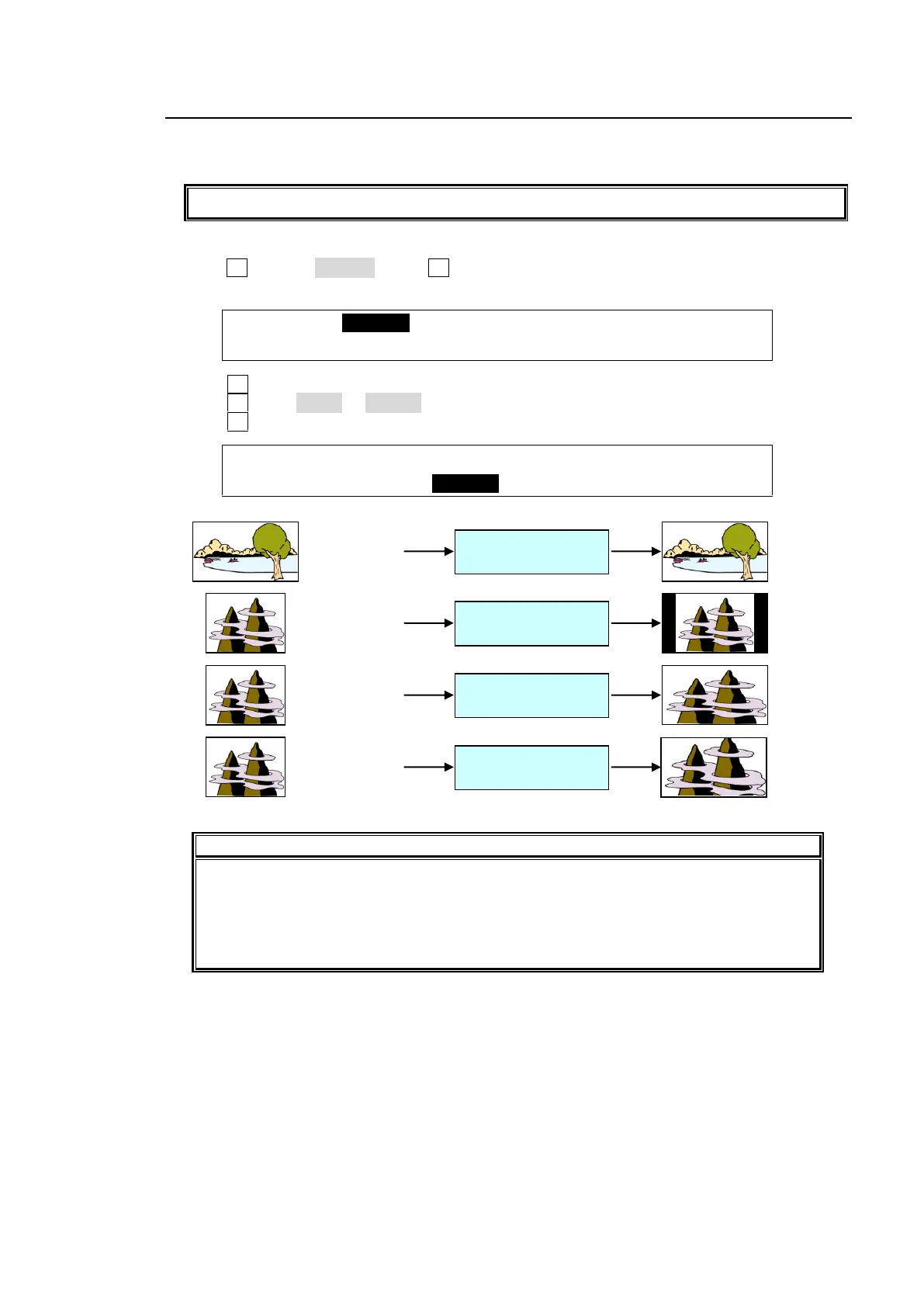

5-3. Resize Function
A resize function allows users to input SD signals at the same frame-rate as that in HD mode,
and enlarge them to use as HD images.
The Resize function is available on 4 inputs: IN05 to IN08.
(1) Display the [SETUP - INPUT] menu.
(2) Turn F1 to select SIGNAL. Press F1 or the page down button to display the [SETUP - INPUT
- SIGNAL] menu.
SETUP :>SIGNAL >PROC AMP>RENAME >ASSIGN
INPUT :>COLORBAR
(3) Turn F1 to select an input signal for resizing.
(4) Turn F2 to set AUTO or SD-SDI for FORMAT.
(5) Turn F3 to select an aspect ratio under RESIZE.
INPUT :SELECT :FORMAT :RESIZE : FS : 1/4
SIGNAL : =IN05 :=SD-SDI: =4:3 : =ON :
IMPORTANT
The Resize function is automatically enabled when SD signals are input to the
switcher in HD mode, and FORMAT in the [SETUP - INPUT - SIGNAL] menu is set to
SD-SDI. (Ensure the Resize function stays disabled if HD-SDI is set for FORMAT.)
The side panel color or image can be changed in 4:3 mode.
 See section 5-5 "Changing the Side Panel Image."
IN01 (HD)
(1080/59.94i)
FORMAT (AUTO)
RESIZE (OFF)
IN05 (SD)
(525/59.94i)
FORMAT (SD-SDI)
RESIZE (4:3)
IN05 (SD)
(525/59.94i)
FORMAT (SD-SDI)
RESIZE (SQUEEZE)
IN05 (SD)
(525/59.94i)
FORMAT (SD-SDI)
RESIZE (LETTER)
