3-2-2. Optional Configuration

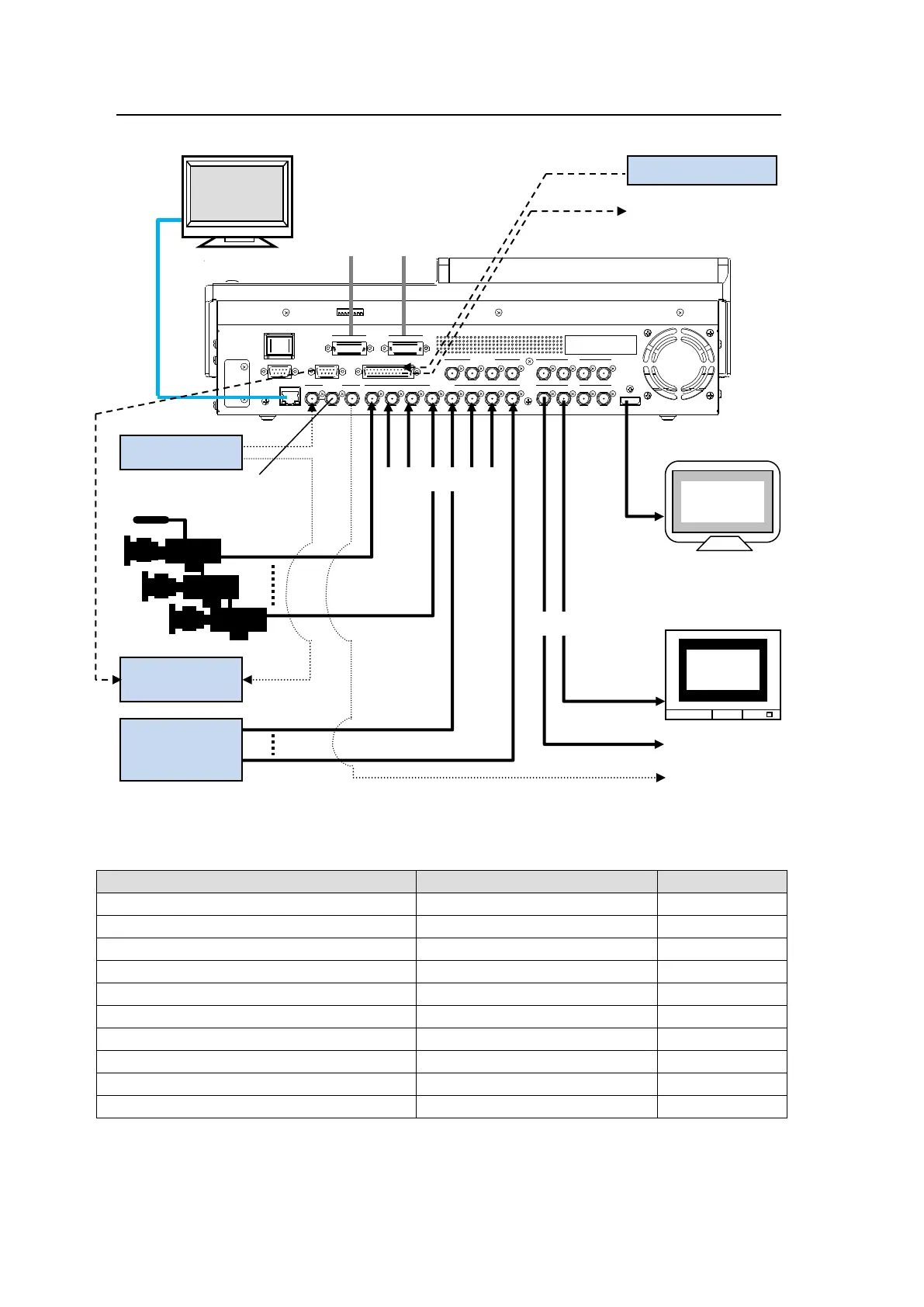

External Device Connections

Device / Signal

Connection / Interface

Refer to sec.

Multiviewer output

SDI (BNC) or HDMI

GPI in/out, Tally out

GPI IN/TALLY OUT

20-1

Tally unit

RS-422

20-1-3

VTR

RS-422

20-2

Router

RS-422

20-3

Editor

RS-422 (with software option)

20-4

AUX bus control boxes (HVS-AUX8/16/32)

ARCNET LAN (optional)

20-5

Remote Panel (HVS-30RU)

RS-422

20-6

PC (Web browser control)

Ethernet

PC (Image transport)

Ethernet

12-4

REF OUT 1 12 3 4 5 6 7 8 2 3 4REF IN

HDMI OUT

AUX

5 6 7 8

AUX

LAN

GENLOCK SDI INPUT

9 10 11 12

SDI INPUT

EDITOR RS-422 GPI IN/TALLY OUT

DC12V IN

1 2

MODE SWPOWER

OFF ON

adaptor

GPI OUT

TALLY OUT

GPI Controller

adaptor

75Ω-terminator

PGM(AUX1)

Video Server,

VTR, etc.

TSG (REF signal)

HD/SD SDI

Preview

(AUX2)

Multiview

(HDMI)

Router

Web-based control

Image file transfer

REF signal

HD/SD SDI
