195

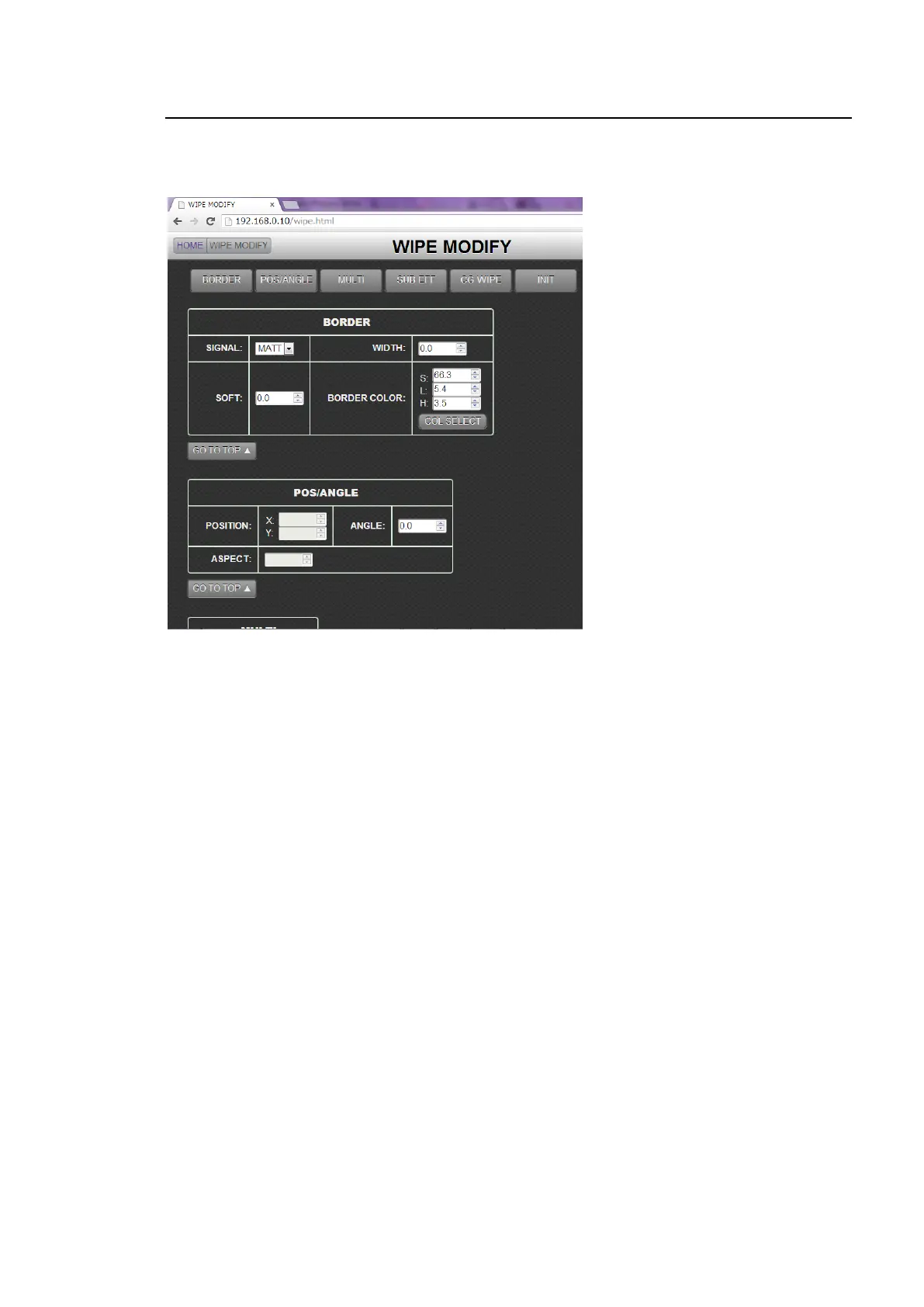

21-6. WIPE MODIFY

Click WIPE MODIFY in the HOME screen to display the WIPE MODIFY menu page.

 See section 8-9. "Modifying Patterns."

Click a button to go to the desired menu

block.

* The WIPE MODIFY menu pages vary

depending on the selected pattern

type.
