FOR-A HVS-XT100 User Manual

19

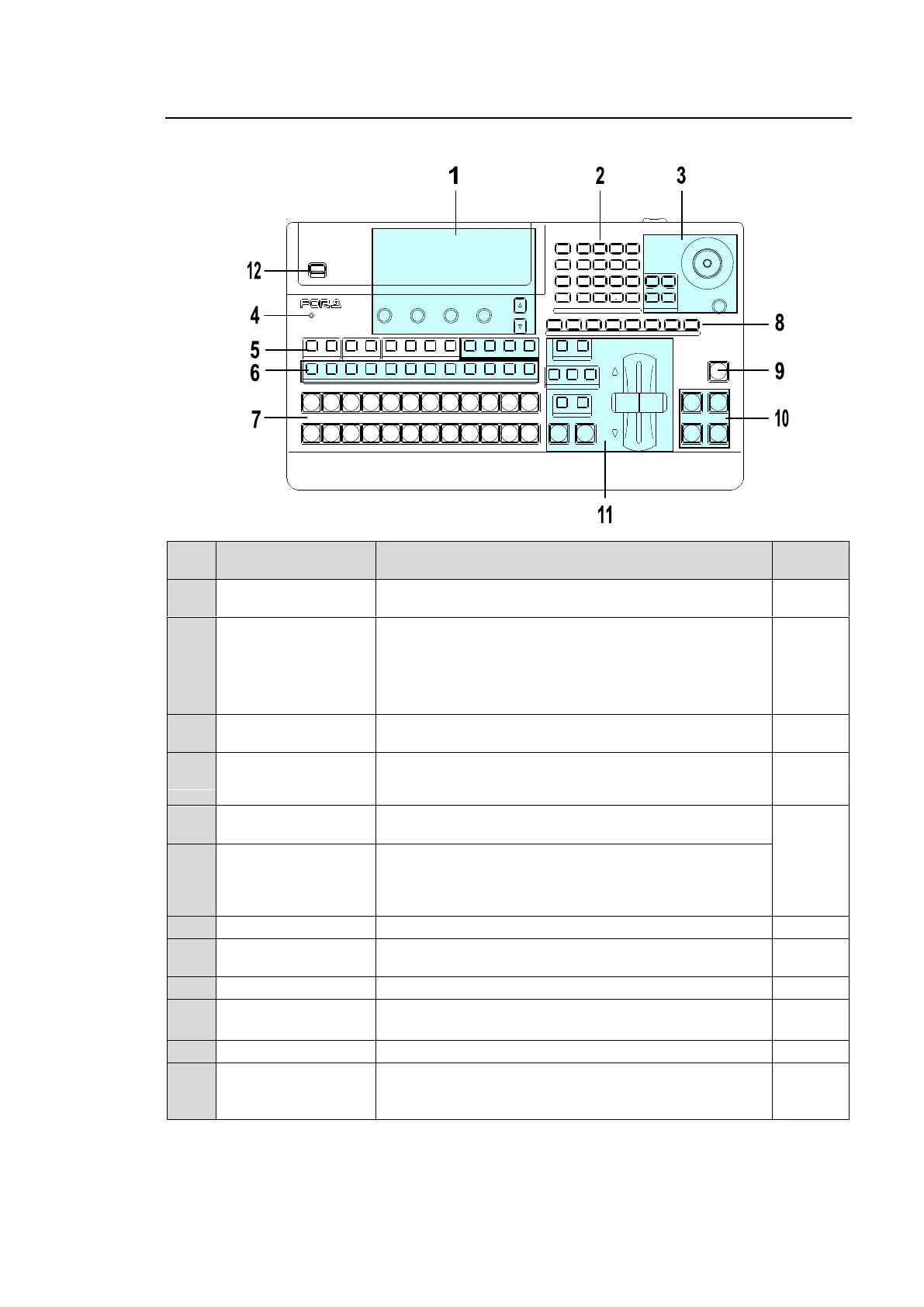

2-3. HVS-XT110
 Control Panel
No.
Name
Description
Refer to
sec.
1
Menu Control Block
Composed of the menu display, menu control
push-buttons (F1 to F4) and page up/down buttons.
4
2
SELECT/KEYPAD
Block
Multi-function keypad. Four control buttons (MENU,
DIRECT PATT, EVENT, and MACRO) on the left side
change the keypad operation mode, in which 12 buttons
are used for menu display and input, transition pattern
selection, event and macro operations.
4-1-1
4-2-3
8-8-3
15
16
3
JOYSTICK Block
Used to set position, size or color settings in the specific
menu parameters.
4-2-4
4
ALARM indicator
Indicates fan alarm status. Normally unlit, the indicator
blinks red when an alarm occurs. In such case, power
off the system and consult your FOR-A supplier.
18-6-1
5
BUS SELECT Block
Used to select a bus, then to select a video in the
KEY/AUX bus (No 7).
6
7
9
13-1
6
KEY/AUX Bus
Used to select video for the bus selected in the BUS
SELECT block (No. 6).
The video can be selected from KEY/AUX bus buttons,
PGM, PREV, CLEAN and MV.
7
PGM/PST (M/E) Bus
Used to select video for the background.
5
8
USER BUTTON
User assignable buttons. Menu shortcuts or functions
can be assigned to these buttons.
14
9
BLACK TRANS
Used to perform black transitions.
8-6
10
KEY/DSK Transition
Block
Used to perform Key/DSK transitions.
8-4
8-5
11
Transition Block
Used to perform background and key transitions.
8
12
USB MEMORY
Used to connect a USB flash drive for image file import /
export or system setting backup.
(USB1.1, Type-A)
12-3
17
USB MEMORY
DIGITAL VIDEO SWITCH ER HVS-
XT
SIZE
(PU SH to DEF)
1 2 3 4 5 6 7 8
USER BUTTON
REV NOR /REV
DIRECTION
BLACK
TRANS
BKGD KEY1 KEY2
NEXT TRANSITION
MIX WIPE
KEY1 KEY2
TRANSITION TYPE
AUTO CUT DSK1 DSK2
ALARM
F1 F2 F3 F4
PAGE
1 1 1
1
2 2 2 3 4
2 3 4 5 6 7 8 9 10 11 12
KEYER DSK AUX
KEY/AUX
PGM PR EV CLEAN MV
PGM
PST
1 2 3 4 5 6 7 8 9 10 11 12
MENU AT TACH
DIRECT
PATT
DETACH
SETUP
KEY1
POSIT ION
POS ROT
2D DVE
WIPE
POS
MENU
JOYSTICK
8 9
4 5 6
STILL M ATT FILE
KEY2 DSK1 DSK2
EVENT
MACRO
1 2 3
0
CLEAR
RECALL STORE
ENTER
CK EFFECT
TRANS RATE WIPE
SELECT/KEYPAD
±
7
