FOR-A HVS-XT100 User Manual

20

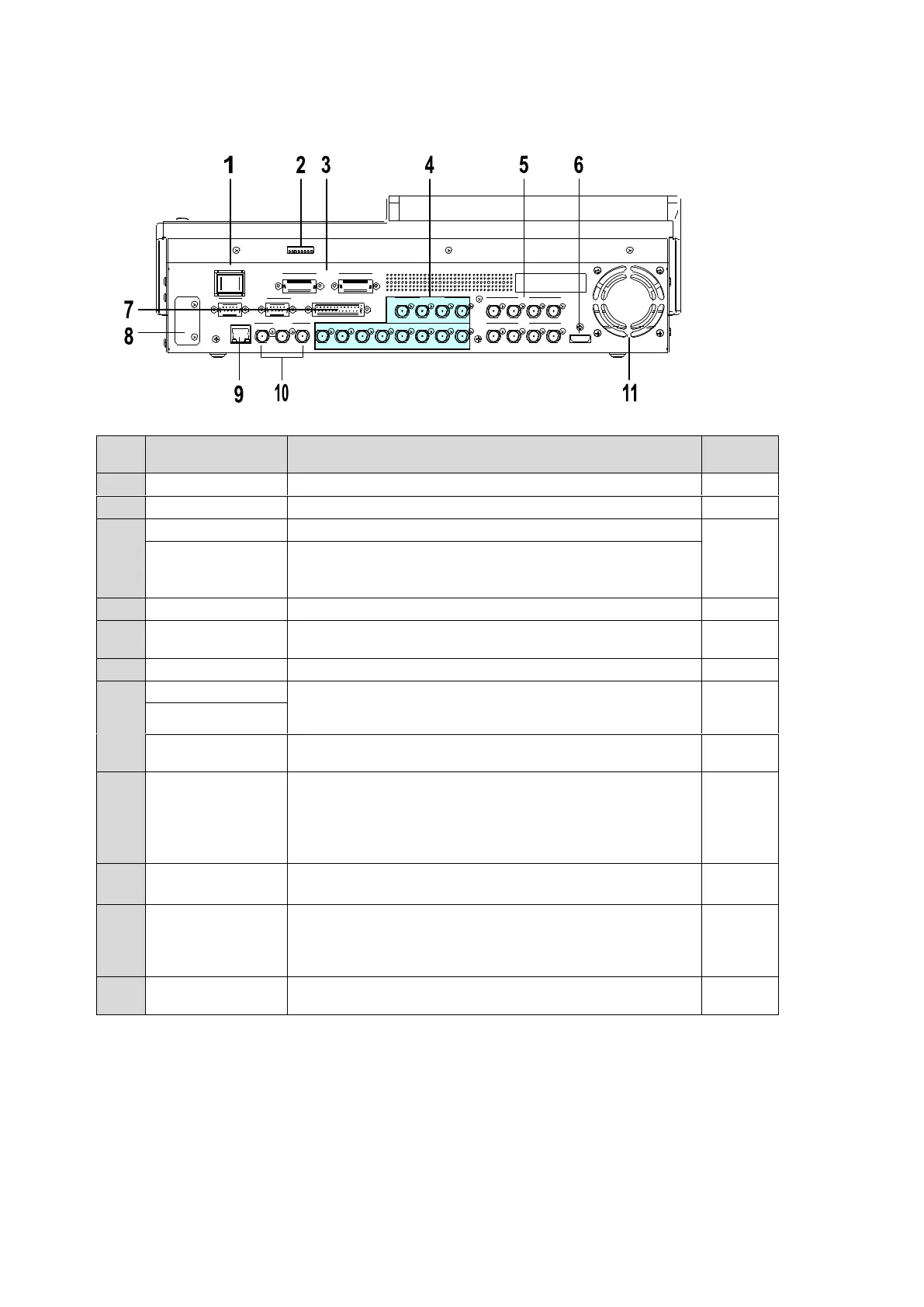

 Rear Panel
No.
Name
Description
Refer to
sec.
1
Power Switch
Switch used to turn unit power ON / OFF.
2
MODE SW
For maintenance use. Do not change.
3
DC IN1
Supply power (12 V DC) using the supplied AC adaptor.
3-3
DC IN2
Optional power supply (HVS-XT110PSM) for power
redundancy.
Supply power (12 V DC) using the supplied AC adaptor.
4
SDI INPUT
Used to input HD/SD SDI video signal. 12 inputs (BNC)
5
5
SDI OUTPUT
Used to output HD/SD SDI video signal. 8 outputs
(AUX1-8) (BNC)
6
6
HDMI
Used to output an HDMI output. (Type A connector)
6-5
7
RS-422 (1)
Used to connect peripheral devices such as
HVS-30RU,VTR/VDCP devices, Routers.
(9-pin D-sub, female)
2-4-1
RS-422 (2)
GPI IN/
TALLY OUT
Used for GPI input/output and Tally output.
(25-pin D-sub, female)
20-1-1
8
ARCNET
Optional Arcnet LAN port (HVS-XT100ARC).
One port is used for HVS-AUX bus Control Box
connection.
The other port is used for loopthrough connection. It must
be 75-ohm terminated if not looped-through.
20-5-1
9
LAN
Ethernet port used for image transport and web control
100BASE-TX/1000BASE-T (RJ-45)
12-4-1
21
10
GENLOCK
(REF IN
REF OUT)
Used to input and output a genlock signal; tri-level sync or
black burst. (BNC)
The center terminal is used for loopthrough connection. It
must be 75-ohm terminated if not looped-through.
18-3
11
Cooling Fan
Used to air cool the unit to prevent overheating. Do not
block the ventilation openings.
18-6-1
REF OUT 1 12 3 4 5 6 7 8 2 3 4REF IN
HDMI OUT
A UX
5 6 7 8
A UX
LAN
SDI INPUT
9 10 11 12
SDI I NPUT
GPI IN/TA LLY OUT
DC12V IN
1 2
MODE SW
POWER
OFF ON
GENLOCK
RS-422
1 2

FOR-A HVS-XT100 Specifications

General

Brand	FOR-A
Model	HVS-XT100
Category	Switch
Language	English
