9-2. Full Key
(1) Follow Step (1) to (4) in "Luminance Key" above.
(2) The [KEY1 - INS/SRC] menu is displayed. Turn F1 to set TYPE to FULL. The insert signal
can also be selected at INSERT.
KEY1 : TYPE :INSERT :SOURCE :INVERT : 1/4
INS/SRC : =FULL : =IN01 : =IN01 : =OFF :
See section 8-4. "KEY Transitions" and 8-10. "KEY/DSK IN/OUT Effects" for details on
transitions.
See section 9-4. "Adjusting Key Signal" for details on making fine adjustments. Edge (KEY1
and 2 only), Invert, Mask and 2D DVE effects can be applied to Luminance keys.

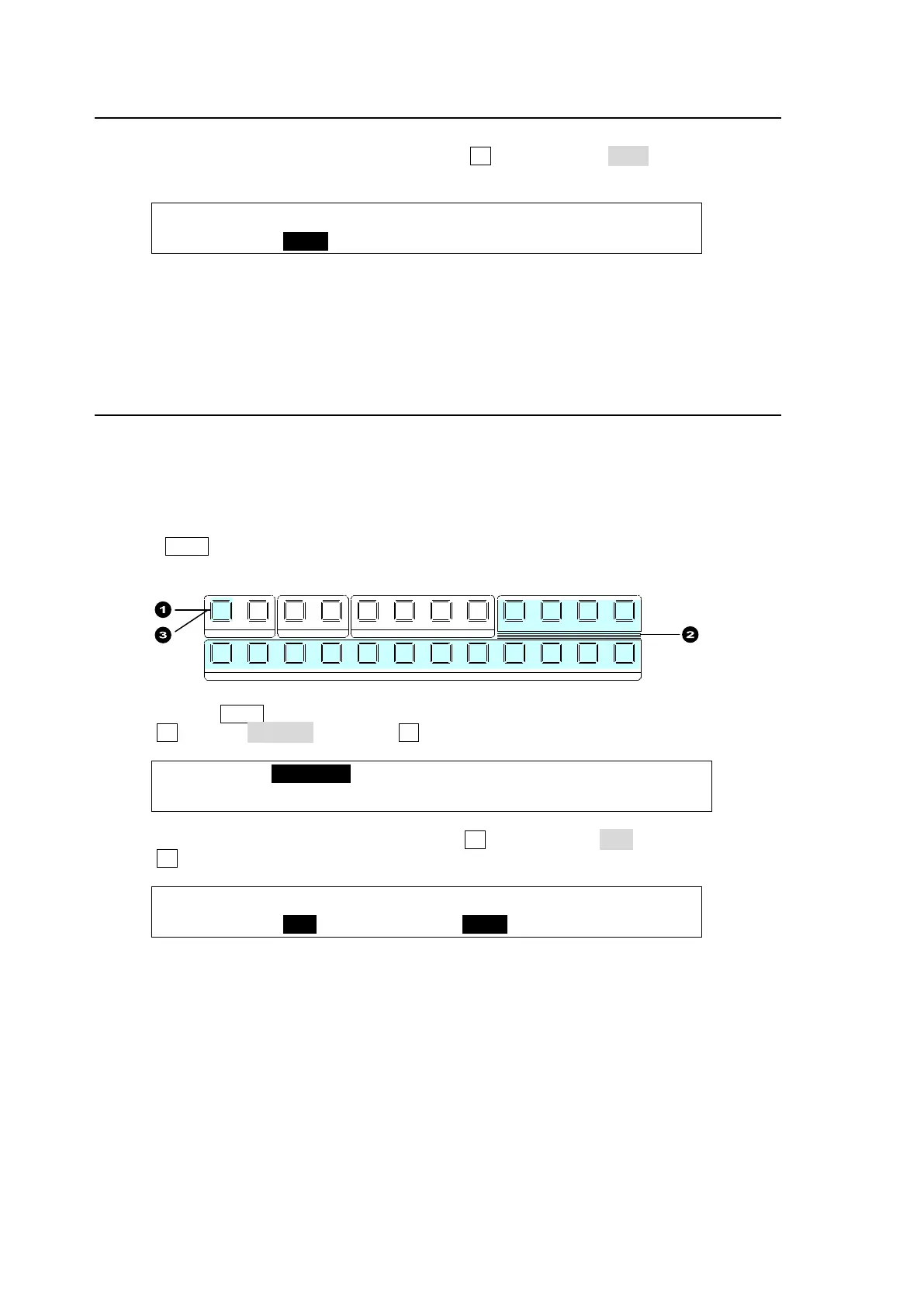

9-3. Bus Key
Bus Key uses different signals for Key Insert and Key Source. To create a Bus Key, select a Key
Insert signal and a Key Source signal in the menus. Since selecting a signal in the menu takes
time, the switcher has a KEY LINK function, which enables you to select a key source and insert
using only a source button.
See section 9-3-1. "Key Link" for details.
(1) Press KEY1 above the KEY/AUX bus.
(2) Select a signal for Key Insert in the KEY/AUX bus.
(3) Double-press KEY1 above the KEY/AUX bus to display the [KEY1 SETUP] menu.
(4) Turn F1 to select INS/SRC, and press F1 or the page down button.
KEY1 :>INS/SRC >EDGE >MASK
SETUP :>POS/SIZ >BORDER >INIT
(5) The [KEY1 - INS/SRC] menu is displayed. Turn F1 to set TYPE to BUS.
(6) Turn F3 to select a signal for Key Source in SOURCE.
KEY1 : TYPE :INSERT :SOURCE :INVERT : 1/4
INS/SRC : =BUS : =IN01 : =IN02 : =OFF :
See section 8-4. "KEY Transitions" and 8-10. "KEY/DSK IN/OUT Effects" for details on
transitions.
See section 9-4. "Adjusting Key Signal" for details on making fine adjustments. Edge (KEY1
and 2 only), Invert, Mask and 2D DVE effects can be applied to Luminance keys.
