194
21-5. WIPE PATTERN
Click PATTERN in the HOME screen to display the WIPE PATTERN menu page.
This page allows you to easily assign transition patterns to background and key buses.
See section 8-8-1. "Selecting a Pattern."

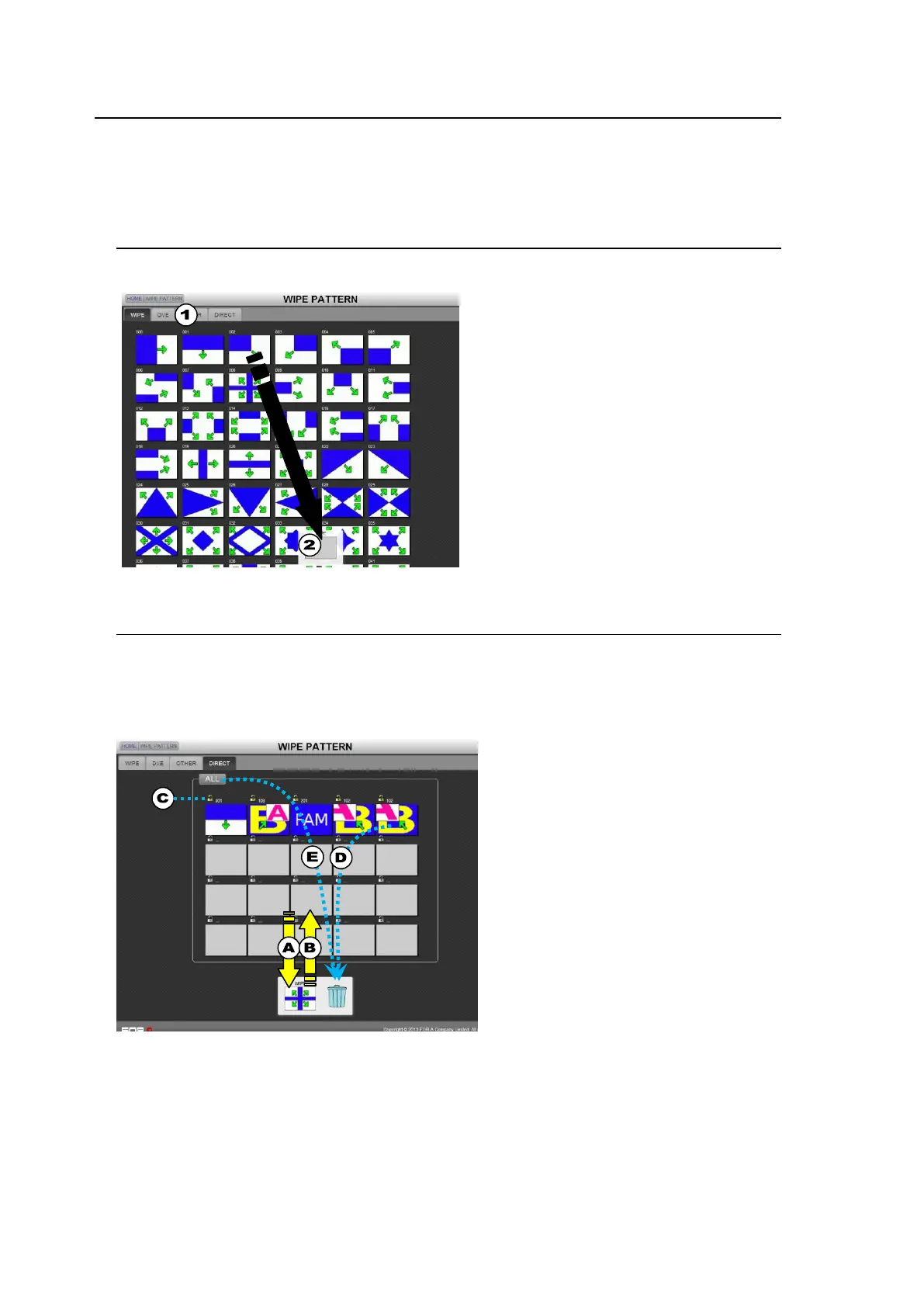

21-5-1. WIPE PATTERN - WIPE/DVE/Other
The WIPE, DVE and Other tabs allows you to assign patterns to buses.
(1) Click a tab to select the pattern type.
(2) Drag a pattern and drop it onto the desired
bus icon.
21-5-2. WIPE PATTERN - DIRECT
Clicking the DIRECT tab in the WIPE PATTERN menu page, or WIPE in the HOME screen
displays the following screen, in which patterns can be saved to and deleted from the
DIRECT pattern list, and be easily assigned to buses.
See section 8-8-3. "Direct Pattern."
(A) To select a WIPE pattern, drag & drop a
pattern to the WIPE box in the bottom of
the screen.
(B) To add a pattern to the DIRECT pattern
list, drag the currently selected pattern
and drop it in the DIRECT pattern list.
(C) To lock or unlock each pattern in the list,
click the Lock icon.
(D) To delete a pattern from the list, drag &
drop the pattern to the Recycle Bin (Trash
Box).
(E) To delete all patterns from the list, drag &
drop ALL to the Recycle Bin (Trash Box).
