9-3-1. Key Link
A Key Source signal can be selected concurrently when a Key Insert signal is selected if KEY
LINK is on. The INSERT/SOURCE signal pairs for Bus keys are automatically set once they
are selected for a key. To change signal assignment, select the INSERT/SOURCE signal pair
again for the key or another key. The same assignments are shared among all keys of
KEY1-2 and DSK1-2.
When Using the Key Link:
(1) Select a key among KEY1-2 and DSK1-2.
(2) Select a signal for KEY INSERT in the KEY/AUX. This allows users to set a key signal
pair: KEY INSERT and KEY SOURCE signals.
If key links do not work properly, set LINK to ON in the [SETUP- FUNCTION -
M/E_KEY] menu.
9-3-2. KEY INSERT MATT
In addition to the bus matt signal, the internally generated MATT can be used as key fill.
KEY INSERT MATT is a dedicated matte signal for keys and it is not the same as BUS
MATT. The different colors can be set in KEY INSERT MATT for each key.
(1) Set up a Bus Key, then press F2 in the [KEY1 - INS/SRC] menu to set INSERT to InMAT
(Insert Matt).
KEY1 : TYPE :INSERT :SOURCE :INVERT : 1/4
INS/SRC : =BUS : >InMAT: =IN02 : =OFF :
(2) Press the page down button to go to PAGE 4.
(3) Turn F4 and select a color among eight standard colors, then press F4.
To use a different color, turn F1, F2, and F3 to adjust the color.
See section 5-9-1. "Setting the Matte Color."
KEY1 : MATT COLOR :RECALL : 4/4
INS MATT:S=67.3 L=15.8 H=257.5: >RED :
Key Links cannot be applied to KEY MATT.

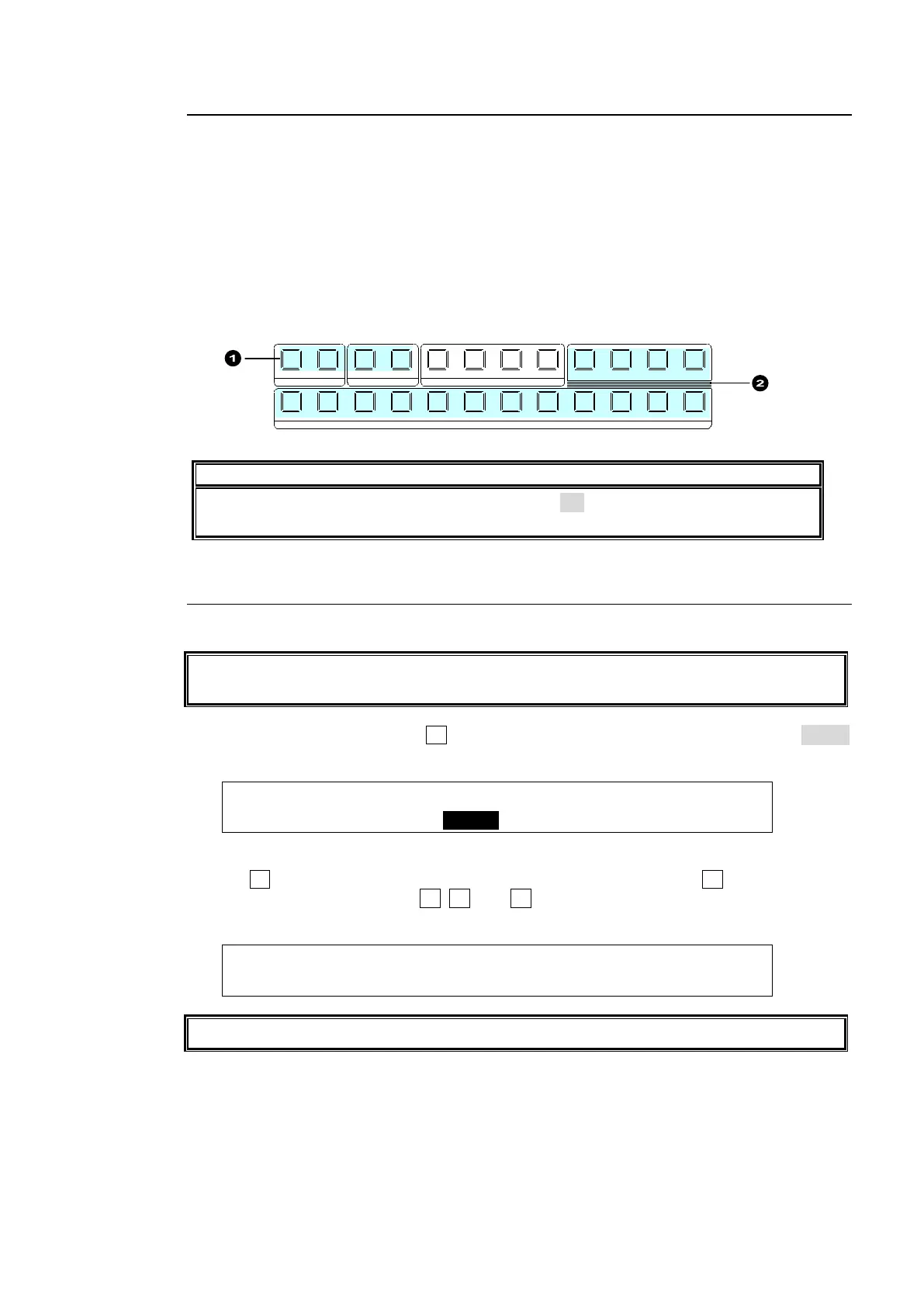

1 1 1
