66

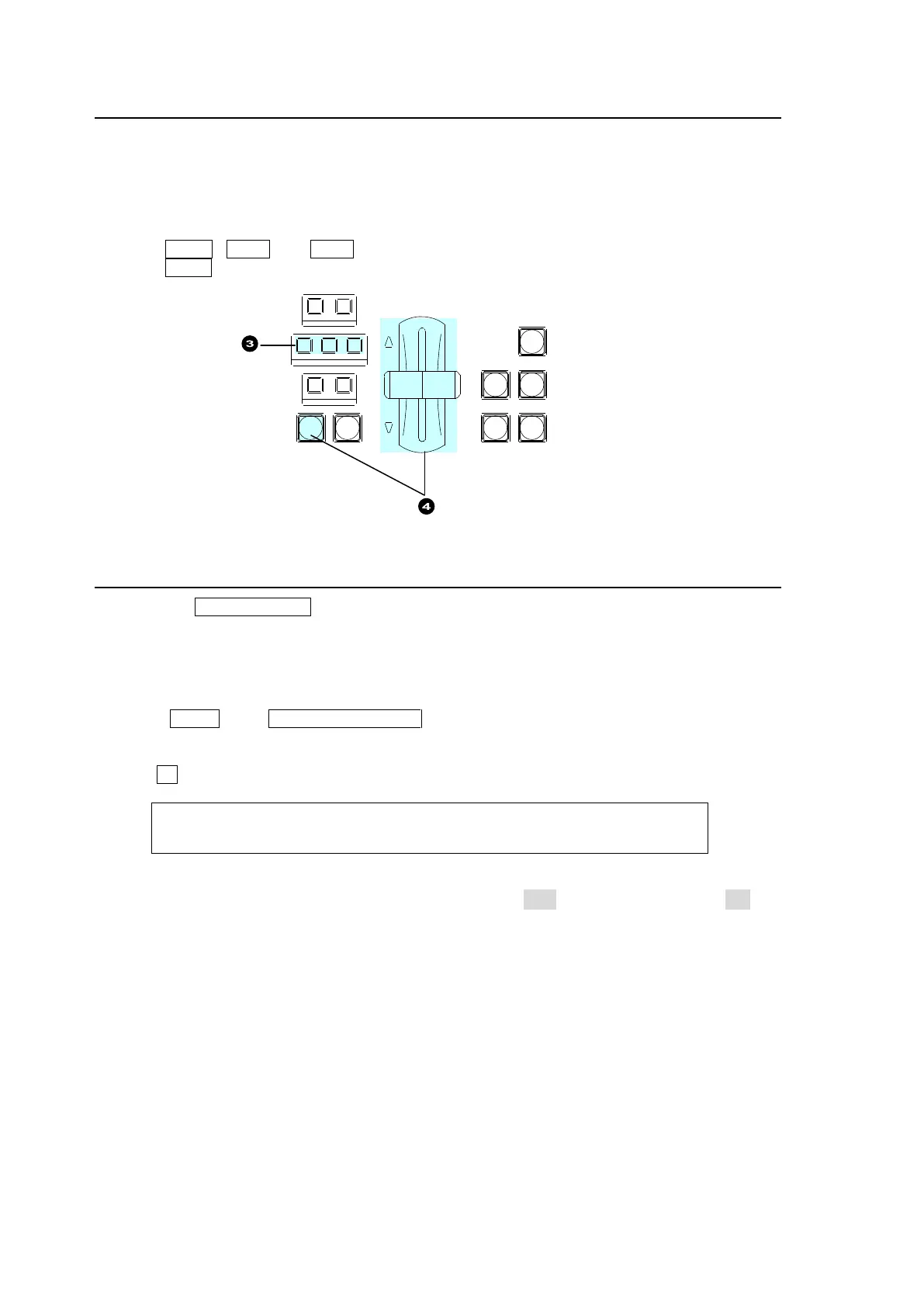

8-6. Simultaneous BKGD and Key Transitions
Background and key transitions can be performed simultaneously. This chapter explains how to
perform simultaneous BKGD, KEY1 and KEY2 transitions as an example.
(1) Set transition types for the background, KEY1 and KEY2 to MIX or WIPE, respectively.
Select a pattern using the menu if set to WIPE.
(2) Set the transition rate or direction, if necessary.
(3) Press BKGD, KEY1 and KEY2 simultaneously to turn on the button lights.
(4) Press AUTO, or move the fader lever to perform a simultaneous transition.
8-7. Black Transitions
Pressing the BLACK TRANS button allows BLACK transitions to be performed. Pressing the
button initiates a fade to black of whichever source is currently on air (program output). Pressing
the button again starts another fade from black to the previous video.
BLACK transitions can be performed on the PGM output.
To Set the Black Transition Rate
(1) Press MENU then TRANSITION RATE in the SELECT/KEYPAD block to display the
[TRANS] menu.
(2) Press the page down button to go to PAGE 6.
(3) Turn F1 to set the transition rate in frames for BLACK transitions.
TRANS : RATE :ENABLE : : 6/6
To Disable the BLACK TRANS button:
Set the ENABLE item in the [TRANS] (6/6) menu above to OFF. (The default setting is ON.)
REV NOR/REV
DIRECTION
BLACK
TRANS
BKGD KEY1 KEY2
NEXT TRANSITION
MIX WIPE
KEY1 KEY2
TRANSITION TYPE
AUTO CUT DSK1 DSK2
To Next Page
