214
21-17. EXT IF
Click EXT IF in the HOME screen to display the EXT I/F menu page.
21-17-1. EXT IF - EDITOR (Option)
Click the EDITOR tab to display and set the EDITOR menu.
See section 20-4. "Editor Control (HVS-XT100ED)"
21-17-2. EXT IF - TSL TLY
Click the TSL TLY tab to display and set the TSL TALLY menu.
The TSL TALLY page allows you to set tally information when sending tallies to a downstream
devices such as a multiviewer using TSL tally protocol via RS-422.
See section 20-3. "Router Control." Ask your FOR-A reseller for details on TSL Tally
connections.
21-17-3. EXT IF - VTR/VDCP
Click the VTR/VDCP tab to display and set the VTR/VDCP menu.
See section 20-2. "VTR / VDCP Control"
Before displaying the VTR/VDCP menu page, assign a channel (VTR1-2 or VDCP1-2) to an
RS-422 port in the [SETUP - SYSTEM - RS-422] page. (VTR/VDCP controllers will not be
displayed in the menu page if channels are not assigned to ports.)
See section 21-15-1. "SETUP - SYSTEM"-RS-422.
See section 20-2-1. "RS-422 Port Settings (VTR/VDCP).

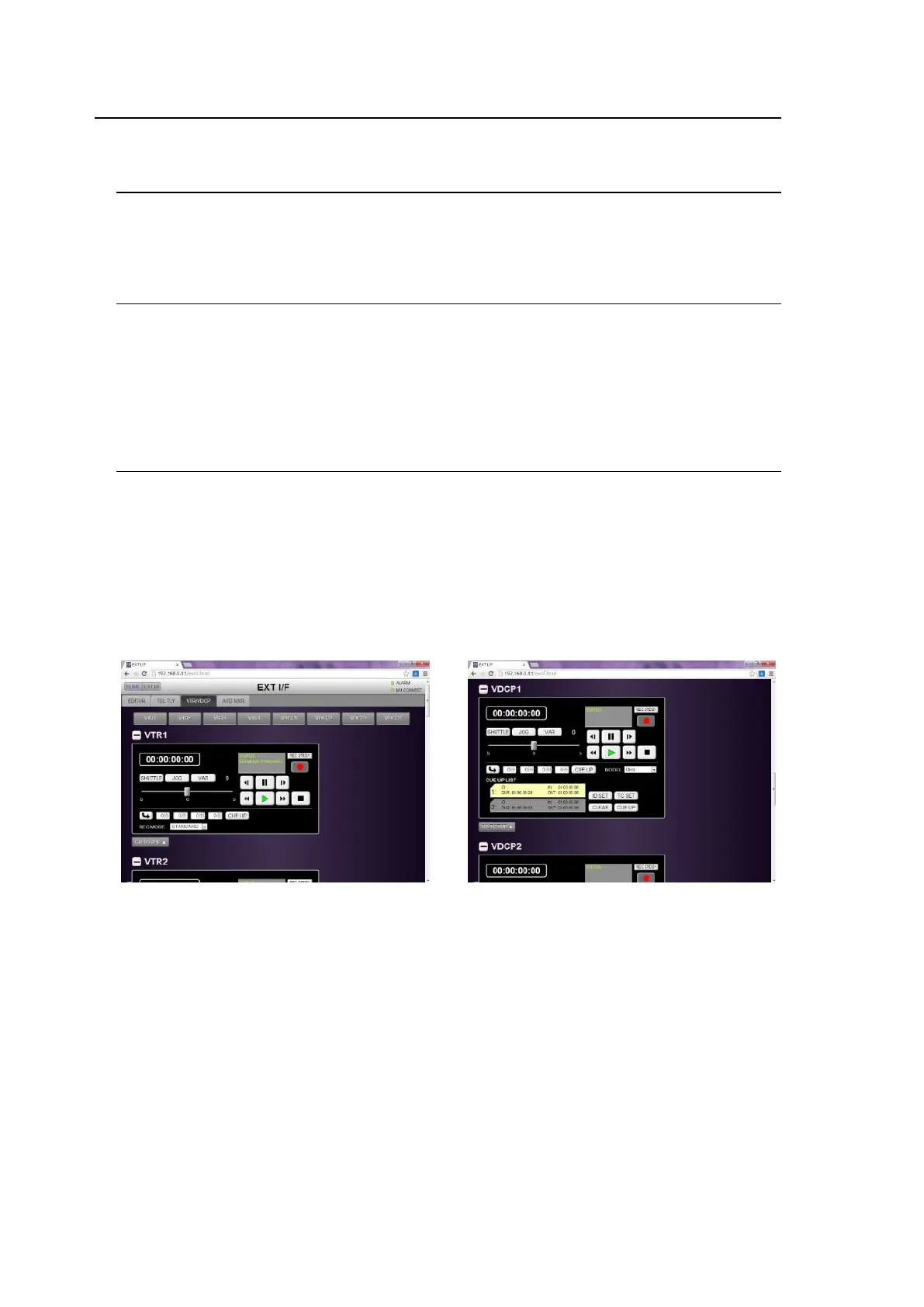

VTR channel controller VDCP channel controller
For VDCP channels, select Mira or HVS-5ECD under MODEL in the right center of the panel.
See section 20-2-2. "Controlling the VTR"- Selecting the VDCP Type.
