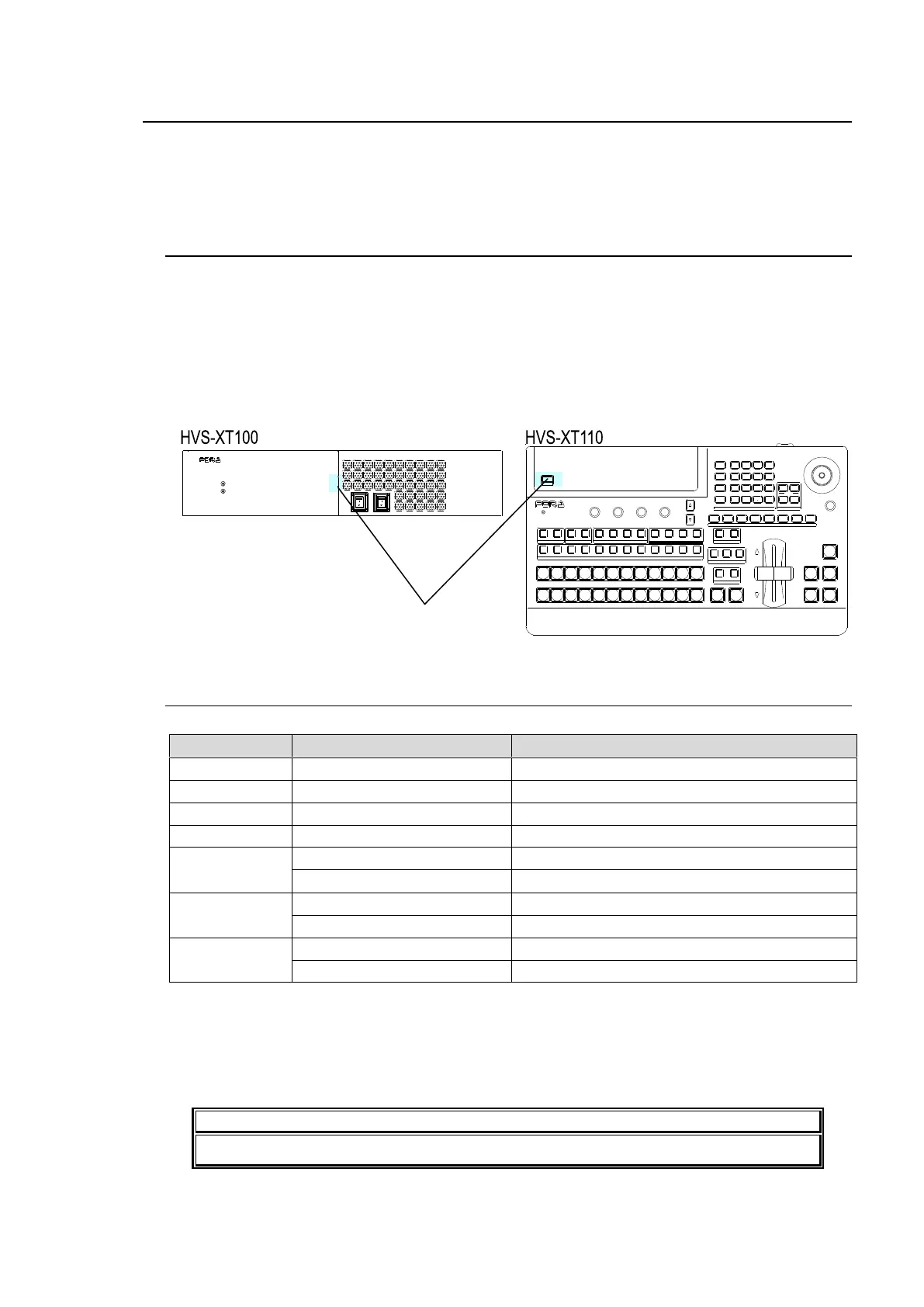

17. File Operation
The switcher is capable of storing operational data to USB flash drive and of recalling and
downloading previously saved data for application to production operations. Operational data
including system settings, wipe settings, stills, bus settings and events can be all saved to and
downloaded from the USB flash drive.
17-1. USB Flash Drive
 See "Factory Tested USB Flash Drives" in Appendix 1 for available USB flash drives.
Insertion and removal of USB drives should be performed slowly and firmly.
 The access lamp on the USB flash drive blinks while saving or reading data. Check access to
the USB flash drive before and while performing an operation. Do not remove a USB flash
drive while the access lamp is flashing. Doing so could corrupt the stored data or damage the
USB flash drive.
 The remaining storage space on the USB memory device is displayed at the bottom
right-hand side in the FILE menu.
17-2. Available Files
The following file formats can be saved to / loaded from USB flash drives.
File Extension
File Name
(*1)
File Data Description
all
DATA.all
System and all event, macro and WIPE data
sys
HVSXT100.sys
System data
mem
EVENT.mem
All event data
mcr
MACRO.mcr
All macro data
jpg
(*2)
JPEG format files (standard RGB)
STILL1.jpg to STILL2.jpg
Still 1 to Still 2 capture video in jpg format
tga
(*2)
*.tga
TARGA format files (uncompressed RGB)
STILL1.tga to STILL2.tga
Still 1 to Still 2 capture video in targa format
bmp
(*2)
Bitmap format files (uncompressed RGB)
STILL1.bmp to STILL2.bmp
Still 1 to Still 2 capture video in bitmap format
Note that file names are limited to max. 16 characters in length (ASCII code).
(*1) Files are automatically named to the correct name as shown in the table above when saving to
a USB flash drive.
(*2) When loading a jpeg, targa or bitmap file from the USB flash drive, a centered, tiled or normal
file format can be selected, in which case, a centered or tiled format image file is also saved to
the still memory in jpg, tga or bmp format.
IMPORTANT
To use USB flash drives with the switcher, format them in a FAT or FAT32 file system.
USB port
PO WER 2
O FF
ON
DIG ITAL VI DEO SW ITCH ER
POWER
ALARM
PO WER 1
USB
HVS-XT100
USB MEM ORY
DIGITAL VIDEO SWITCHER HVS-
XT
SIZE
(PUSH to DEF)
1 2 3 4 5 6 7 8
USER BUTT ON
REV NOR/REV
DIRECTION
BLACK
TRANS
BKGD KEY1 KEY2
NEXT T RANSITION
MIX WIPE
KEY1 KEY2
TRANSIT ION TYPE
AUTO CUT DSK1 DSK2
ALARM
F1 F2 F3 F4
PAGE
1 1 1
1
2 2 2 3 4
2 3 4 5 6 7 8 9 10 11 12
KEYER DSK AUX
KEY/AUX
PGM PR EV CLEAN MV
PGM
PST
1 2 3 4 5 6 7 8 9 10 11 12
MENU ATTACH
DIRECT
PATT
DETACH
SETUP
KEY1
POSIT ION
POS ROT
2D DVE
WIPE
POS
MENU
JOYSTICK
8 9
4 5 6
STILL M ATT FILE
KEY2 DSK1 DSK2
EVENT
MACRO
1 2 3
0
CLEAR
RECALL STORE
ENTER
CK EFFECT
TRANS RATE WIPE
SELECT/KEYPAD
±
7
