8. Transitions
Available Transitions on the M/E (PGM/PST) bus
BLACK transition: MIX
Background: CUT, MIX and Pattern transitions
KEY1 and 2: CUT, MIX and Pattern transitions
SLIDE (4-direction), SCALER and WIPE (4-direction) transitions
DSK1 and 2: CUT and MIX transitions
SLIDE (4-direction), SCALER and WIPE (4-direction) transitions
-Transitions setup by next transition bus selection
-Transitions using the AUTO button or fader lever
-More than 130 types of various preset patterns
-Simultaneous background and key pattern transitions

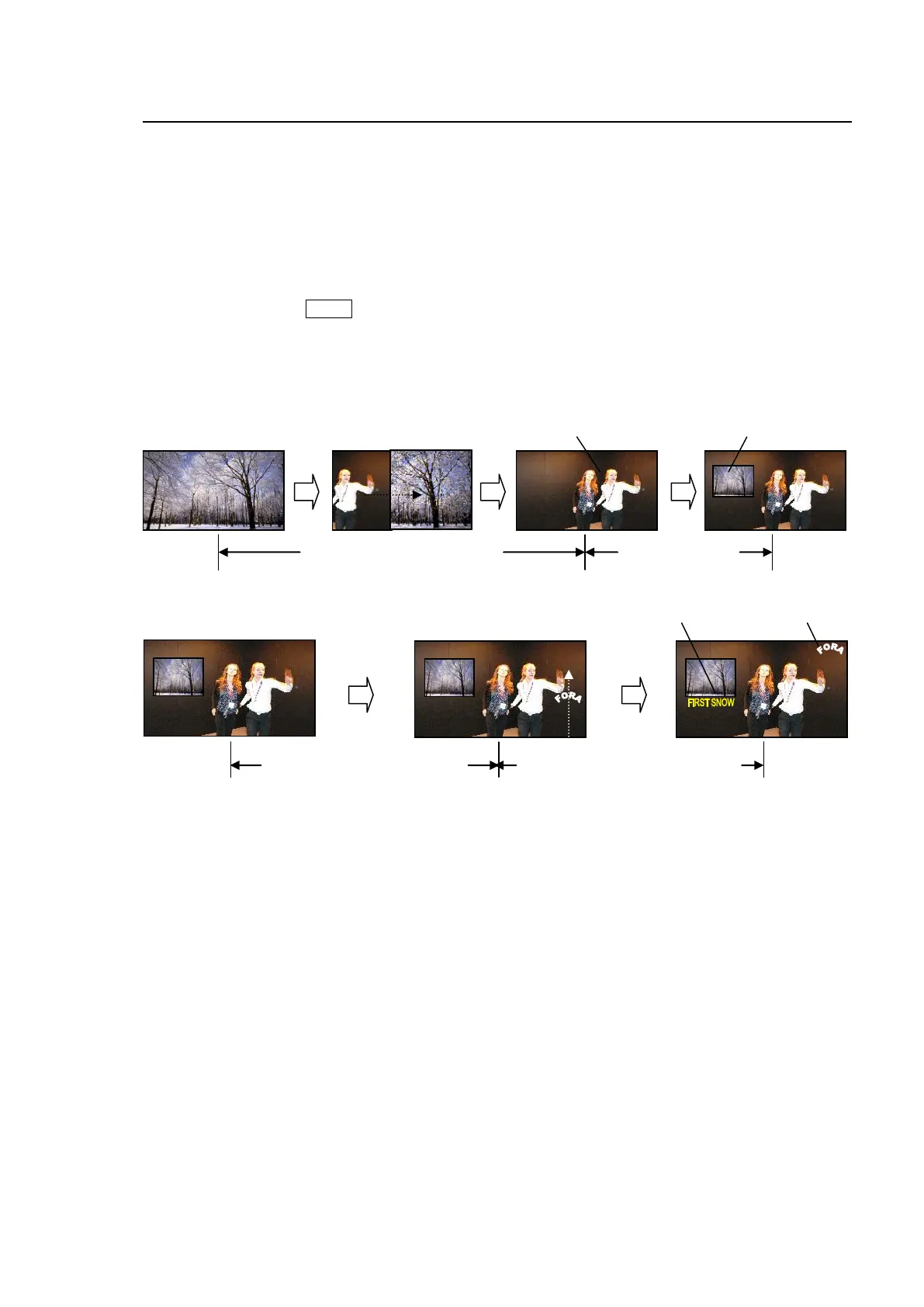

Transition Example
Other Transitions
AUX crosspoint switching with effects
See section 6-1-3. "AUX Video Switching with Effects."
Transitions using Event Recall
See section15-5. "Transitions Using Event Recall."
Logo (DSK1) sliding in
Caption (DSK2)
Logo (DSK1)
Caption (DSK2) cutting in
Background pattern transition
KEY2 cutting in
KEY2
KEY1 (chromakey)
