FOR-A HVS-XT100 User Manual

189

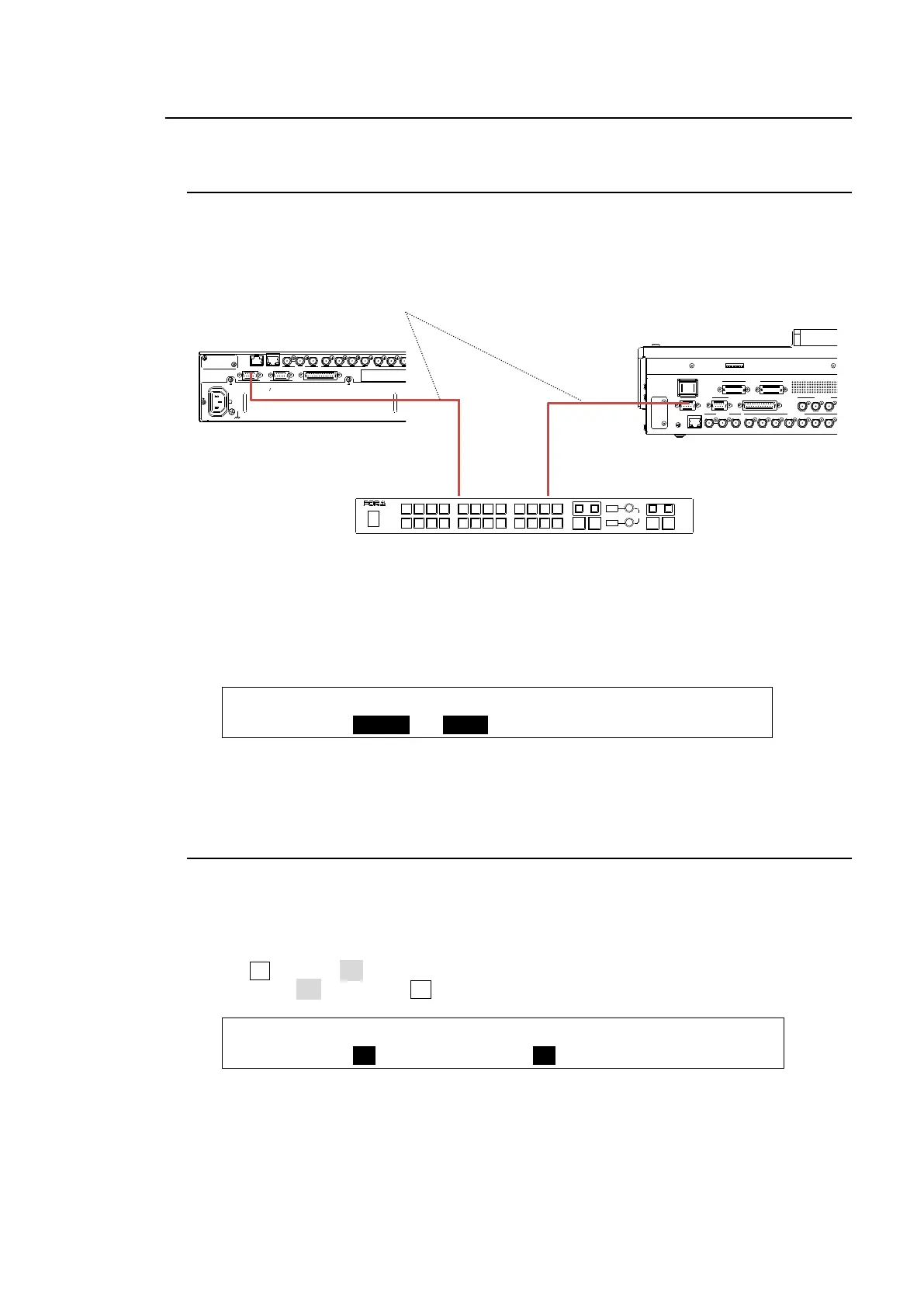

20-6. Remote Panel (HVS-30RU)
HVS-30RU, a HANABI series remote unit, can remotely control HVS-XT100 series switcher.
20-6-1. RS-422 Port Settings (HVS-30RU)
The switcher can connect to and be controlled by an HVS-30RU via the RS-422 (1) or (2) port.
Connect the HVS-30RU to the switcher with the supplied RS-422 cable (10 m)
Perform the RS-422 port settings following the procedure below.
(1) Open the [SETUP - SYSTEM - RS-422] menu.
(2) To use RS-422(1), set the menu as shown below. BAUD rate and PARITY will be
automatically set.
SYSTEM : SELECT: FUNC : BAUD :PARITY : 1/1
RS-422 : =PORT1: =30RU : =153K : =NONE :
(3) After settings are complete, reboot the switcher.
See section 19-1. "Rebooting System."
20-6-2. Assigning Sources to PGM/PST Bus Buttons
The PGM/PST bus buttons on the HVS-30RU can be assigned to signals on the switcher
using the [SYSTEM - INPUT - ASSIGN] menu.
To Use Same Settings between the Control Panel and Remote Panel:
(1) Open the [SETUP - INPUT - ASSIGN] menu. Go to PAGE 3.
(2) Turn F1 to select RU.
(3) Se LINK to ON, then press F3.
INPUT : SELECT: SHIFT : LINK : : 3/3
ASSIGN : =RU : =NORML: =ON : :
REF OUT 1
1
2 3 4 5 6 7 8
2 3 4
A
B
C
REF IN
1 2
2
AC100-240V 50/60Hz INAC100-240V 50/60Hz IN
1
TO OU
LAN GENLOCK SDI I NPUT
RS-422 GPI IN/TALLY OUT
HDMI OUTAUX
HVS-XT100 rear side
REF OUT 1 12 3 4 5 6 7 8 2 3 4REF IN
HDMI OUT
A UX
5 6 7 8
A UX
LAN
SDI INPUT
9 10 11 12
SDI I NPUT
GPI IN/TA LLY OUT
DC12 V IN
1 2
MODE SW
POW ER
OFF ON
GENLOCK
RS-422
1 2
HVS-XT110 rear side
HVS-30RU
RS-422 Supplied cable 10 m
PGM
PST
12117 10986431 2 5
ON
POWE R
OFF
1 2 3 4 5 6 7 8 9 10 11 12
AUT O CUT KEYER DSK
1 2
RATE
1 2USER B UTTON
MIX
WIPE
RATE
HVS -300H S
PUSH B OTH
to MEN U
DIGITAL VIDEO S WITC HER
PATTERN
