199

21-10. SUB EFF

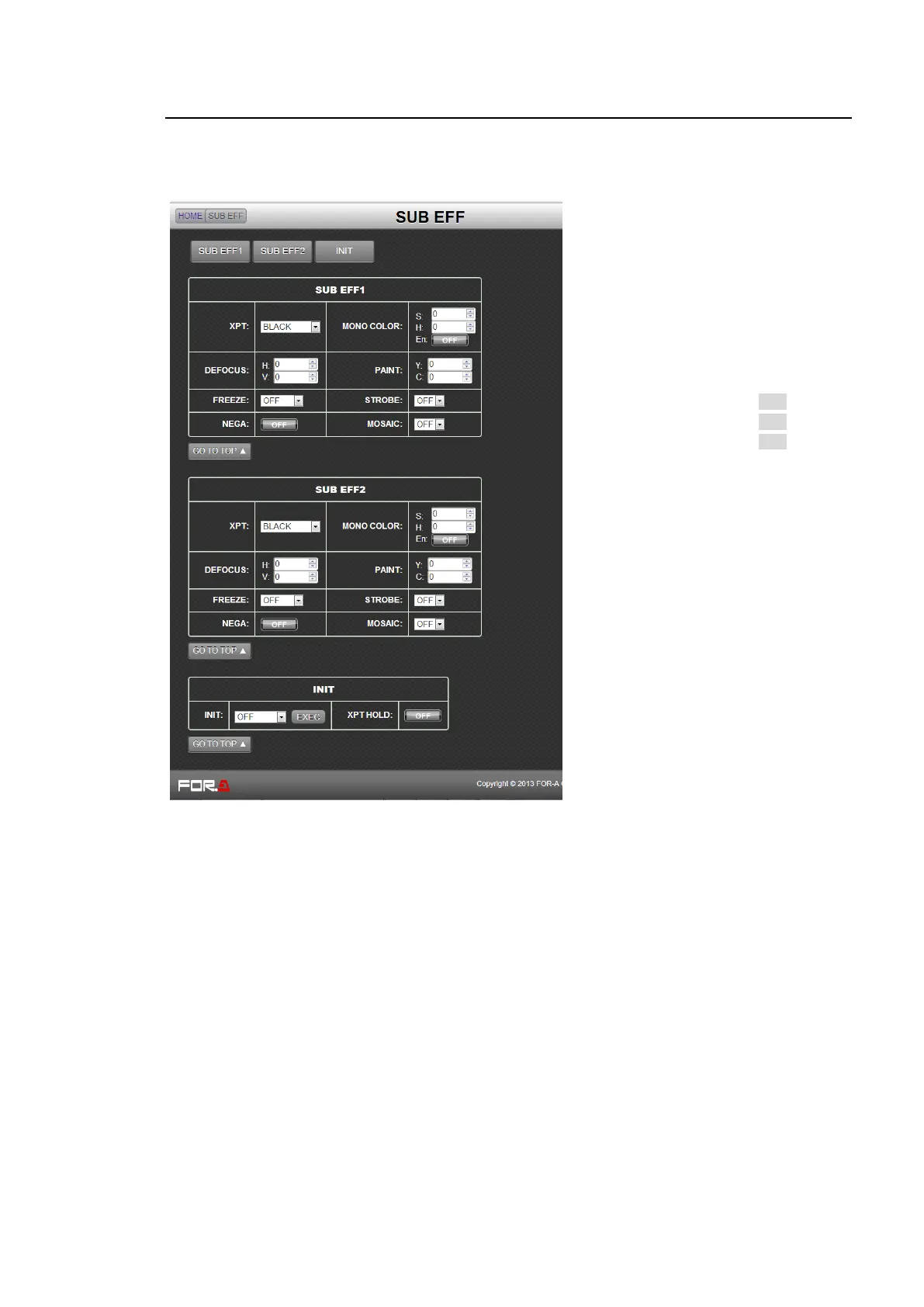

Click SUB EFF in the HOME screen to display the SUB EFF menu page, in which two SUB

EFFECT channel images can be set.

 See section 11. "SUB EFFECT Channel."

Click a button to go to the desired menu

block. See the operation manual main

pages for details on each function.

SUB EFF1

SUB EFF2

 See the following sections.

XPT

11-1

MONO

11-2

DEFOCUS

11-3

PAINT

11-4

FREEZE, STROBE

NEGA, MOSAIC

11-5
