203

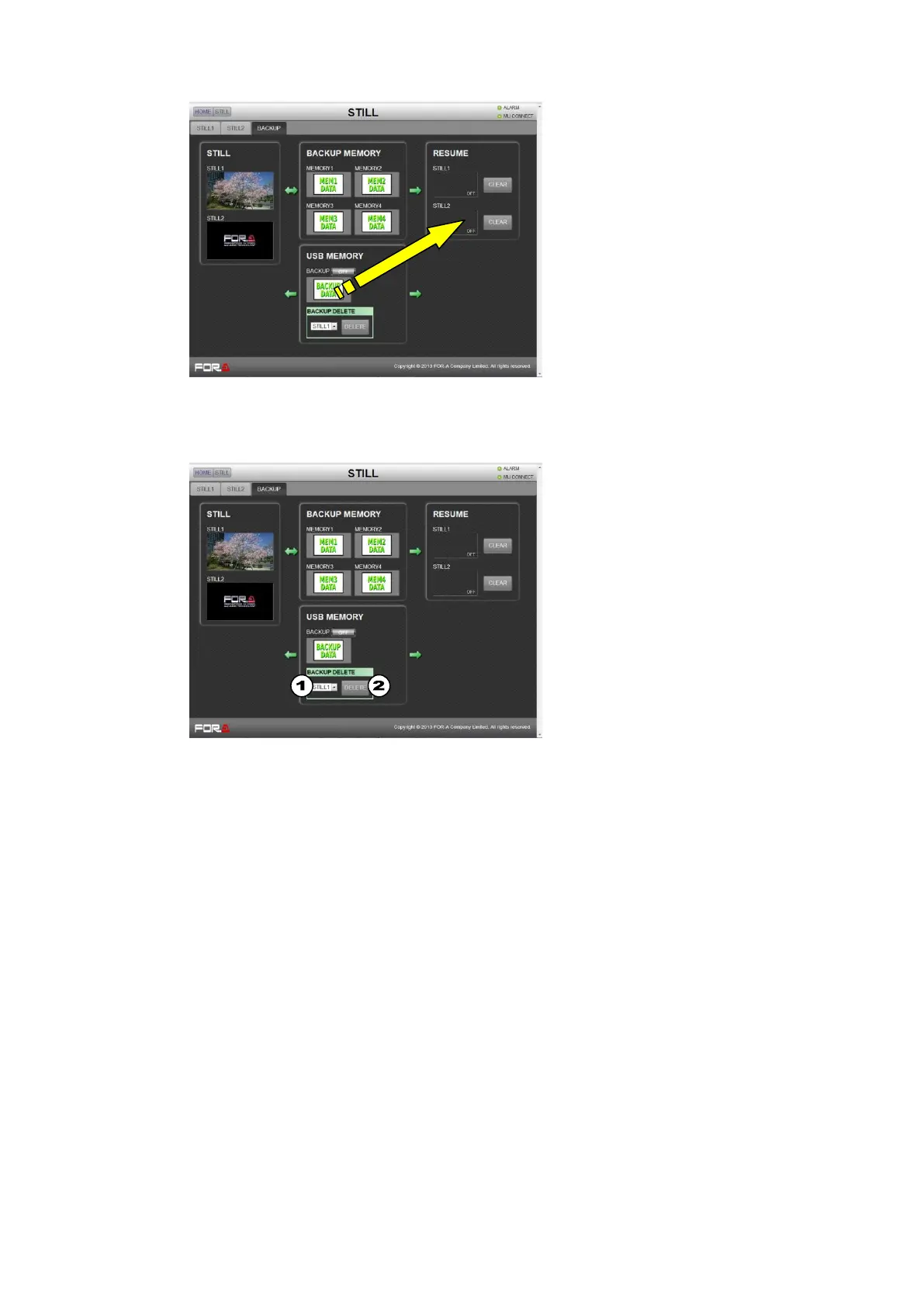

To Load Data Automatically (at startup)

Loading data to STILL1-2 or CLIP1-2

Drag and drop the BACKUP DATA icon in

USB MEMORY to a RESUME memory buffer.

Loading data to INPUT STILL1-8:

Select BACKUP under STL RESUME in the

[SETUP - INPUT - SIGNAL] page.

 See section 21-15-2. "SETUP - INPUT."



To Delete Still or Clip Data

(1) Select data to be deleted.

(2) Click DELETE.

 See section 12-3-4. "Deleting Backup Data."
