219
There are two ways to switch crosspoints on the GUI depending on the CONTROL PANEL
setting.
- Specify each crosspoint (CONTROL PANEL setting: DIRECT)
- Use the TAKE function (CONTROL PANEL setting: PRESET)
Crosspoint Switches through each crosspoint specifycation (CONTROL PANEL
setting: DIRECT)

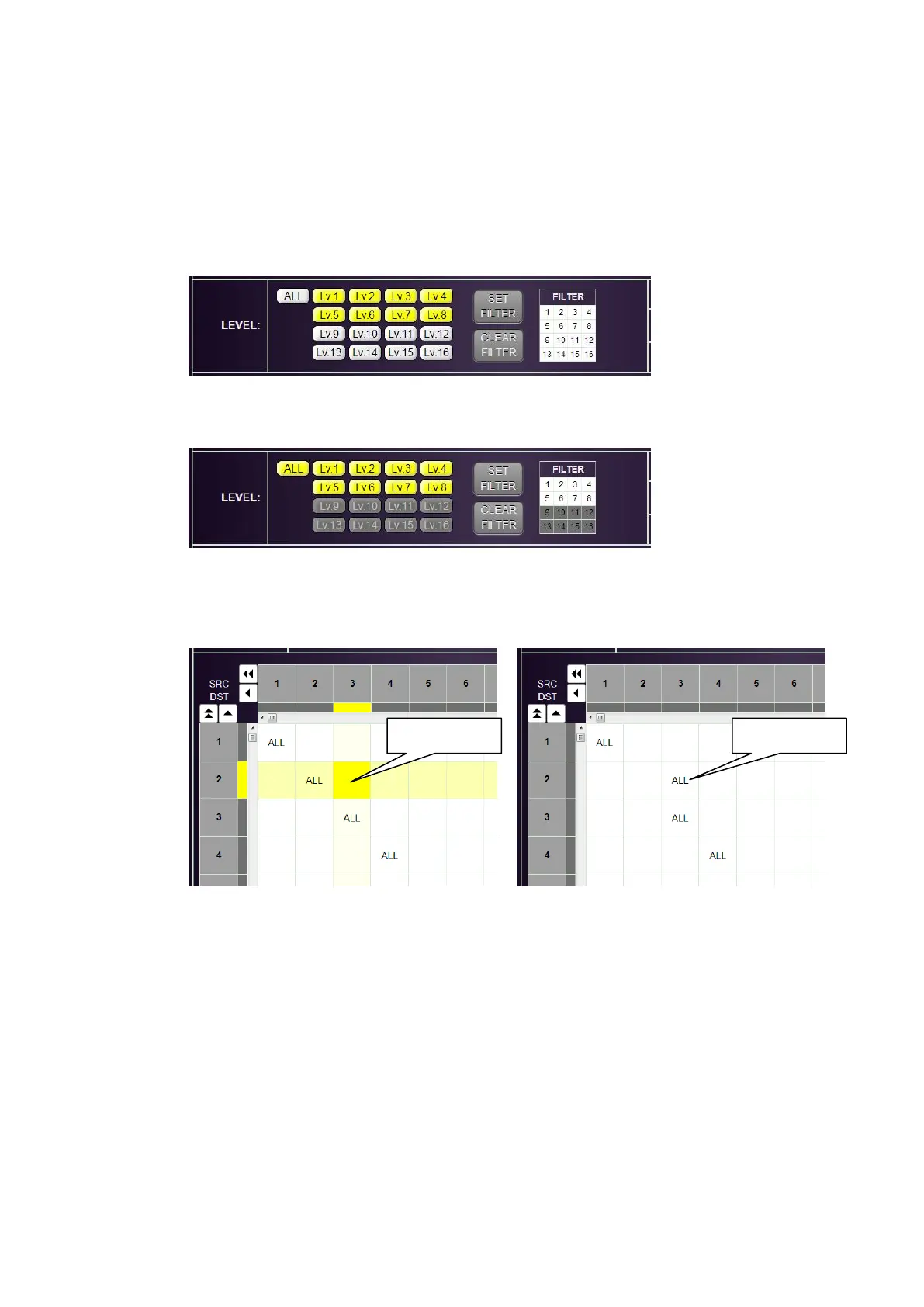

(1) Set the desired level(s) to ON.
* The FILTER function allows you to select levels to be hidden as shown below.
SET FILTER: Displays only the selected levels.
CLEAR FILTER: Clears filtering.
(MFR Series routers support Level 1-8.)
(2) Click to select a crosspoint.
(3) Click the crosspoint again to enable the selection.
(4) To unselect the crosspoint, click a Destination number.
(Clicking a Destination number without selecting a crosspoint will change the displayed
grid area.)
