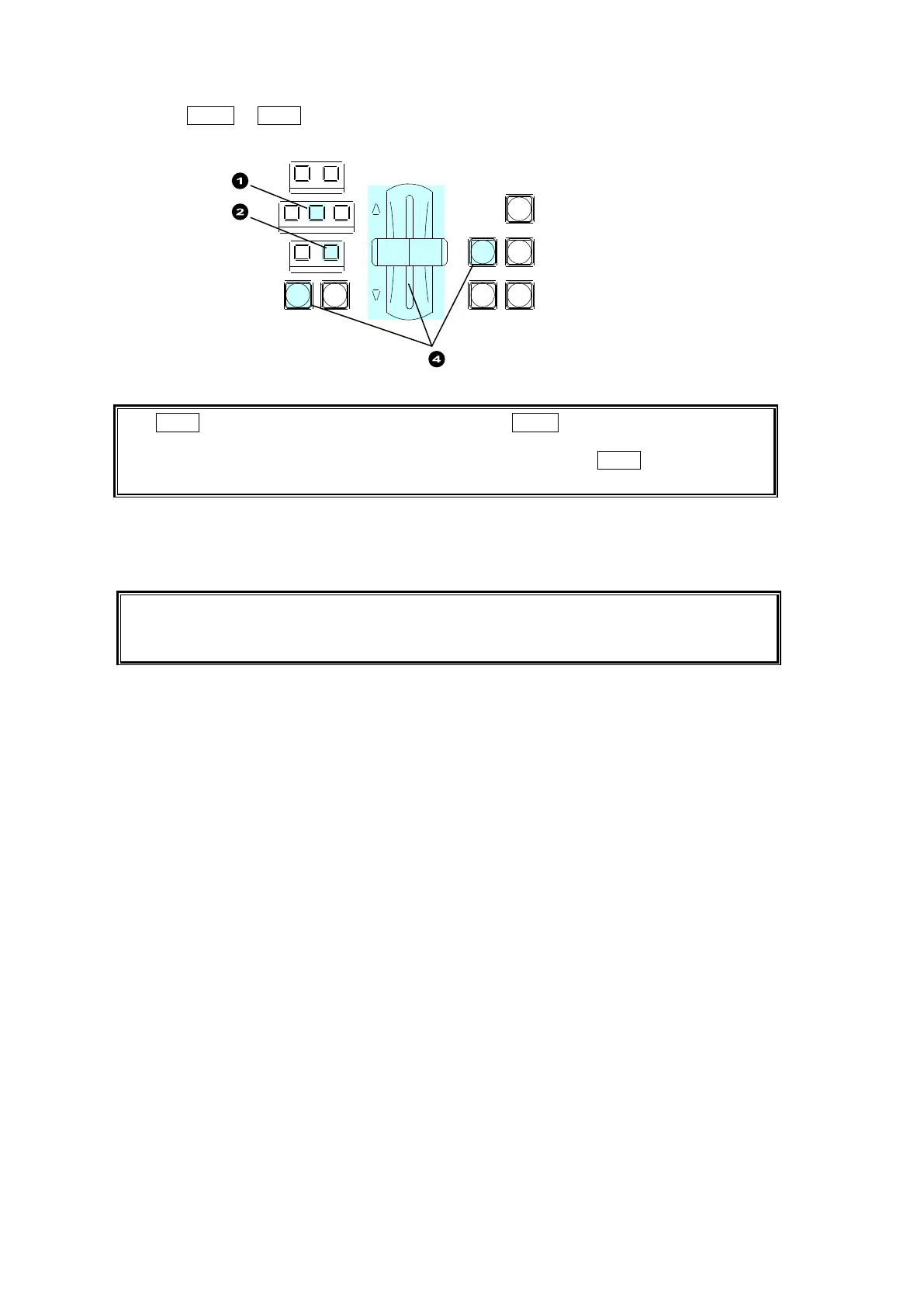

(4) Press AUTO or KEY1, or move the fader lever to perform the pattern transition.
The KEY1 transition button behaves the same as the AUTO button when selecting KEY1
for the next transition. For example, if MIX is set as the KEY1 transition type under the
NEXT TRANSITION, the KEY1 mix transition is performed when KEY1 is pressed and a
KEY1 wipe transition is performed if WIPE is set as the transition type.
See section 8-8. "Pattern (WIPE) Transitions" for details on WIPE transitions.
See section 8-11-2. "Transition Rate" for details on the transition rate.
See section 8-11-3. "Transition Limit" for details on the transition limit.
Note that when performing pattern transitions with a DVE pattern (No. 100 -137) for KEY1
or KEY2, all 2D DVE menu settings are disabled.
See section 9-8 "DVE Effect on KEY/DSK."
USER Transition
Press a user button, to which a KEY1 effect transition (scaler, slide in/out, etc.) is assigned, to
insert the KEY1 image on the M/E program video.
See section 8-10-2. "USER Transitions" for details.
