73

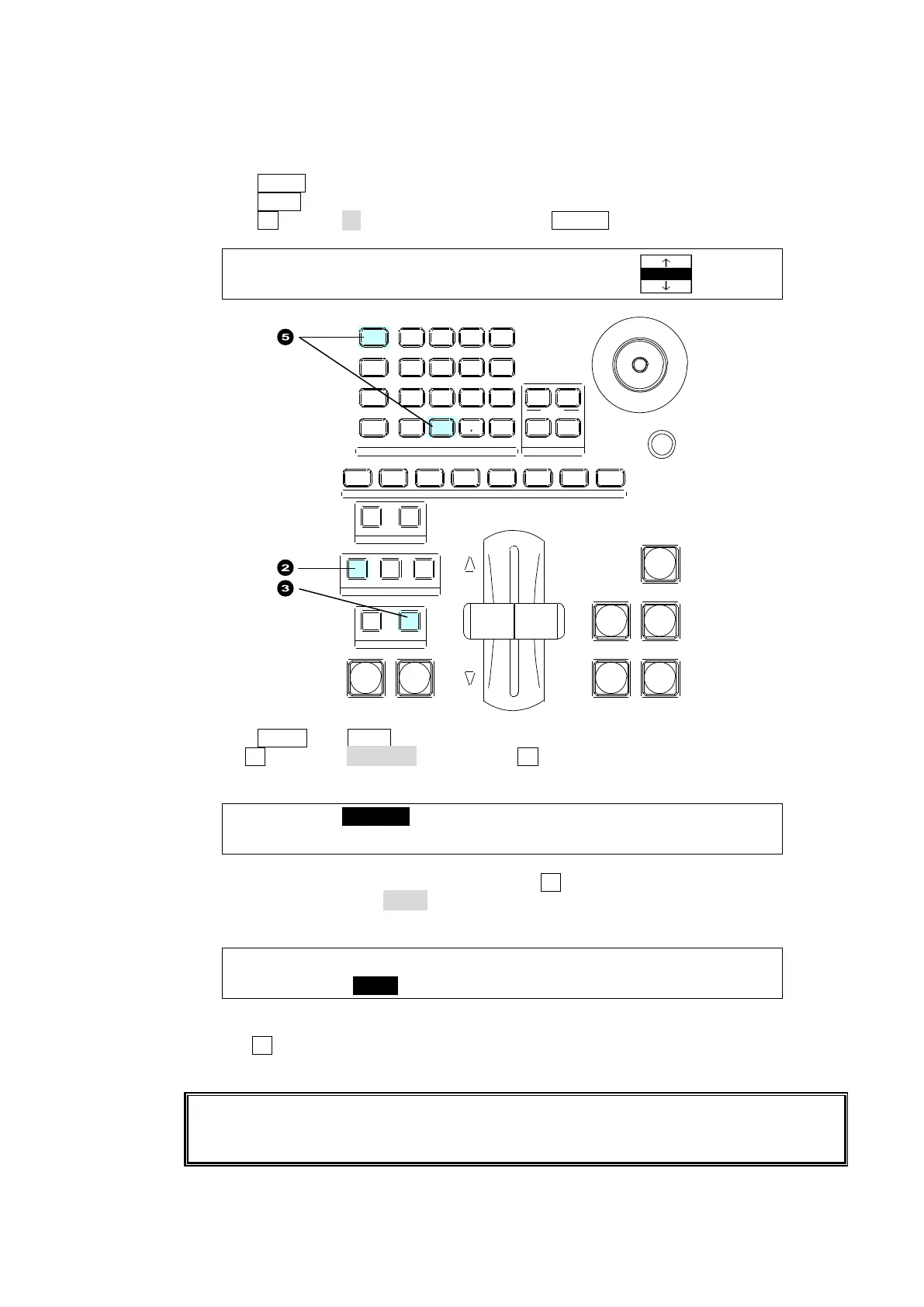

Modify Pattern 20
This modification example adds a border to the background transitions using Pattern 20.
(1) Select a desired signal on the PST bus.
(2) Press BKGD in the NEXT TRANSITION block.
(3) Press WIPE. The [TRANS] (1/6) menu is displayed.
(4) Press F4 to enter 20 in the keypad, then press ENTER.
TRANS : RATE :TRANS LIMIT :PAT NO : 1/6
BKGD : =30 :=100.0 =OFF := 20 :
(5) Press MENU,then WIPE in the SELECT/KEYPAD block to display the [WIPE] menu.
(6) TurnF1 to select BORDER, then press F1 or the page down button to display the
submenu.
WIPE :>BORDER >POS/ANGL>MULTI >CG WIPE
No.020 :>INIT
(7) The [WIPE - BORDER] menu appears. Turn F1 to select the signal used for the border
under SIGNAL. Select MATT in this example. Set the border width under WIDTH and
border softness under SOFT.
WIPE :SIGNAL : WIDTH : SOFT : : 1/2
BORDER : =MATT : =5.0 : =2.0 : :
(8) Press the page down button to go to PAGE 2.
(9) Turn F4 to select a border color among eight standard colors.
See section 5-9-1. "Setting the Matte Color" for details on color setting.
Modified pattern data is lost when the switcher is powered off. In addition, any modified
data is fully or partly lost when another pattern is selected. It is recommended that
important modified patterns be registered to Direct Patterns.
SIZE
(PUSH to DEF)
1 2 3 4 5 6 7 8
USER BUTTON
REV NOR/REV
DIRECTION
BLACK
TRANS
BKGD KEY1 KEY2
NEXT TRANSITION
MIX WIPE
KEY1 KEY2
TRANSITION TYPE
AUTO CUT DSK1 DSK2
MENU AT T ACH
DIRECT
PAT T
DET ACH
SE TUP
KEY1
POSITION
P OS ROT
2D DVE
WIPE
P OS
ME NU
JOYSTICK
8 9
4 5 6
STI LL MA TT FI LE
KEY2 DSK 1 DSK2
EV ENT
MA CRO
1 2 3
0
CLEAR
REC ALL S TORE
ENTER
CK EF F ECT
TRANS RAT E WIPE
SEL ECT/KEYPAD
±
7
