424 Upgrade and Maintenance Manual CX2550/60/70 M4
Cables
Connecting the SAS cable

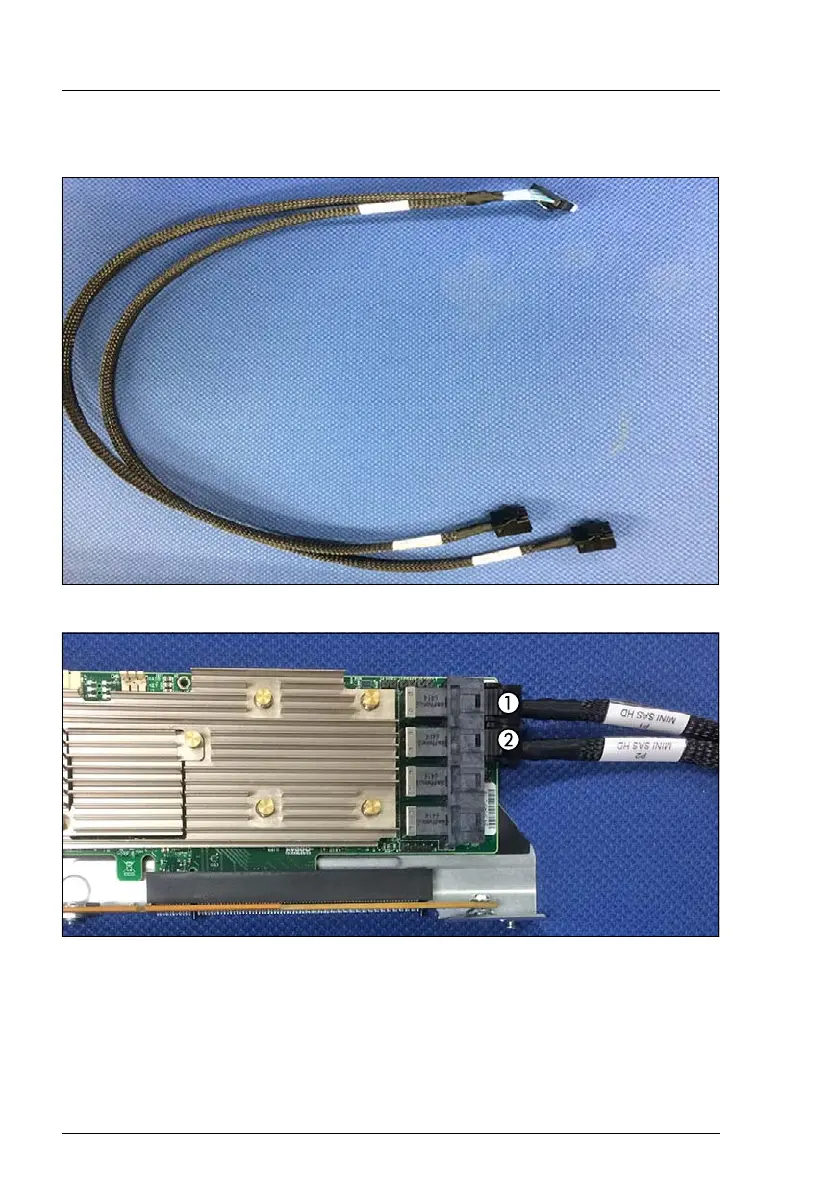

Figure 313: SAS cable
Figure 314: Connecting the SAS cable to the RAID controller
Ê Connect the P1 connector of the SAS cable to #0 port of the SAS / RAID-
controller (1).
Ê Connect the P2 connector of the SAS cable to #1 port of the SAS / RAID-
controller (2)
