Page 130 Chapter 6 - Table
6.2.5.11 Assemble and Attach the Spreader Bar Assembly
1.) Locate and remove the following Spreader Bar Assembly components from the kit:
2.) Refer to Figure 6-24. Use an 8 mm Allen wrench to loosely attach the Side Pieces (P/N
2356109) to the Spreader Bar (P/N 2356111).

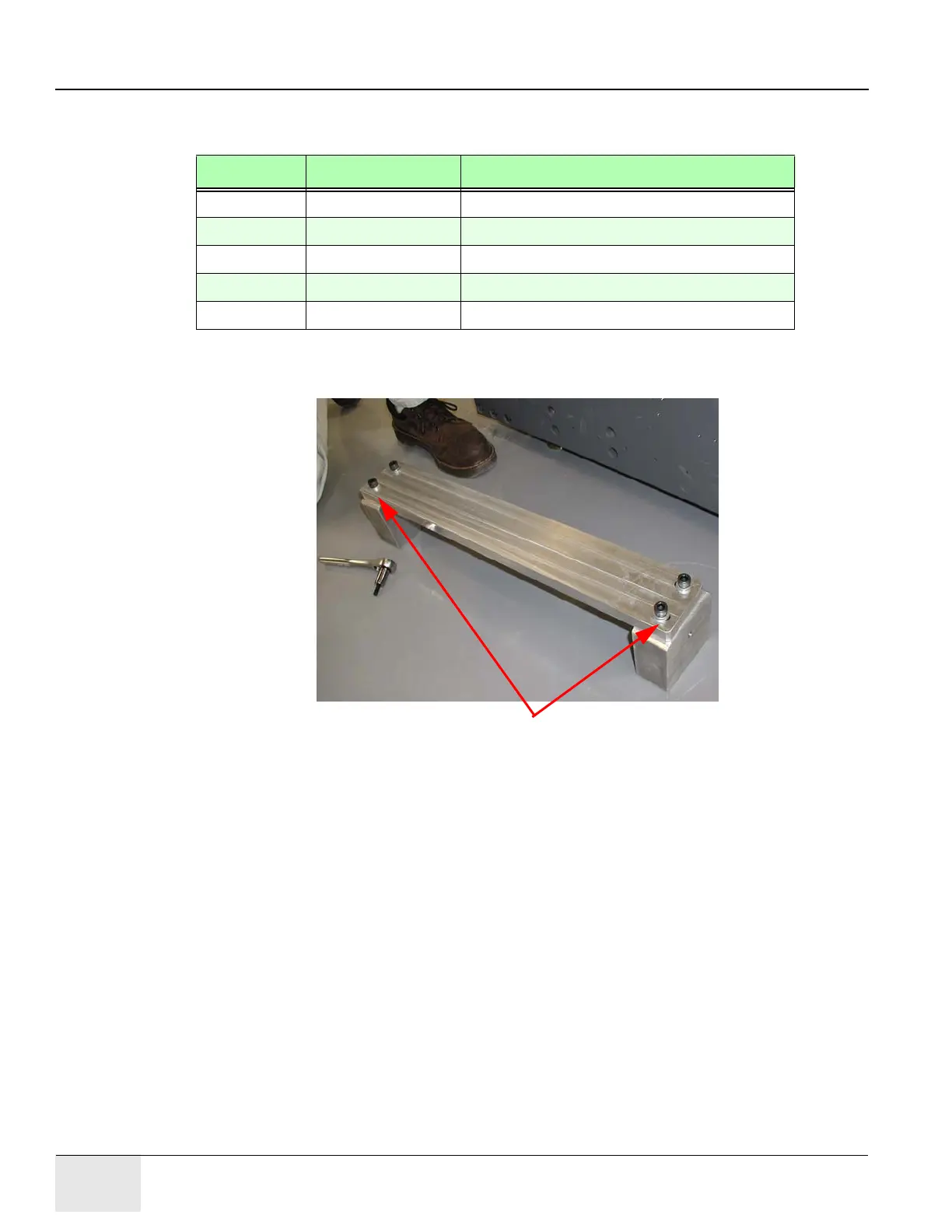

Figure 6-24: Secondary Base Spreader Bar with Side Pieces
Quantity Part Number Description
1 2356111 Spreader Bar
2 2356109 Side Pieces
4 46-328417P25 10 mm x 35 mm Socket-Head Cap Screw
4 46-328430P4 10 mm Flat Washer
4 46-328432P4 10 mm Lock Washer
Do not tighten hardware until you clamp the spreader into place.
