6.2.6.29 If a PET Plug Is Required

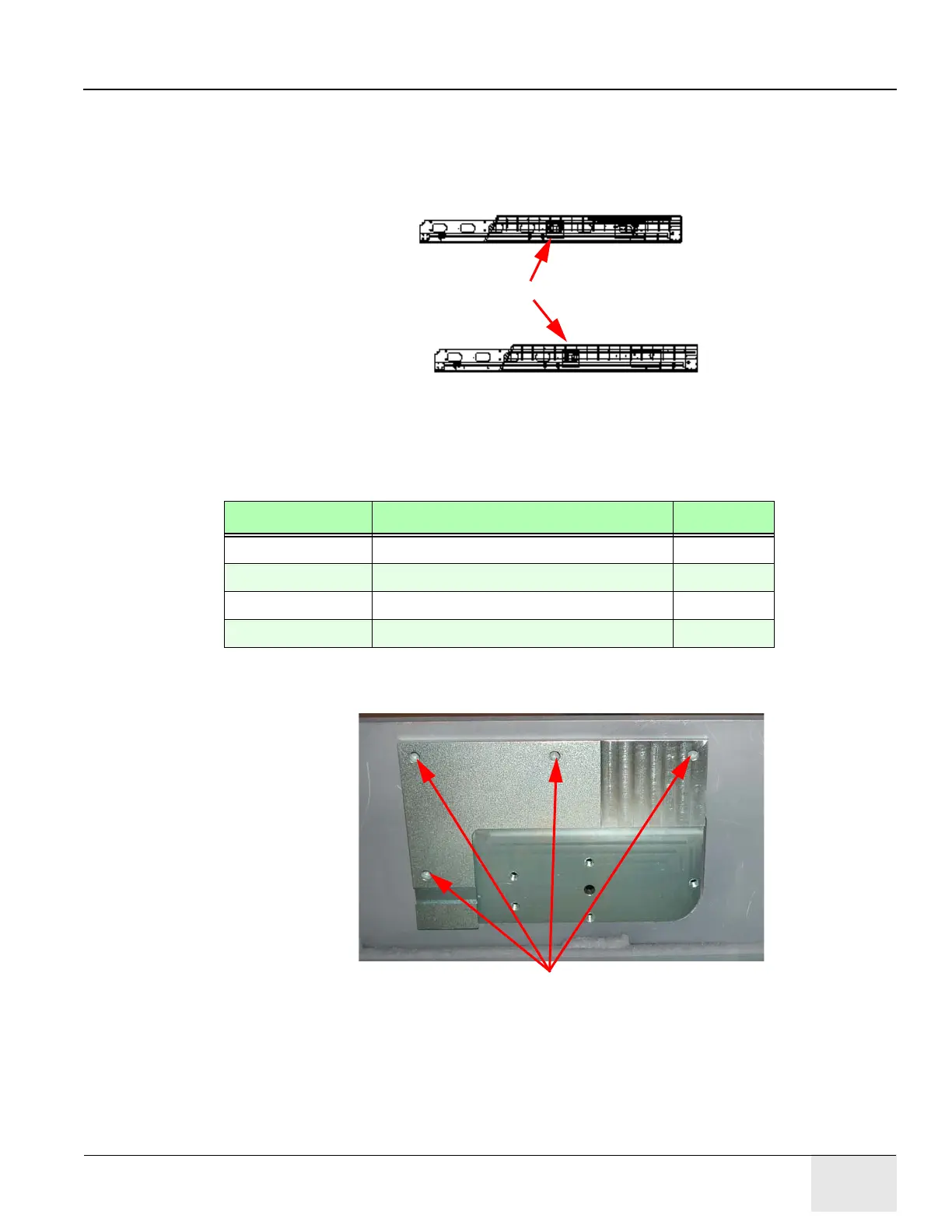

1.) Refer to Figure 6-81. If working with a Revision 0, 1, or 2 table rail, the PET Plug,
P/N 2342038, is installed in the fifth access hole from the front of the table.
Figure 6-81: Revisions 0, 1, and 2 Right Rails
2.) Refer to Figure 6-82. Use the following hardware to install the PET Plug into the hole in the rail:
a.) Insert the plug from the inside of the table.
b.) Fasten the nuts and washers to the rail exterior and screws to the rail interior.
Figure 6-82: PET Plug (Shown from Table Interior)
Part Number Description Quantity
46-312577P28 M5 x 25 mm Socket-Head Cap Screw 4
2236649 M5 Flat Washer 4
46-328432P8 M5 Lock Washer 4
46-328425P11 M5 Hex Nut 4
Revision 0 Side Rail (Seven Access Holes)
PET plug in fifth Access hole.
Revision 1 and 2 Side Rail (Five Access Holes
)
Fasten the PET plug here.
