DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Page 234 Chapter 7 - Gantry
5.) Refer to Figure 7-13. Replace and lay the cables inside the retractor. The length of each cable
that protrudes from the side to which the bracket is assembled is given in Table 7-1.

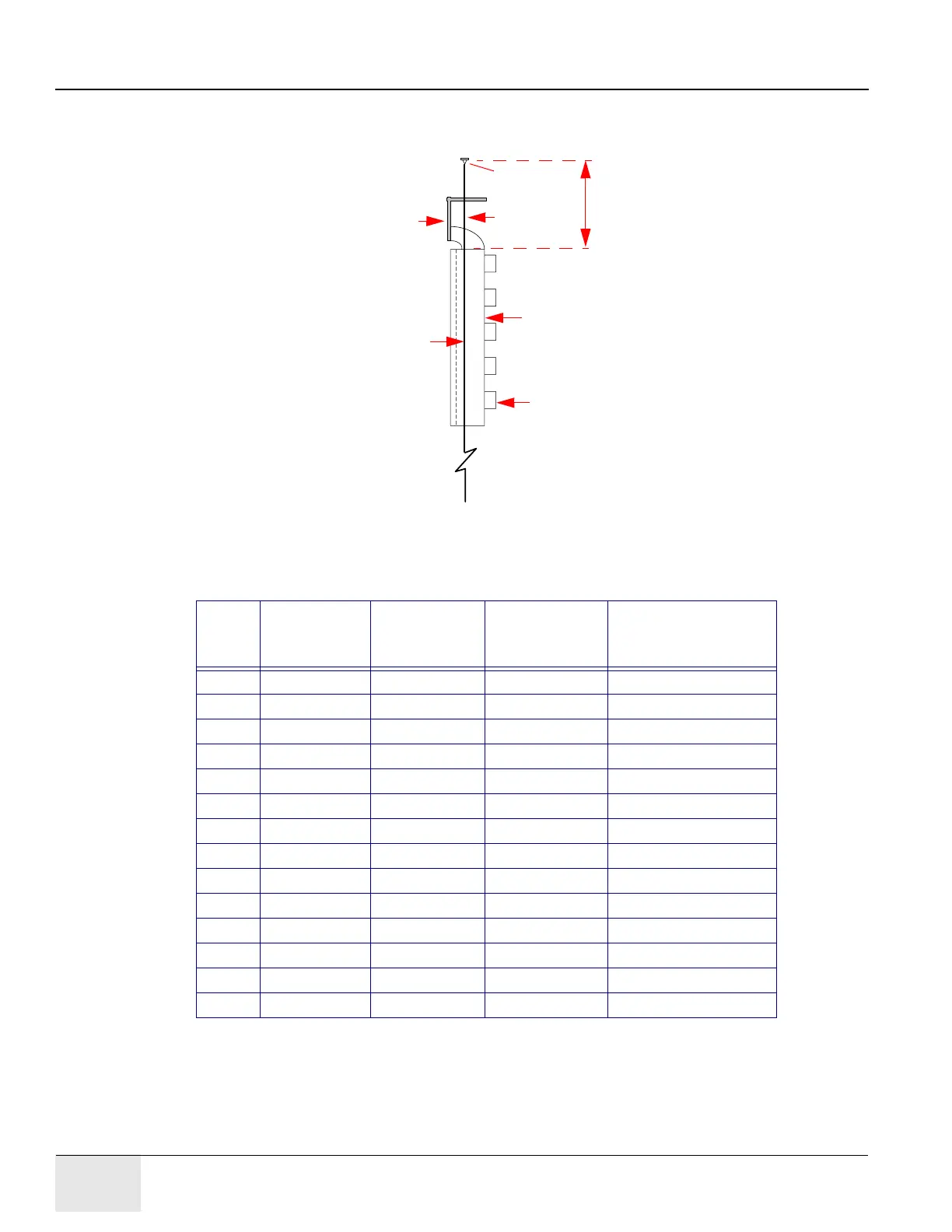

Figure 7-13: Placing Cable Inside Retractor
Table 7-1: AEDI Cable Connections
Note: Connect the cables so that their minimum bending radius is 12.5 mm.
6.) Tie-wrap the bundle of cables on the bracket side to prevent the cables from moving.
7.) Close the retractor by fastening the clips.
Cable
Part No.
(Old
Gantries)
Part No.
(New
Gantries)
Connection
Length of Cable
Protruding from
Retractor
AEDI 46-325061 2121185 J1 207 cm.
AEDI 46-325061 2121185 J2 207 cm
AEDI 46-325061 2121185 J3 207 cm
AEDI 46-325061 2121185 J4 207 cm
AEDI 46-325061 2121185 J5 207 cm
AEDI 46-325061 2121185 J6 207 cm
AEDI 46-325061 2121185 J7 207 cm
AEDI 46-325061 2121185 J17 69 cm
AEDI 46-325061 2121185 J18 69 cm
AEDI 46-325061 2121185 J19 69 cm
AEDI 46-325061 2121185 J20 69 cm
AEDI 46-325061 2121185 J21 69 cm
AEDI 46-325061 2121185 J22 69 cm
AEDI 46-325061 2121185 J23 69 cm
Connector
Length Protruding
Retractor
Cable
Bracket
J#
AEDI Cable
46-325061
Clips Open
