GE H
EALTHCA
RE
D
IRECTION
2307224-100, R
EVISION
6D
ISCOVERY
LS S
YSTEM
S
ERVICE
M
ANUAL
Page 240
Chapter 7 - Gan
try
7.5.4 Replacement of the Sh
ort Positioning Pin (P/N 2287052)
1.)
Refer to
Figure
7-
21
. Remove
the four scre
ws holding the
pin base
.

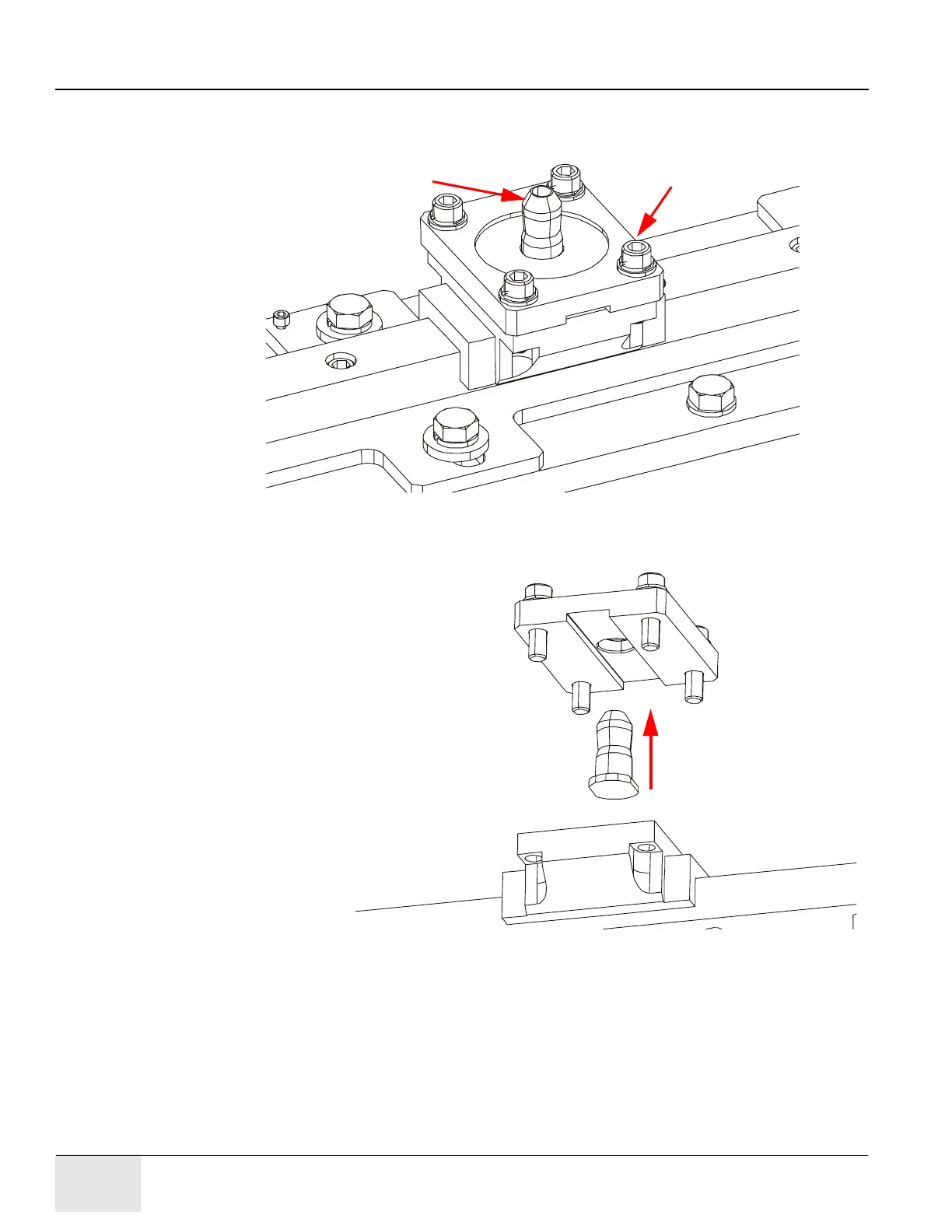

Figure 7-21:
Replacing the Short Positioning Pin #1
2.)
Refer to
Figure
7-
22
. Remove the old pin and
replace with the new one.
Figure 7-22:
Replacing the Short Positioning Pin #2
Short Position
ing Pin
Screw (4) on Pin Base
239
241
