GE HEALTHCARE
DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Chapter 6 - Table Page 199

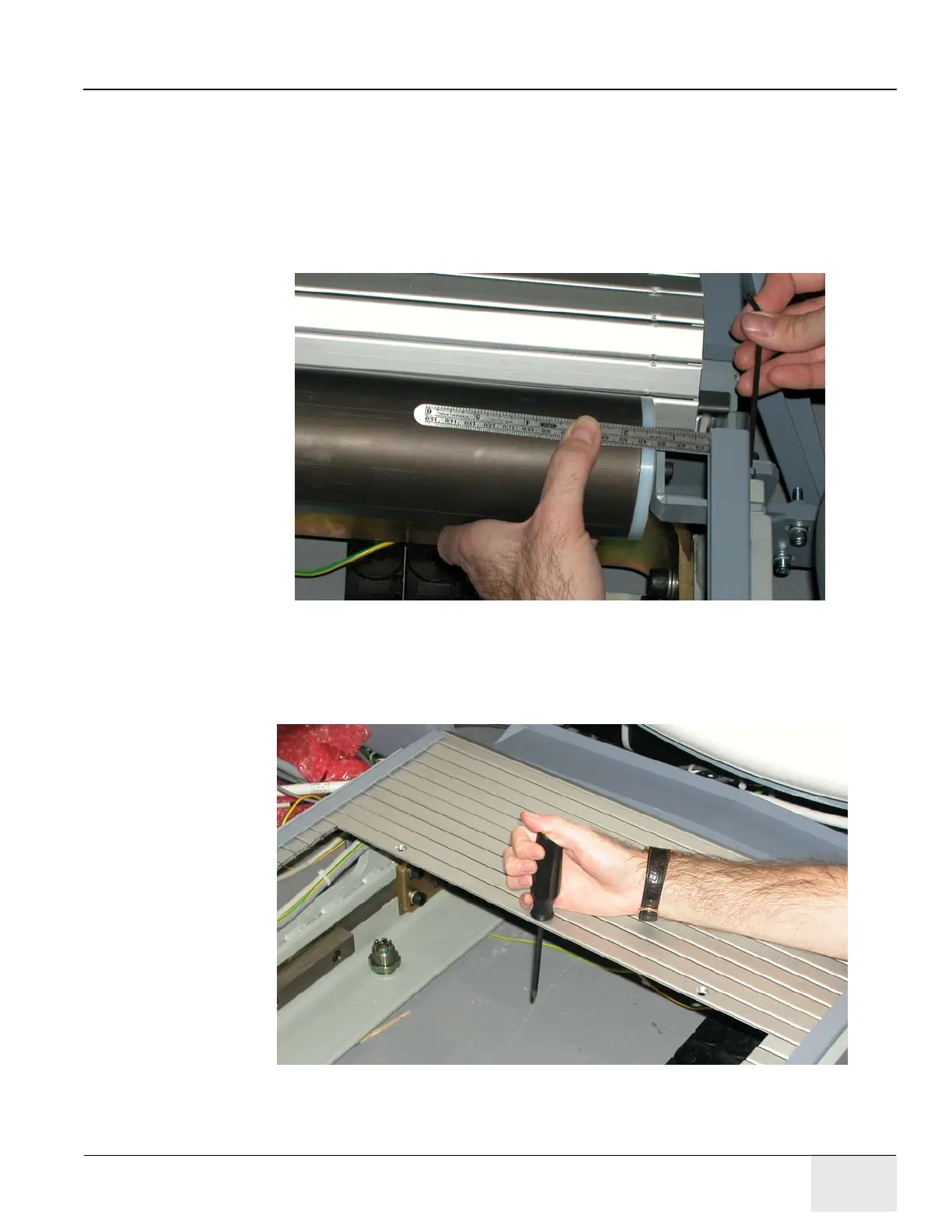

5.) Refer to Figure 6-125. Roller adjustments:
a.) Rest an Allen wrench or ruler between the top of the idle roller and the top surface of the
lower roller cover guide.
b.) Raise or lower the idler roller in its slot, until the top of the roller is even with the top surface
of the lower roller cover guide.
c.) Use a 3 mm Allen wrench to tighten the M4 x 20 mm screw, clamping the idler roller into
position in the slot.
d.) Repeat the adjustment on the opposite side of the roller.
Figure 6-125: Align Idler Roller to Roller Cover Guides
6.) Refer to Figure 6-126. Insert the blade of a screwdriver through center hole in the roller cover,
so the cover will not retract all the way into the box when it is released.
7.) Use the screwdriver as a handle to pull the cover forward.
Figure 6-126: Use a Screwdriver to Pull Cover Out of Canister
