GE Discovery LS - 6.2.7.10 Install the Idler Roller and Align it to the Roller Cover Guides

GE HEALTHCARE
DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Page 198 Chapter 6 - Table
6.2.7.10 Install the Idler Roller and Align it to the Roller Cover Guides
1.) Locate and remove the idler roller, P/N 2331848, from the kit.
2.) Refer to Figure 6-123. Position the idler roller into the slots in the secondary table base. (The
roller has an offset bracket; orient the roller so its bulk faces the gantry.)

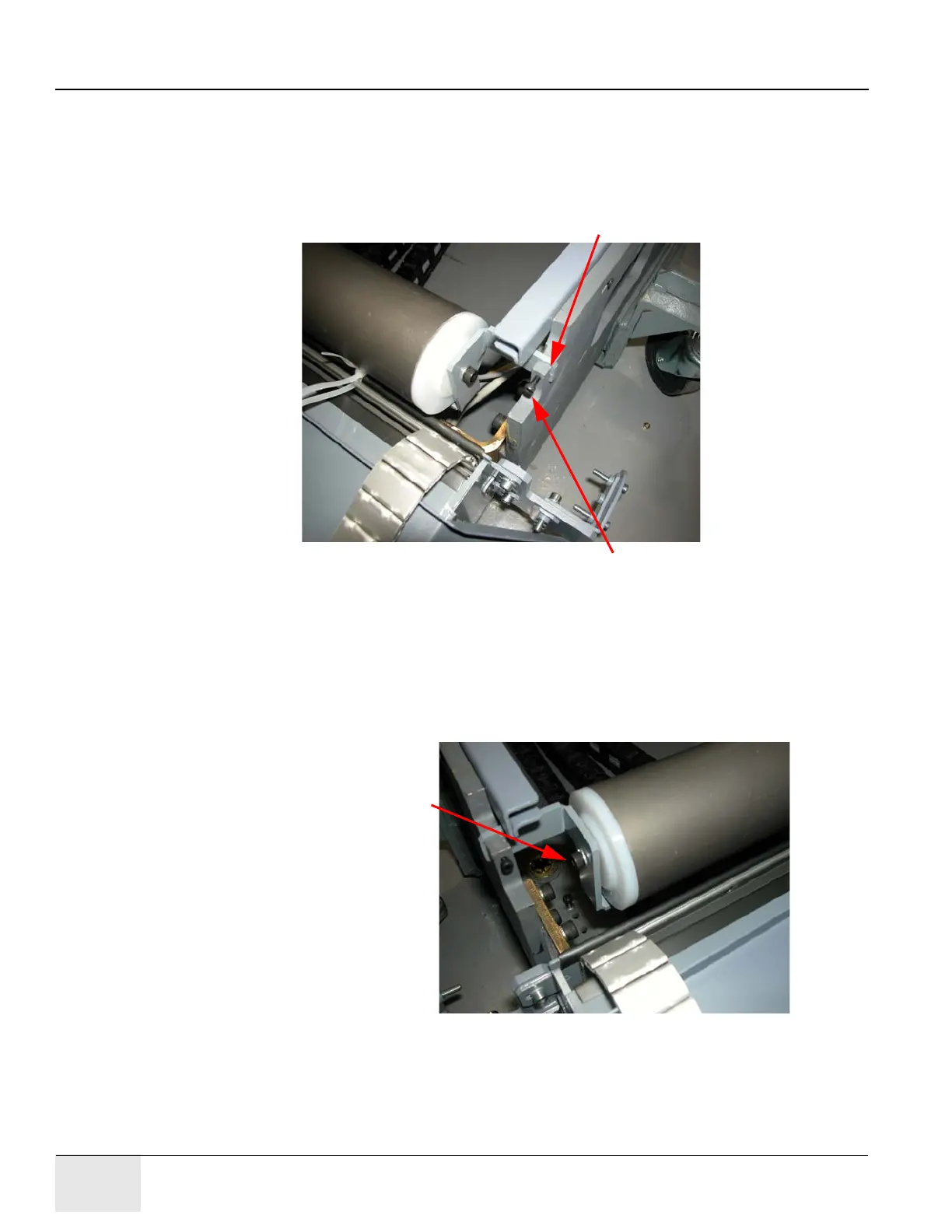

Figure 6-123: Inset Idler Roller (P/N 2331418) into Slot in Table Base
3.) Refer to Figure 6-123. Use a 3 mm Allen wrench to thread an M4 x 20 socket-head cap screw
into the holes at the front of the secondary base rails. (Do not tighten the screws until the idler
roller is aligned to the cover guides.)
4.) Once in place, check that the idler roller rotates freely when spinning it by hand. Refer to
Figure 6-124. If necessary, loosen the hardware with a 5 mm Allen wrench until the roller spins
freely.
Figure 6-124: M4 Hardware Holds Idler Roller in Place
Slot for Roller (formerly
M4 x 20 mm Screws
occupied by window shade).
Hardware that fastens
roller to its bracket.
