GE HEALTHCARE
DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Page 138 Chapter 6 - Table
4.) Refer to Figure 6-33. Fasten the template into place with the two clamp blocks and four sets
of M6 hardware.
5.) Use a 5 mm Allen wrench to tighten the M6 hardware.

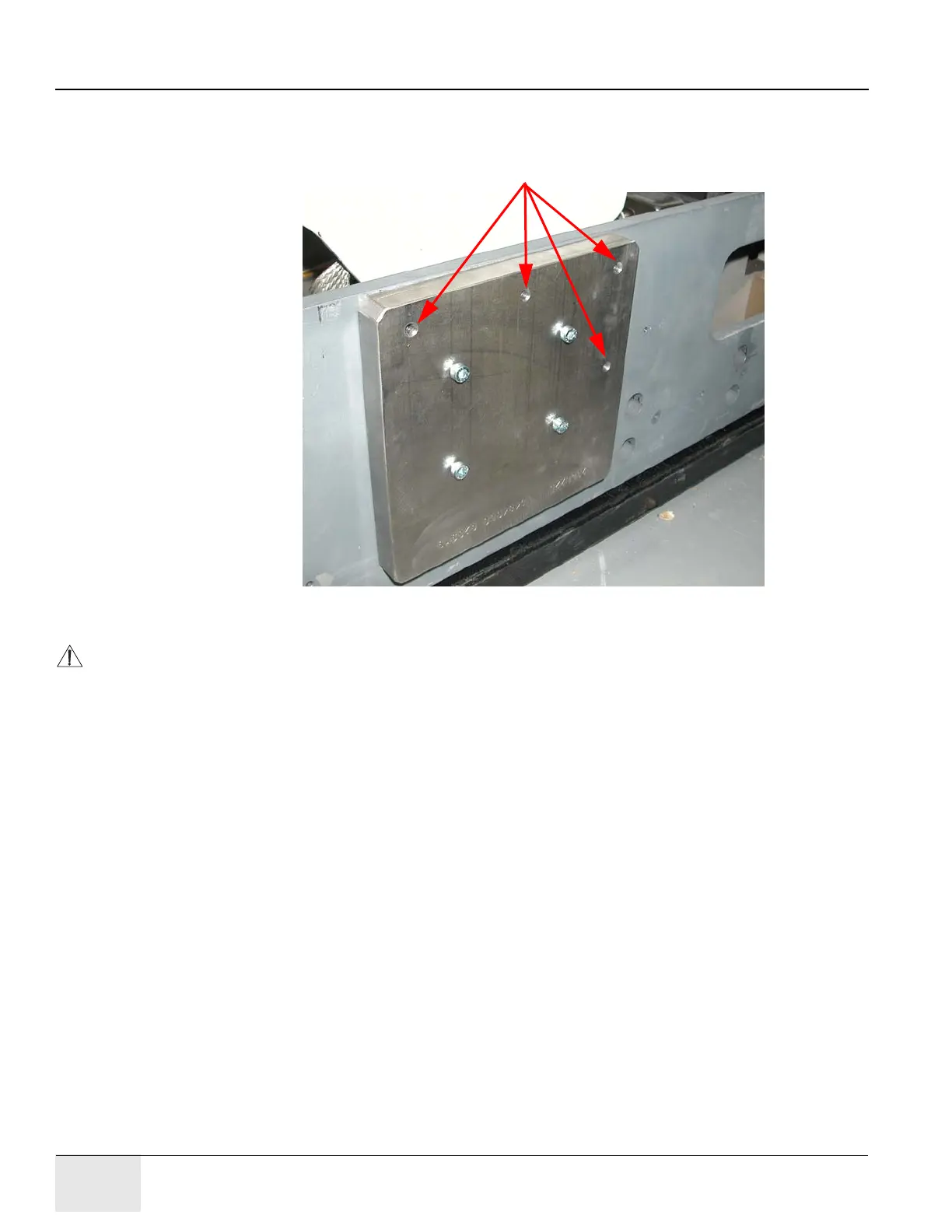

Figure 6-33: PET Drill Template (Exterior View)
CAUTION To prevent injury, wear eye protection while drilling.
6.) Tape a piece of paper or paper towel to the interior of the rail, to prevent the debris from
collecting on the bearing rail.
7.) Use a 5.5 mm bit to drill the template holes. (Do not tap these holes.)
• Recommended: Use cutting oil when drilling.
• Keep the drill perpendicular to the rail while drilling.
• Stop frequently to let the drill bit cool.
• Vacuum debris while drilling.
Drill these four holes.
