GE HEALTHCARE
DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Page 154 Chapter 6 - Table

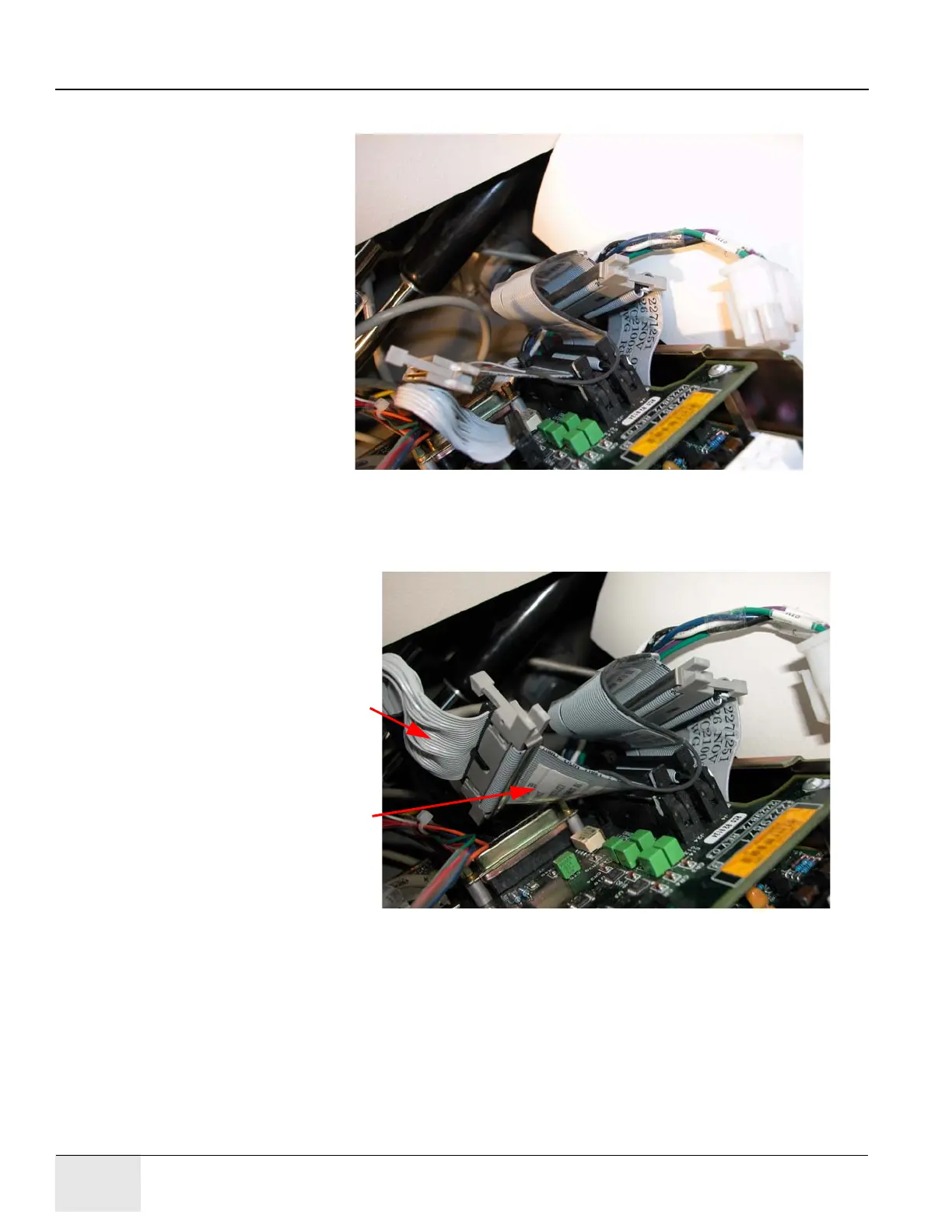

4.) Refer to Figure 6-58. Connect the existing ribbon cable, P/N 2271251, to the adapter side of
the new Base Drive Enable ribbon cable, P/N 2340386.
Figure 6-58: Connect New Ribbon Cable to Existing Ribbon Cable
5.) Refer to Figure 6-59. Connect the signal harness removed earlier from ETC I/F J24 to the new
J24 ribbon cable.
Figure 6-59: Connect Existing Signal Harness to New Ribbon Cable in J24
6.) Refer to Figure 6-55. Reconnect J10 to its ETC board connector.
Reattach existing
cable to new cable.
New Cable
