GE Discovery LS - Figure 6-90: Check Relationship between Roller Arm and Pin out of Detent; Figure 6-91: Check the Relationship between the Roller Arm and Pin on the Detent

GE HEALTHCARE
DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Chapter 6 - Table Page 175
2.) Refer to Figure 6-90. Check the relationship between the roller arm and position latch pin.
• A gas spring provides the roller arm tension.
• Whenever the CT-PET position latch is out of the detent, the roller arm rests against the
latch pin, as shown in the Figure 6-90 detail.

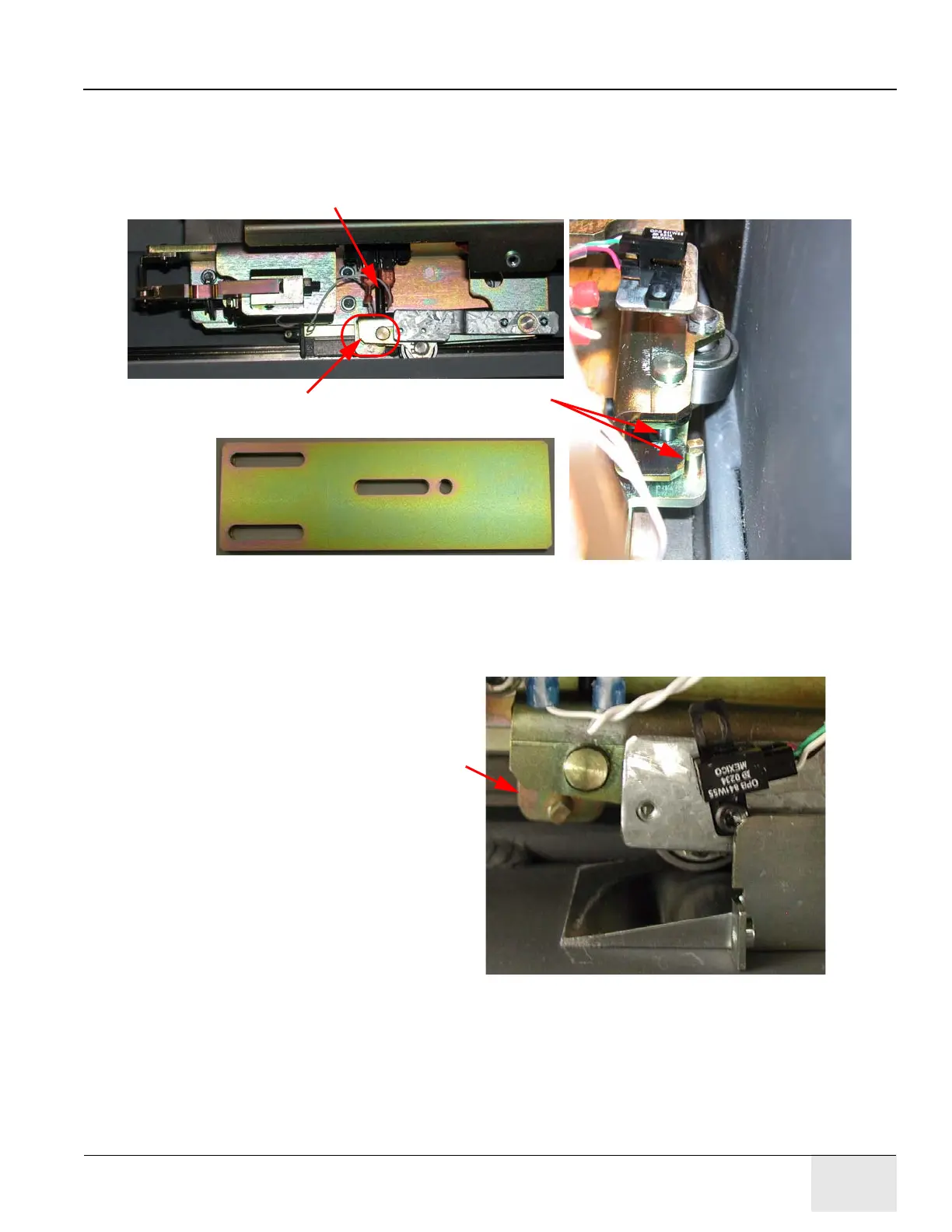

Figure 6-90: Check Relationship between Roller Arm and Pin Out of Detent
3.) Refer to Figure 6-91. Push the table onto a detent assembly ramp. (The roller arm moves away
from the latch pin.)
Figure 6-91: Check the Relationship between the Roller Arm and Pin on the Detent
The roller arm rests against the latch pin when the CT-PET
Position latch is out of the detent.
Gas spring provides tension.
Detent Shim, P/N 2355629 (One shim fits both detents.)
Roller arm moves away
from latch pin.
