GE HEALTHCARE
DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Chapter 6 - Table Page 191
6.2.7.3 Install the Roller Cover Assembly
CAUTION The roller canister is too small to accommodate a cover long enough to stretch to the service
position. After the roller cover assembly is installed and the roller cover attached to the
bracket on the table, REMEMBER to detach the cover each time the table is moved to the
service position. Refer to Figure 6-126. Insert a screwdriver blade, or fasten a bolt through
the center hole in the top cover to prevent the cover from retracting into the canister.
6.2.7.4 Attach the Roller Cover Guides to the Secondary Base Side Rails
Refer to Figure 6-113. The cover guide consists of two rails. The wide rail provides the top cover
guide, and the narrow rail provides the bottom guide. Follow the procedure in this section to align
the holes and fasten the rails to the secondary base with M4 hardware.

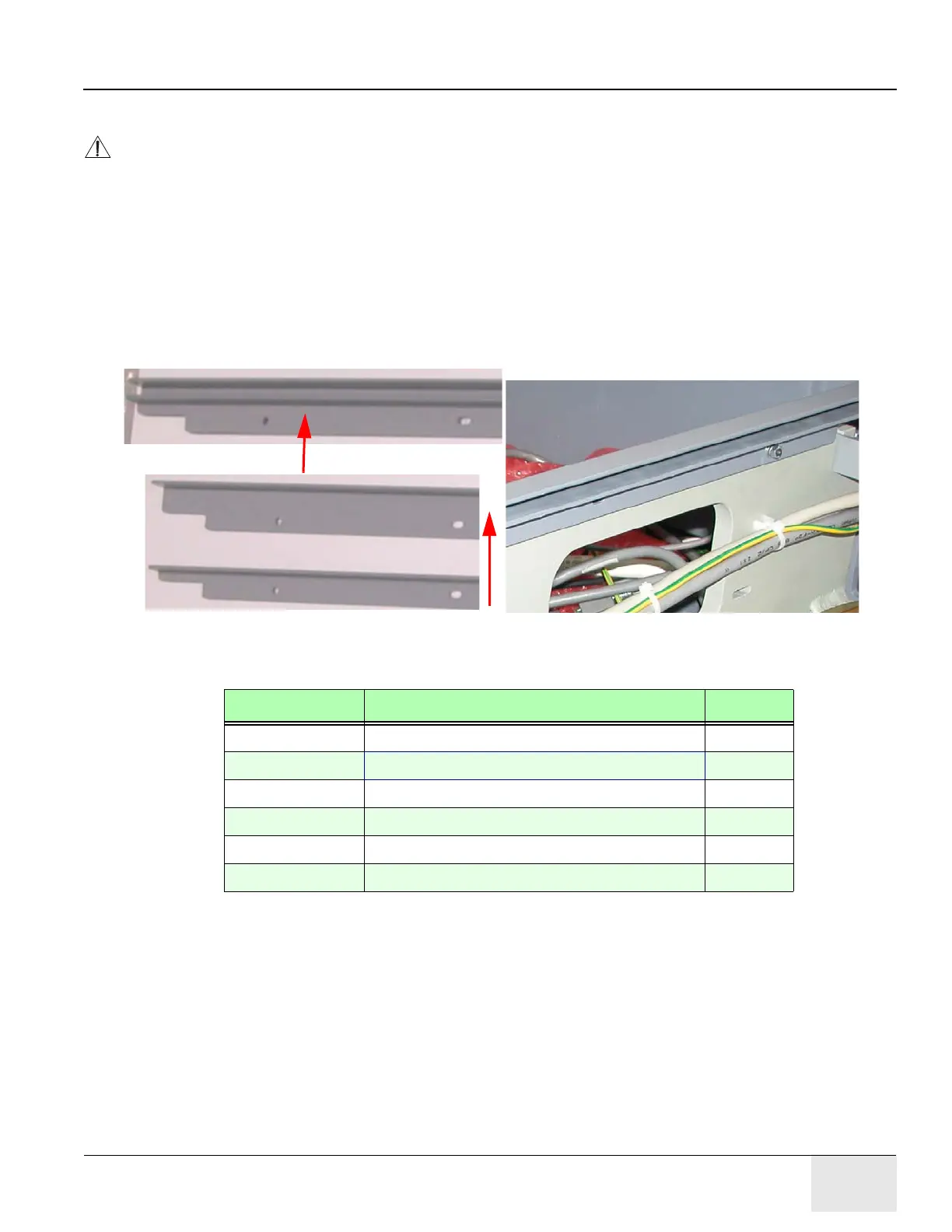

Figure 6-113: Assemble the Roller Cover Guides
1.) Locate and remove the following parts from the upgrade kit:
2.) Assemble the guides as shown in Figure 6-113.
Part Number Description Quantity
2342802 Bracket Rail, Upper (Wide Guide) 2
2342802-2 Bracket Rail, Lower (Narrow Guide) 2
2103580-6 M4 x 25 Flat-Head Screw 4
46-328430P2 M4 Flat Washer 4
46-328432P2 M4 Lock Washer 4
46-328425P1 M4 Hex Nut 4
