GE Discovery LS - Figure 6-65: Left Cover Flange with Adhesive Tie-Wrap Mounts

GE HEALTHCARE
DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Page 158 Chapter 6 - Table
CAUTION To prevent potential interference during table base motion, ALWAYS orient the mounts as
shown in Figure 6-65. ALWAYS remove the protective backing, and use the adhesive base
to fasten the mounts to the left rail flange.

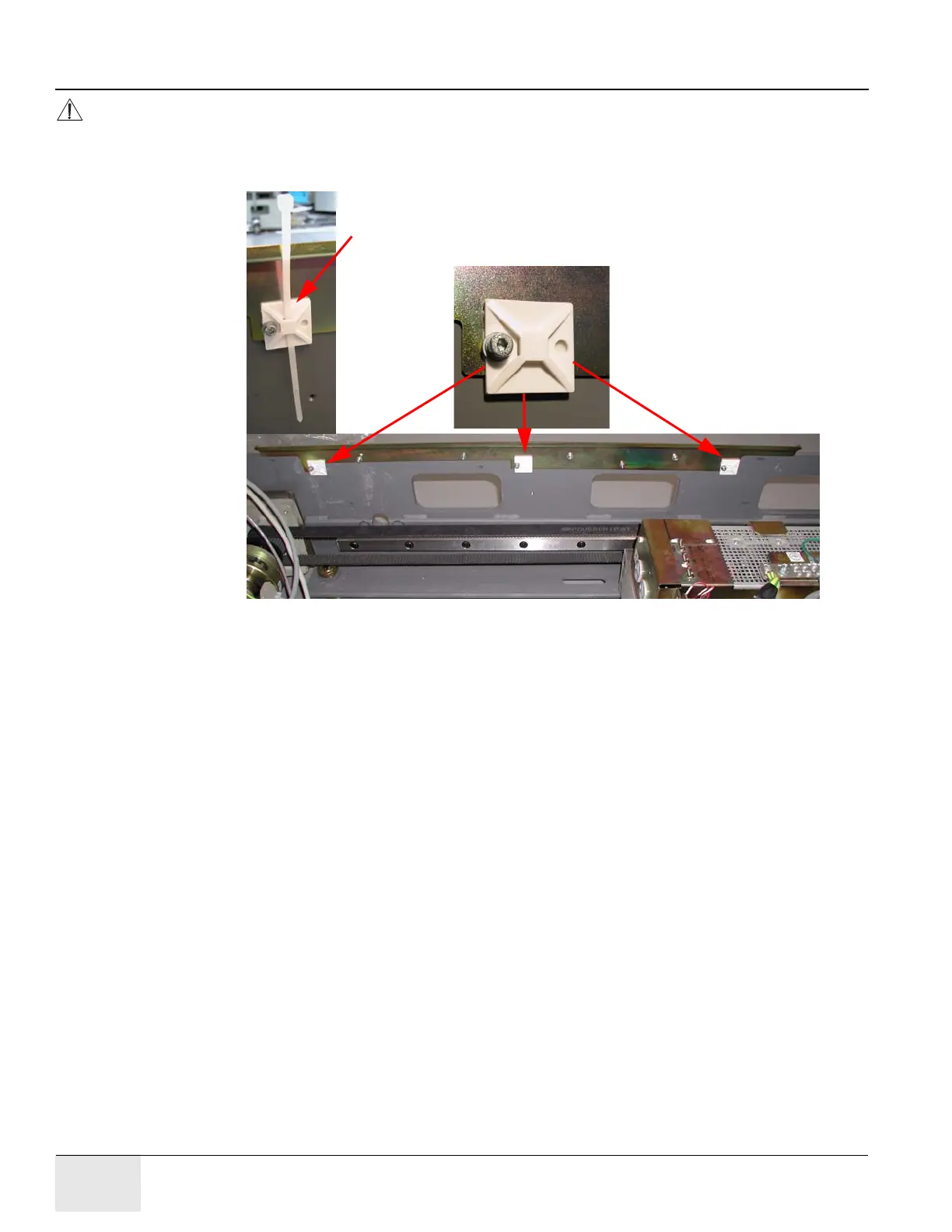

Figure 6-65: Left Cover Flange with Adhesive Tie-Wrap Mounts
Orient the mount
for vertical tie-wraps.
