2.5.2 Mechanical Hazards
Refer to Figure 2-20. During service, the table touch sensors must remain operable for the table to
fully function. To operate the table with the covers removed, the sensors must be jumpered.

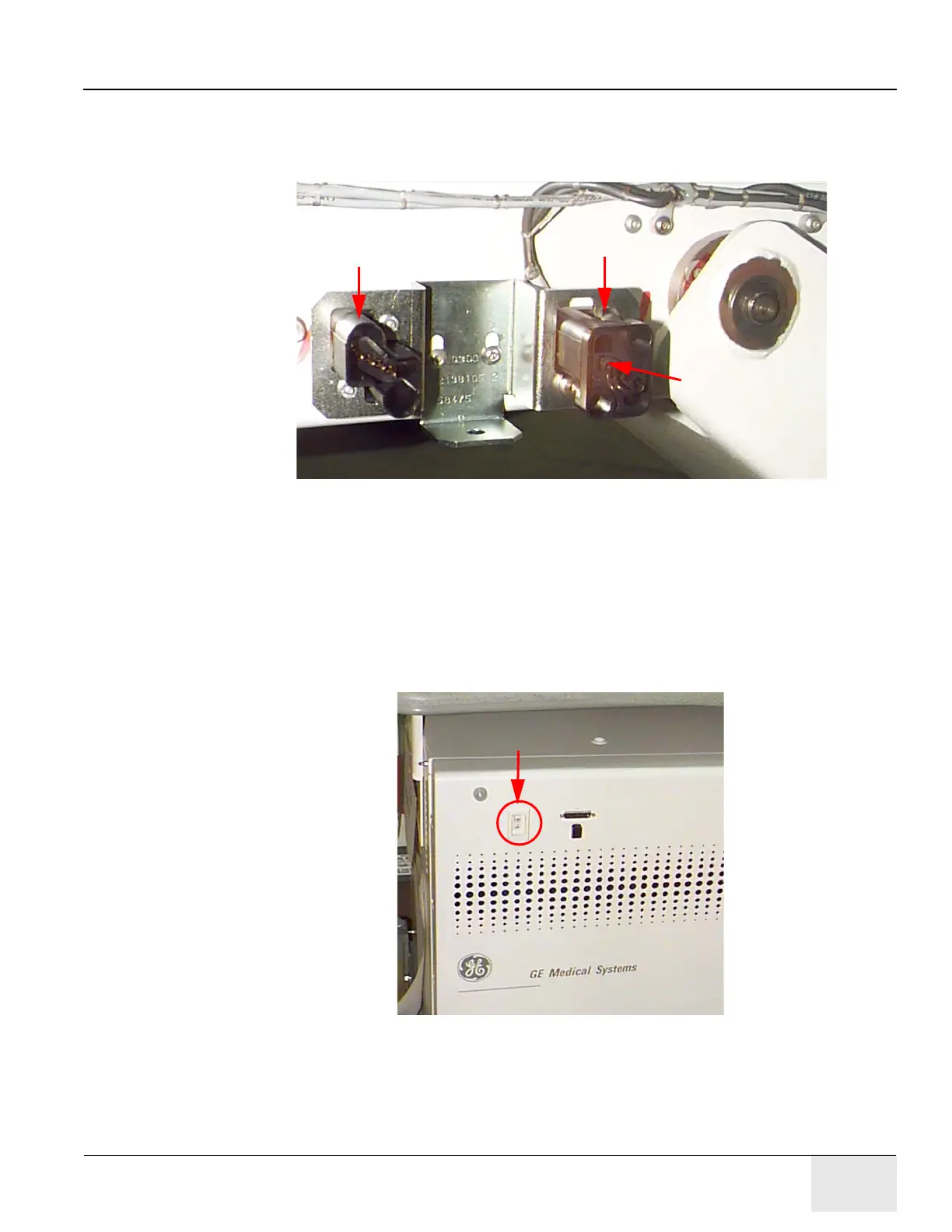

Figure 2-20: Table Touch Sensor Jumpered Out
2.5.3 Chemical Hazards
Always wear personal protection equipment that prevents inhalation, digestion and absorption
through skin of chemicals.
2.6 Console (H3 or GOC1)
The Console On/Off Power Switch is shown in Figure 2-21.
Figure 2-21: H3 Console On/Off Power Switch (Front Cover Removed)
Sensors
Jumpered Out
Service
Jumper
Storage Position
for Jumper
Console
Power Switch
