GE HEALTHCARE
DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Page 192 Chapter 6 - Table
3.) Refer to Figure 6-114. Locate the slots that will be used to fasten the cover guides to the inside
surface of the secondary table base. Insert screws from the outside.
4.) Insert a P/N 2103580-6 flat-head screw into the center of each designated slot on each side
rail. Adjust the guides from side-to-side to center the flat-head screws in the slots.
5.) Use a 2.5 mm Allen wrench and a 7 mm wrench to tighten the hardware.

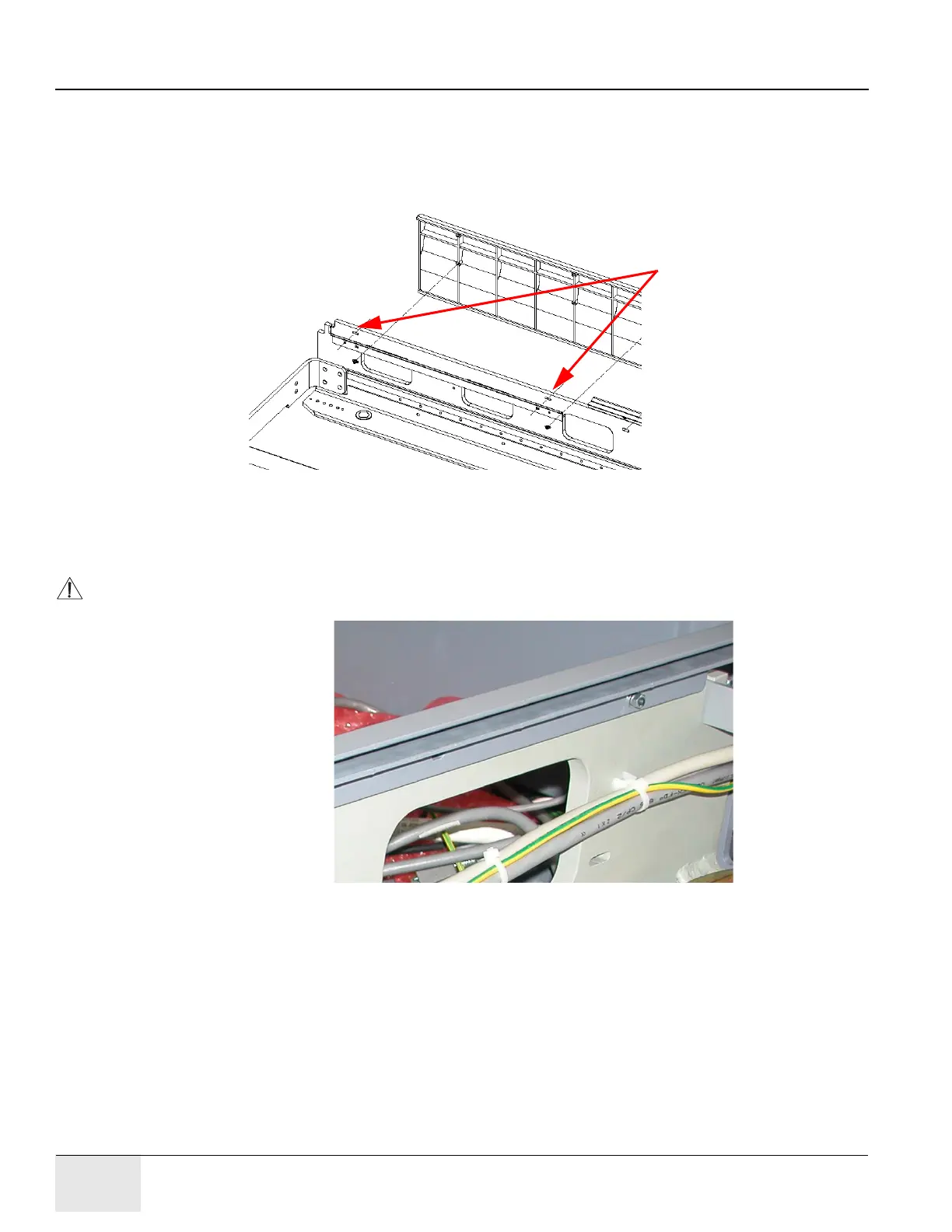

Figure 6-114: Secondary Base Side Rail Slot Locations
6. Refer to Figure 6-115. Fasten the cover guide to the secondary rail with an M4 flat washer,
lock washer and hex nut.
NOTICE Do NOT overtighten the hex nut to avoid jamming the head of the screw into the slot.
Figure 6-115: Fasten Roller Cover Guides into Place
Center flat-head screw
in these slots.
