2.) Refer to Figure 6-62. Attach the Signal Harness J7 connector to CMD Adapter J1, and tighten
the screws.

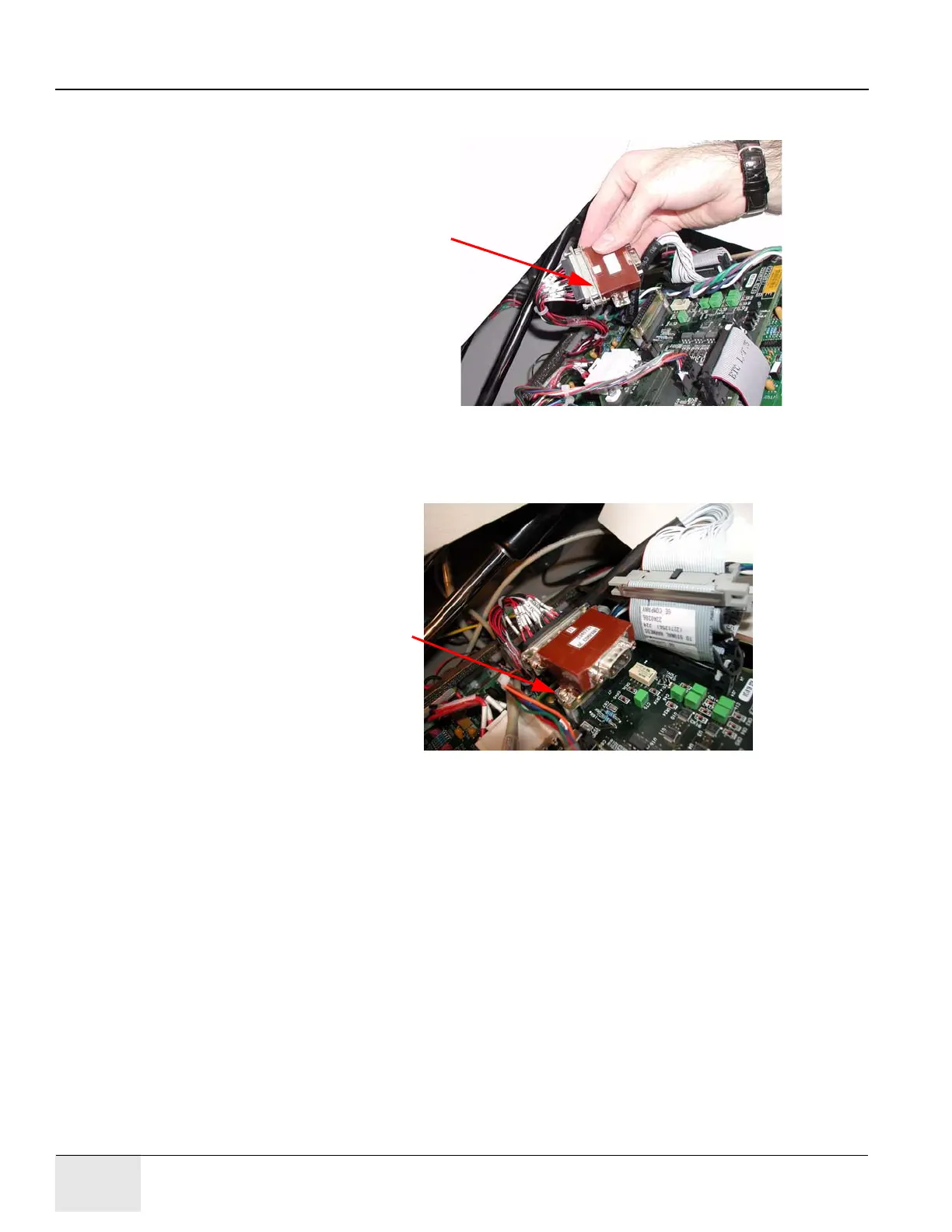

Figure 6-62: Attach Existing Signal Harness to J1 on CMD Adapter
3.) Refer to Figure 6-63. Insert the ETC I/F J7 connector of the CMD Adapter into J7 of the ETC
I/F Board, and tighten the screws.
Figure 6-63: Attach the CMD Adaptor to ETC I/F J7
Attach existing J7 cable
to CMD Adapter before
fastening the CMD
Adaptor in place.
Fasten CMD
Adaptor to J7.
