GE HEALTHCARE
DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Chapter 6 - Table Page 201
6.2.7.11 Fasten the Side Skirts to the Secondary Base
Four side skirts and a back cap enclose the bottom of the secondary base. Attach the longer right
and left side covers to the secondary base first, then attach the front right and left side covers. Do
not fasten the back cap into place until the rear top covers are installed.
1.) Locate and remove the following side covers from the kit:
• Right Side Cover, P/N 2320162
• Left Side Cover, P/N 2320163
2.) Refer to Figure 6-128 and Figure 6-129. Insert the cover guide pins into the designated slots
on the secondary base side rail, and slide the table back and forth to gain access to all the
through holes.
• The front pin fits into slot nearest the end of the roller cover guides.
• All slots and holes for all four side covers are through holes.

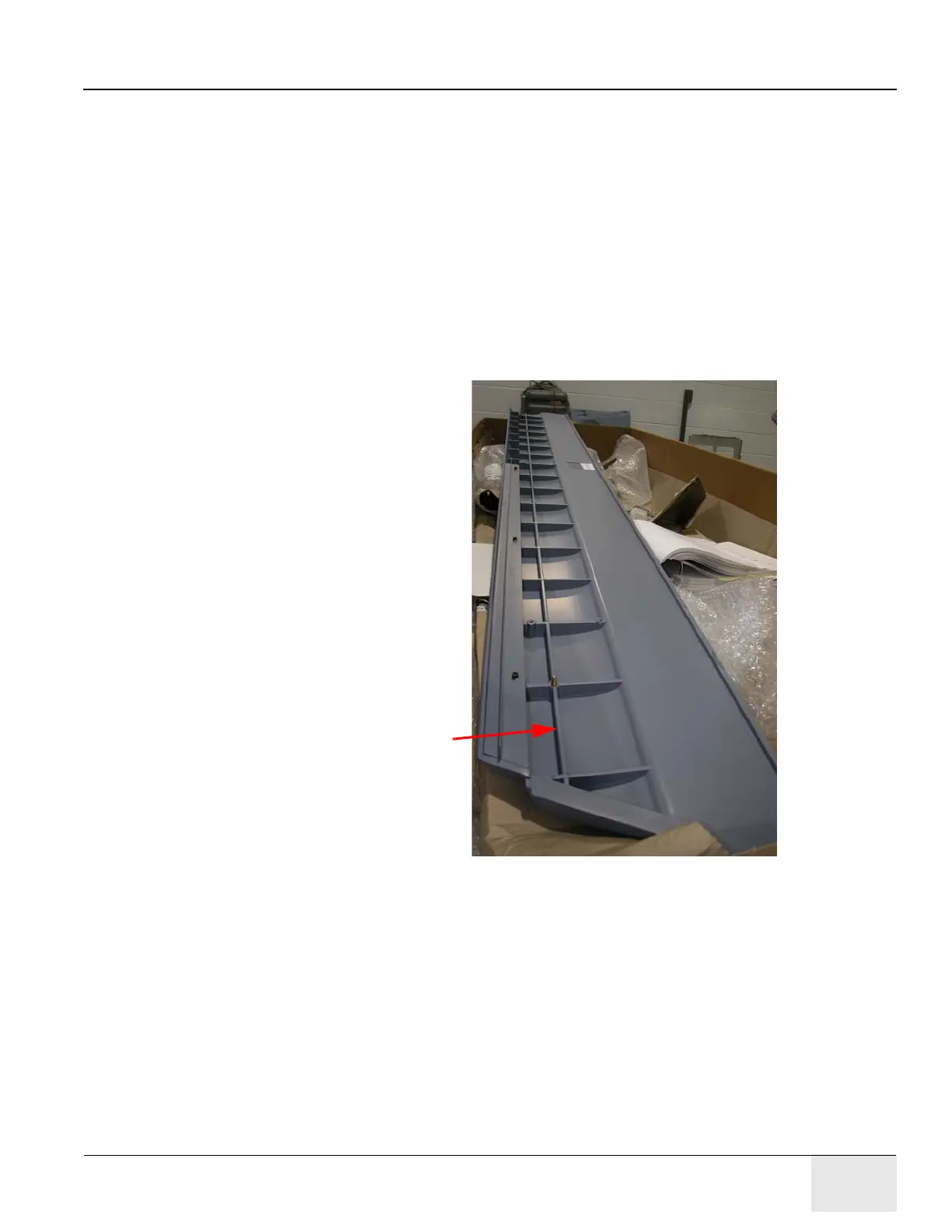

Figure 6-128: Side Cover - Back View to Show Guide Pins
Brass Guide Pin
