2.9.2.1 Secondary Base Drive Mechanism Safety (Automated Tables)

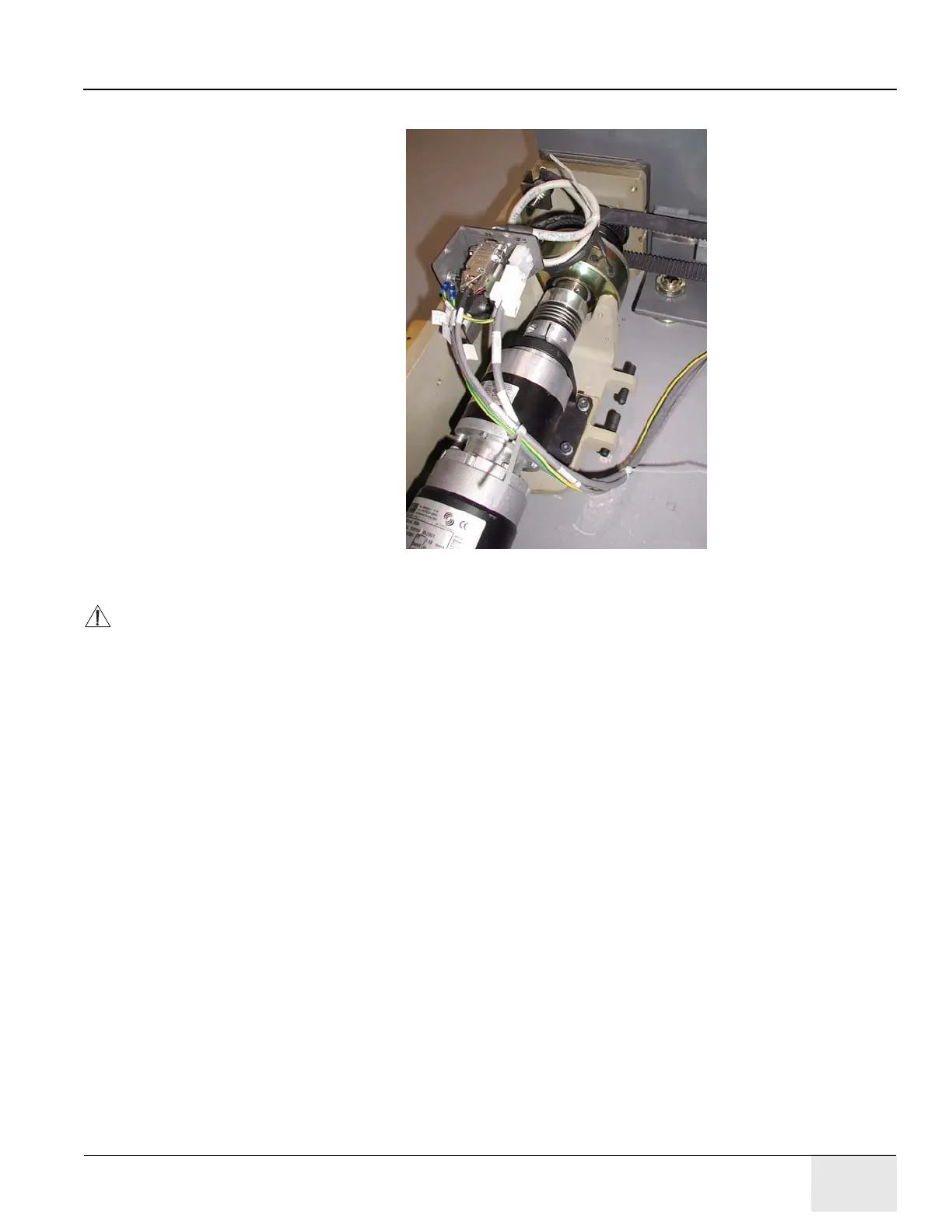

Figure 2-31: Secondary Base Drive Mechanism
DANGER THE SECONDARY BASE DRIVE MECHANISM EXTENSION CABLES ARE
ROUTED INSIDE A PLASTIC CONDUIT ON THE FLOOR UNDER THE TABLE.
MAKE SURE THAT THE CABLE IS PROPERLY INSERTED INTO THE FLOOR
DUCT TO AVOID DAMAGE TO THE CABLE AND/OR ELECTRICAL SHORT
CIRCUIT BY SECONDARY BASE MOVEMENT OR COLLISION WITH OTHER
ITEMS OF EQUIPMENT OR FURNITURE.
