Chapter 11 - Replacement Parts Page 291

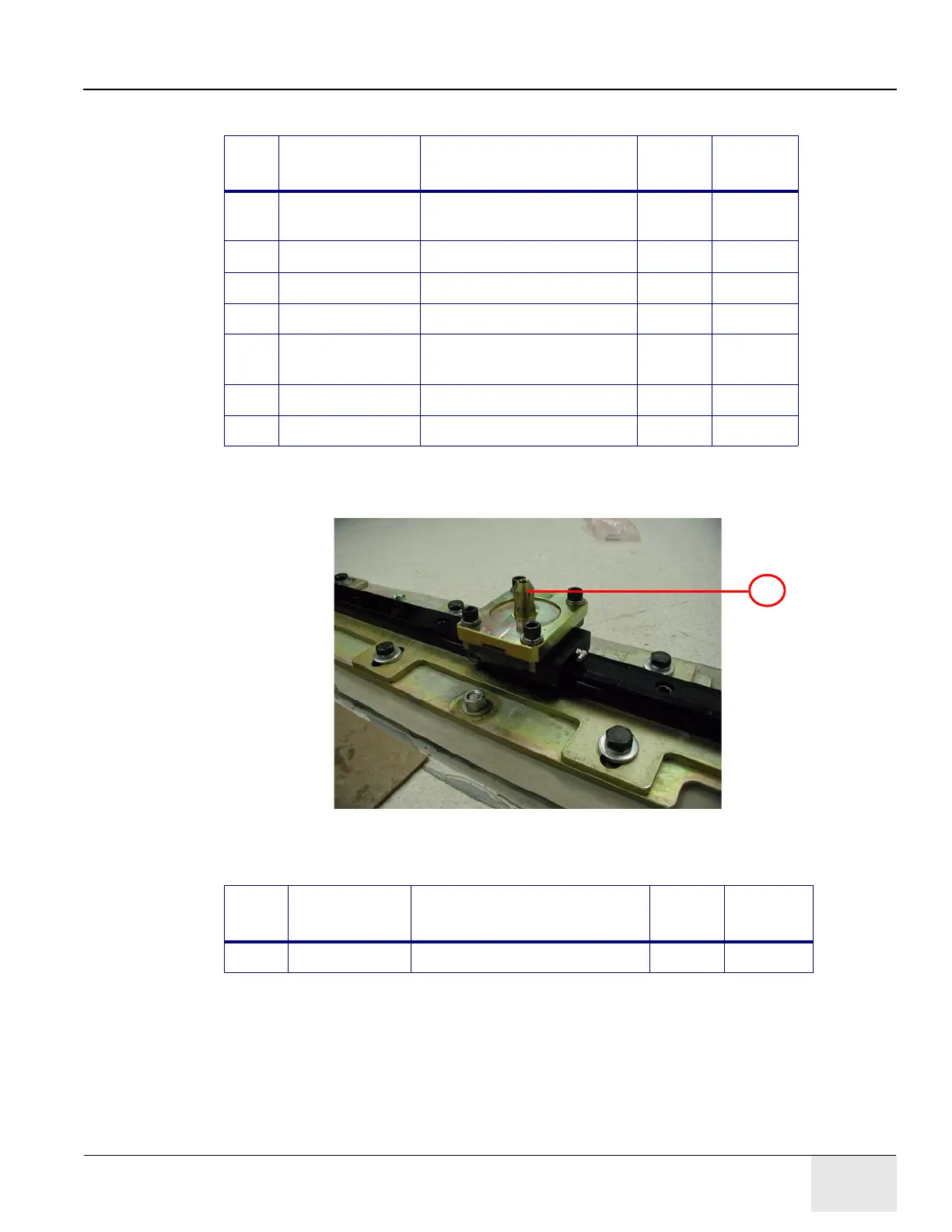

Figure 11-4: Positioning Pin

Item Part Number Description

FRU

Yes/No

Quantity

10 2292298 Adjuster Spherical Washer D

(Lower)

Yes 2

11 2287048 Adjuster Leveling Yes 4

12 2290076 Adjuster Lock Ring Yes 4

13 2292296 Adjuster Lock Washer Yes 4

14 2292302 Adjuster Spherical Washer C

(Upper)

Yes 4

15 2290248 Linear Driving Assembly Yes 1

16 HG01041720E Linear Rail Yes 1

Table 11-3: Linear Bearing Assembly and Adjusters Parts

Item Part Number Description

FRU

Yes/No

Quantity

17 2287052 Positioning Pin, Short Yes 2

Table 11-4: Positioning Pin Part
