GE HEALTHCARE

DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL

Page 172 Chapter 6 - Table

6.2.6.32 Install the PET Detent and Flag Assembly

The PET Detent/Flag assembly attaches near the middle of the right table rail with three M5

mounting bolts. Center the bolts in the slots when fastening the PET Detent/Flag assembly to the

rail. Refer to Figure 6-86. The PET detent has slots to provide Z-Axis adjustment.

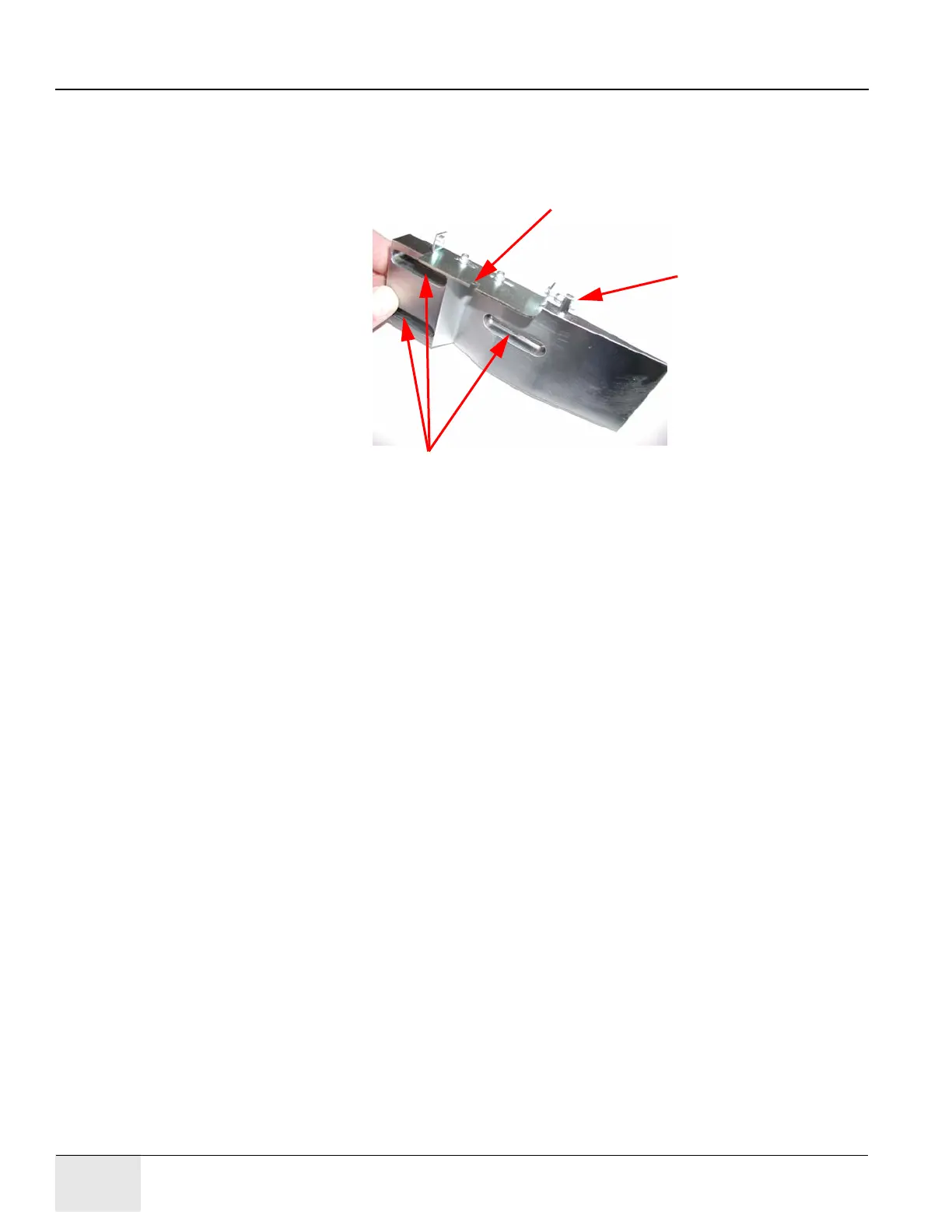

Figure 6-86: PET Detent/Flag Assembly

1.) Use a 4 mm Allen wrench to temporarily fasten the PET detent to the right table rail.

• All table rail revisions: Use three M5 x 12 mm Bolts, P/N 46-214695P23, to fasten the PET

detent to the right table rail.

• Center the hardware in the slots, and snug into place.

Flag

Center the hardware in the slots.

Flag Adjuster
