GE HEALTHCARE
DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Chapter 6 - Table Page 165

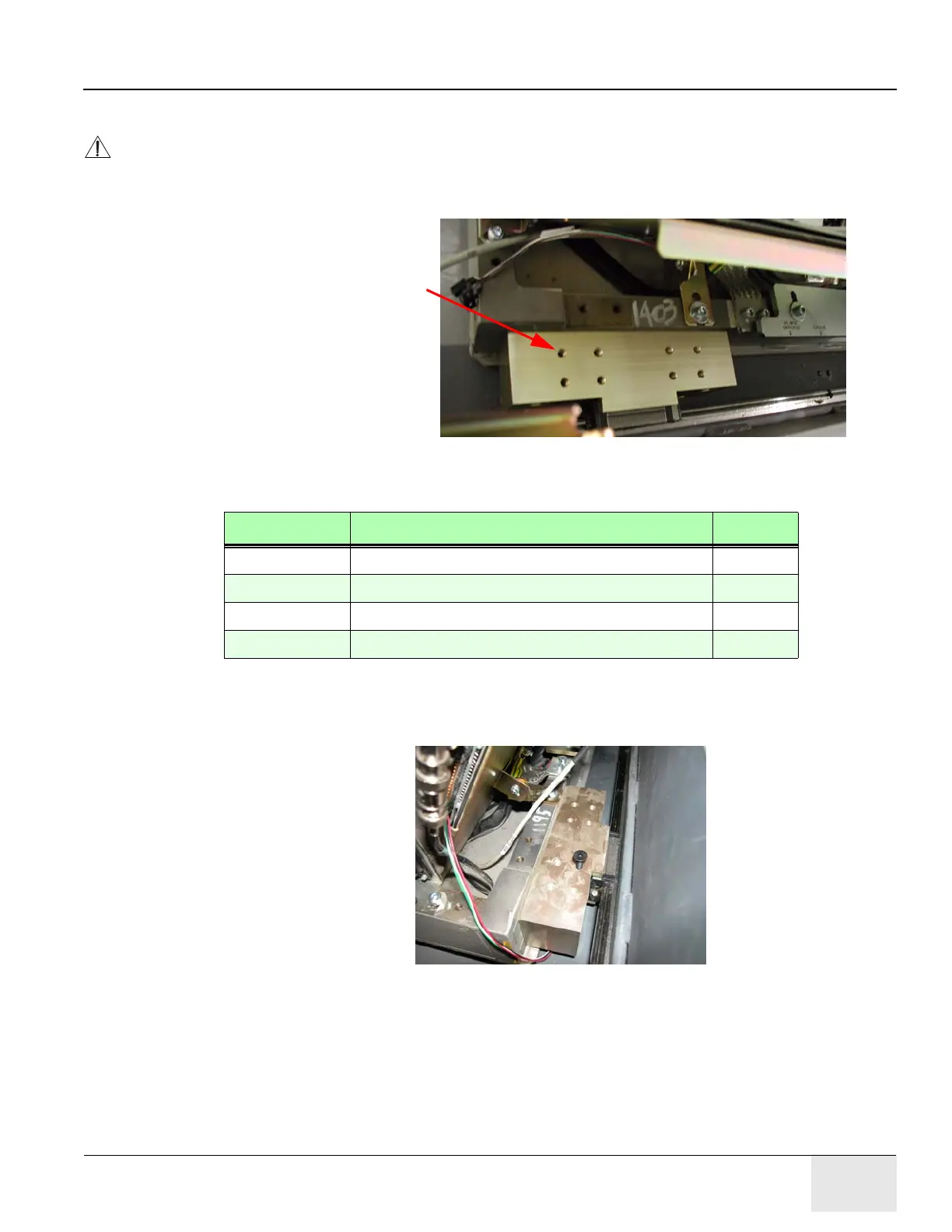

6.2.6.26 Attach the CT-PET Position Latch Mounting Plate
NOTICE Two types of linear rail bearing blocks exist in the field. The size of the pre-drilled and tapped
holes in the bearing blocks determines the type of mounting plate to use. The kit contains
both plates and both sets of hardware.
Figure 6-75: Linear Bearing Block
1.) Locate and remove the following parts from the upgrade kit:
2.) Refer to Figure 6-76. Try to fasten the M6 and M8 hardware to the linear block.
• If the M6 screw fits, use mounting plate P/N 2355095 and M6 hardware.
• If the M8 screw fits, use the P/N 2352575 mounting plate and M8 hardware.
Figure 6-76: Determine Hardware Size
Part Number Description Quantity
2355095 6 mm Plate (Locker Housing Adapter) 1
2103580-14 M6 x 20 mm Flat-Head Countersunk Screw 4
2352575 8 mm Plate (Locker Housing Adapter) 1
46-311799P15 M8 x 1.25 x 20 mm Flat-Head Screw 4
Hole size determines
part usage.
