DIRECTION 2307224-100, REVISION 6DISCOVERY LS SYSTEM SERVICE MANUAL
Chapter 6 - Table Page 181
3.) Locate and remove the following hardware that matches the table rail revision from the
upgrade kit:
4.) Refer to Figure 6-100. Use a 4 mm Allen wrench to fasten the M5 hardware into place.

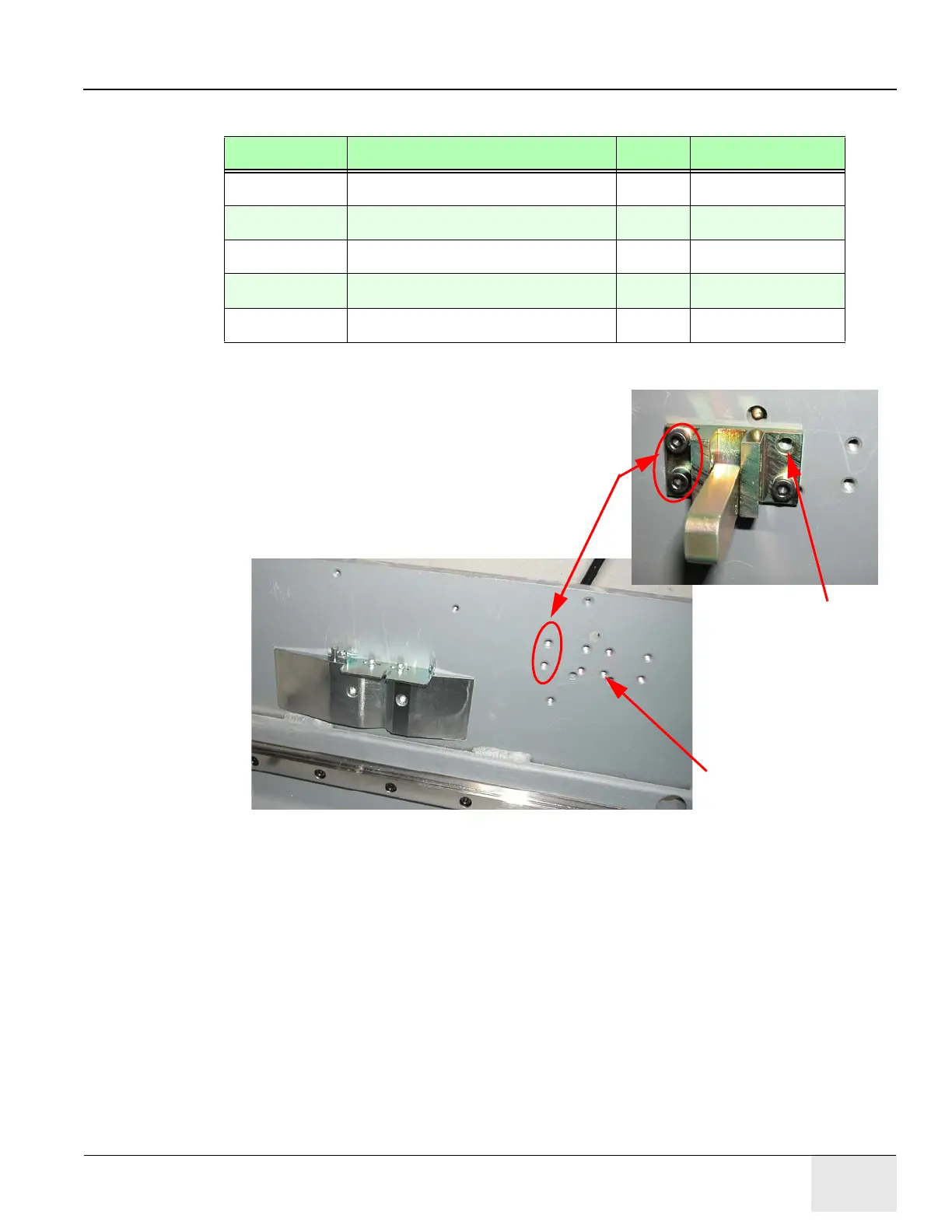

Figure 6-100: Fasten Service Latch to Table Rail with Three Sets of M5 Hardware
Part Number Description Quantity Table Revision
46-214695P23 M5 x 12 mm Socket-Head Cap Screw 3
If Revision 3
46-328432P8 M5 Lock Washer 3
If Revision 0-3
46-312577P28 M5 x 25 mm Socket-Head Cap Screw 3
If Revision 0-2
2236649 M5 Flat Washer 3
If Revision 0-2
46-328425P11 M5 Nut 3
If Revision 0-2
Use a 4 mm allen wrench to fasten the
service latch to these holes on the rail.
Fasten third screw here.
Leave empty; hardware
will interfere with latch pin.
