Page 166 Chapter 6 - Table
NOTICE Do not install the plate backward.
3.) Orient the plate as shown in Figure 6-77.
• The edge of the plate with two holes faces the rear of the table.
• The edge of the plate with one hole faces the front of the table.

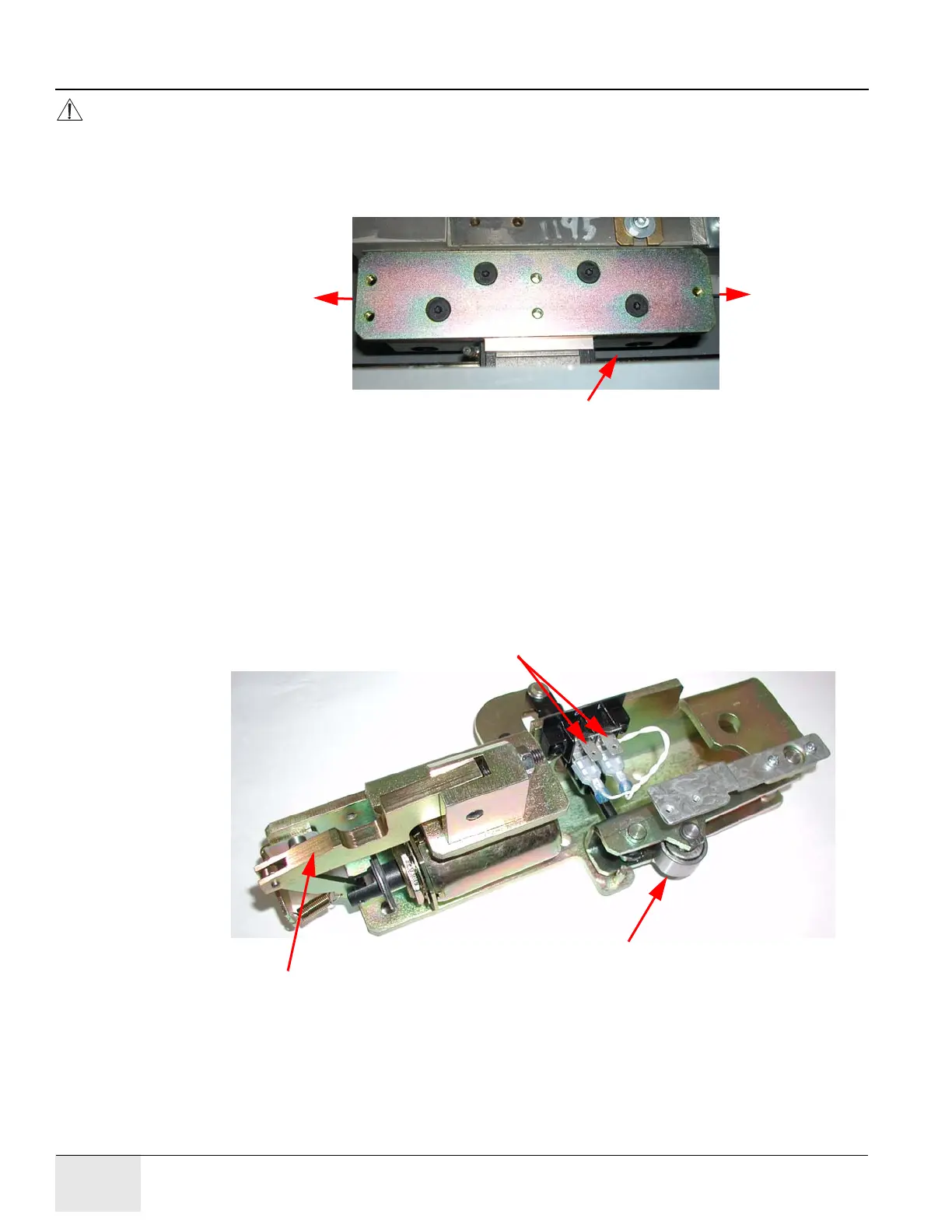

Figure 6-77: CT-PET Mounting Plate in Correct Orientation
4.) Fasten the plate into place with the corresponding hardware.
6.2.6.27 Install the PET-CT Position Latch Assembly
The CT-PET Position Latch Assembly contains the optical sensor that detects the PET and CT
flags, the latching mechanism that holds the table in the PET and CT position, and a solenoid latch
that holds the table in the CT (patient load) position.
1.) Refer to Figure 6-78.
Figure 6-78: CT-PET Position Latch Assembly, P/N 2340721
To Clutch
To Gantry
Table Rail
Motor
Rolls into CT and PET detent to hold table position.
Solenoid-controlled latch holds the table in the CT (patient load) position.
Connect Cable P/N 2338086 tabs to provide AC power to the solenoid.
