Intel® Server D50DNP Family Integration and Service Guide
115
7.3 Processor Replacement
7.3.1 Processor Replacement for Standard Air-Cooled Heat Sinks
Components Required for Each Processor
• New 4
th
Gen Intel® Xeon® Scalable processor in the shipping tray
• Matching processor carrier clip
• Existing processor heat sink with new thermal interface material (TIM)
Required Tools and Supplies
• Anti-static wrist strap and conductive workbench pad (recommended)
• ESD Gloves (recommended)
• Adjustable torque T30 Torx* screwdriver
Note: The installation figures in this section only display the 1U front heat sink and processor carrier clip
E1A. However, the processor installation procedure is the same, regardless of the size of the heat sink and
type of processor carrier clip.
Caution: Fin edges of the processor heat sink are very sharp. Intel recommends wearing thin ESD protective
gloves when handling the PHM during the following procedures.
Caution: Processor heat sinks are easily damaged if handled improperly. See the following figure for proper
handling.

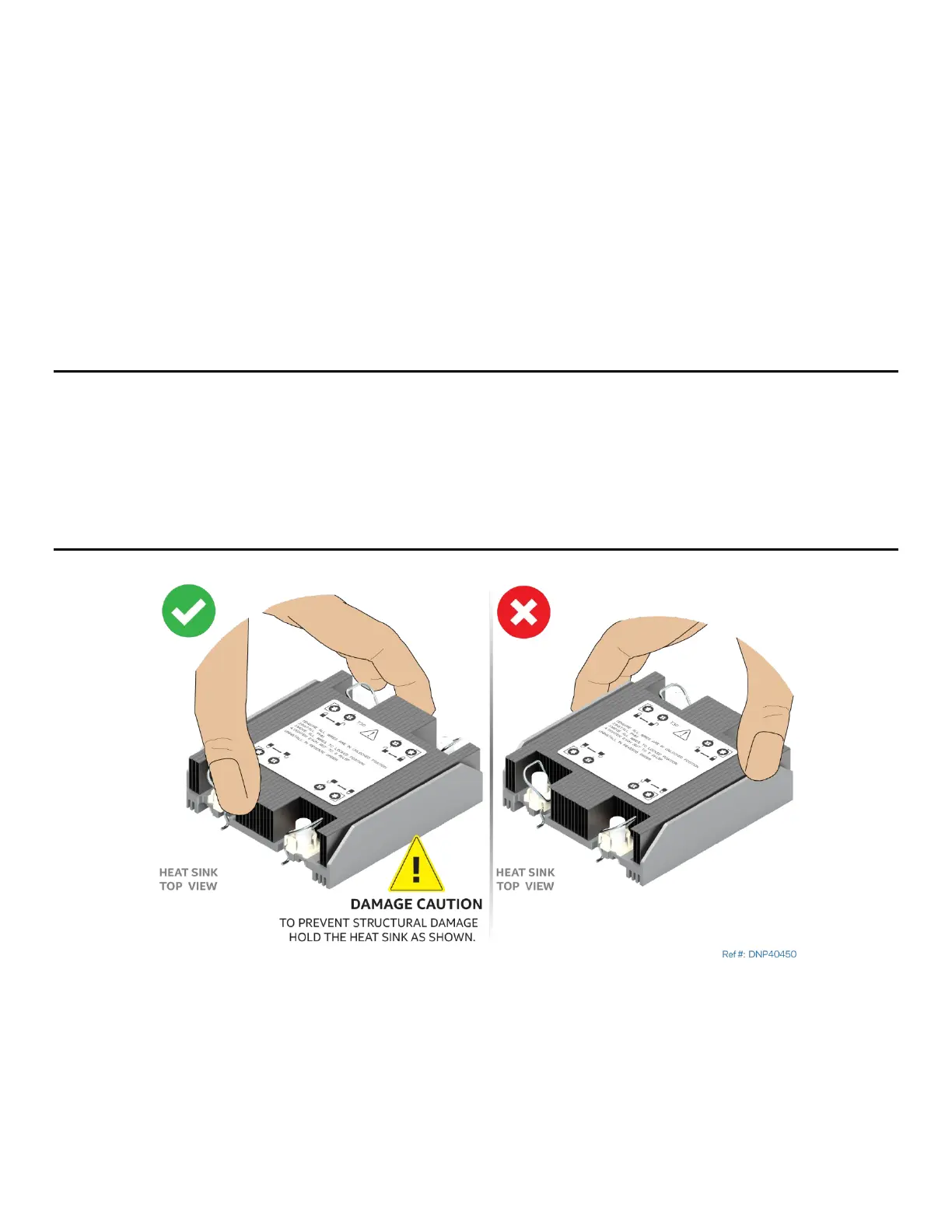

Figure 131. Processor Heat Sink Handling
