Caution: Full ESD precautions should be followed to perform assembly and installation of the PHM to the
server board. Wear ESD gloves to prevent electrostatic damage and oxidation or foreign materials on
processor package and land pads.
Each component within the PHM assembly includes a Pin 1 indicator. Pin 1 indicator alignment between all
components is required throughout the assembly process.

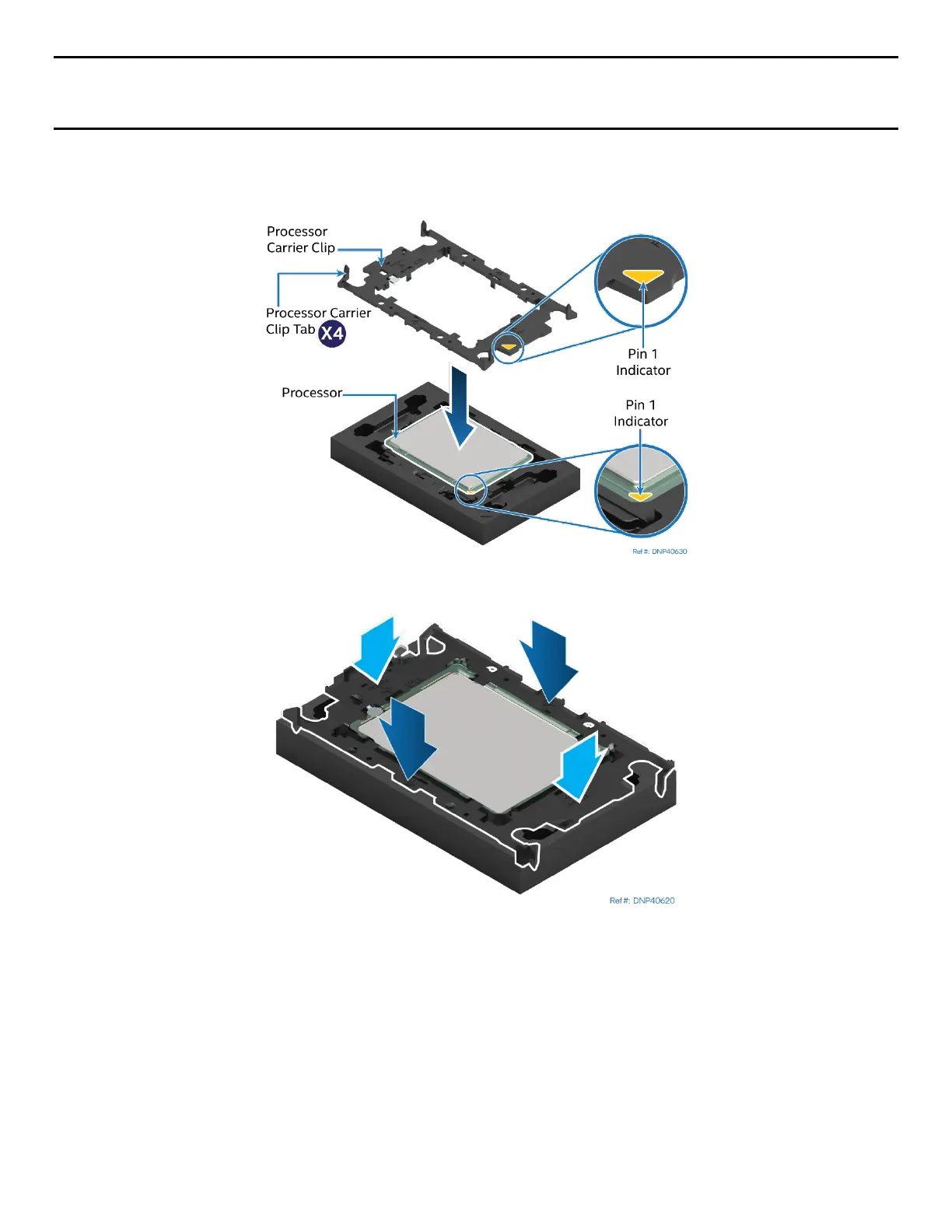

Figure 33. Installing the Processor Carrier Clip onto the Processor – Part 1
Figure 34. Installing the Processor Carrier Clip onto the Processor – Part 2
1. With the processor still in its tray, place the processor carrier clip over the processor.
2. Ensure that the Pin 1 indicator on the processor carrier clip is aligned with the Pin 1 indicator of the
processor.
3. Gently press down simultaneously on two opposite sides of the processor carrier clip until it clicks in
place.
4. Repeat step 3 for the other two sides.
