Intel® Server D50DNP Family Integration and Service Guide

148

7.5.1 Standard Riser Assembly Removal

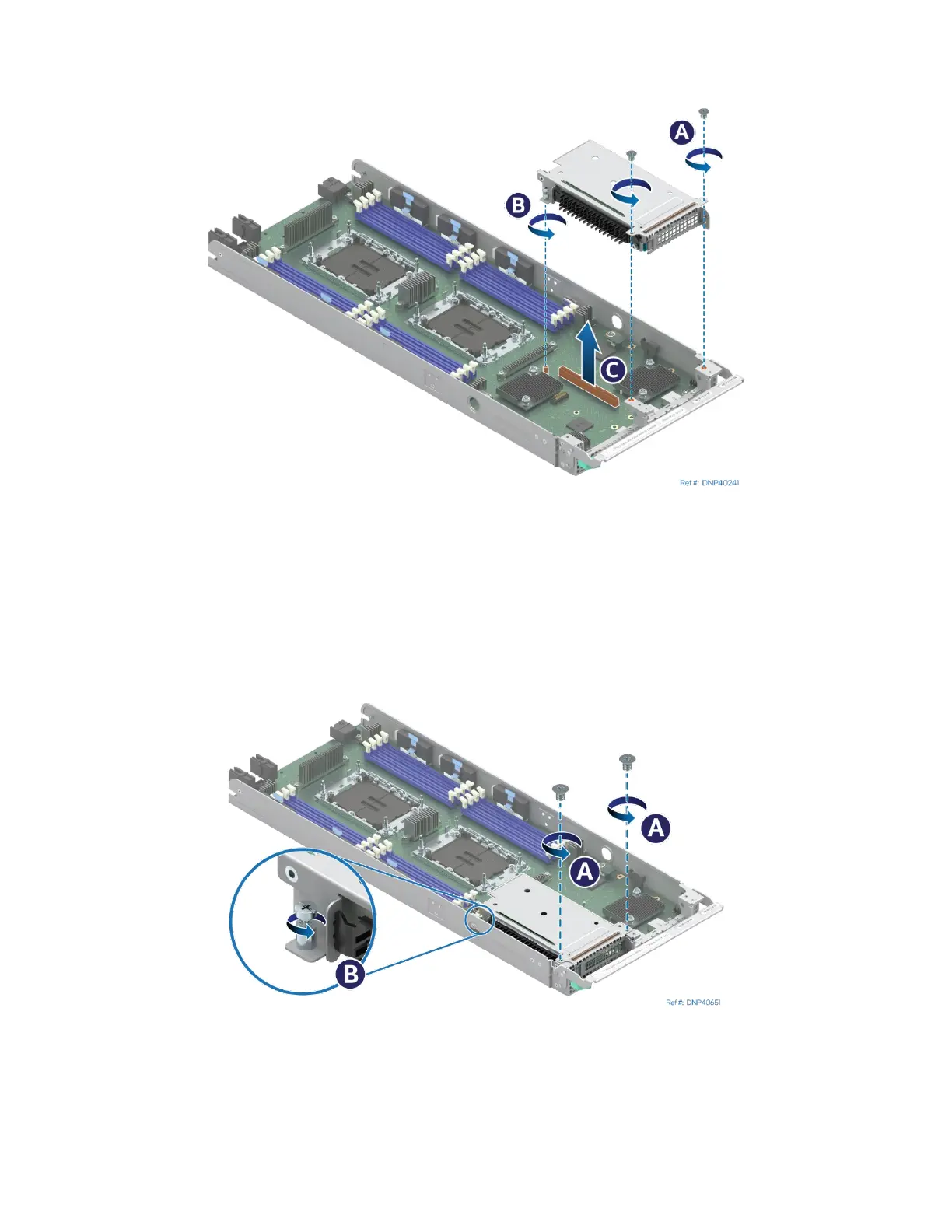

Figure 190. Removing Riser Assembly

1. Using Phillips screwdriver #1 remove two screws that secure the riser assembly to the front of the

module (see Letter A).

2. Using Phillips screwdriver #2 loosen the captive screw at the back of the riser assembly. (see Letter B)

3. Carefully remove the riser assembly by lifting it up and away from the module (see Letter C).

7.5.2 MCIO* Riser Assembly Removal

Figure 191. Removing Screws for MCIO Riser Assembly

1. Using Phillips screwdriver #1 remove two screws that secure the riser assembly to the front of the

module (see Letter A).

2. Using Phillips screwdriver #2 loosen the captive screw at the back of the riser assembly. (see Letter B)

1U air-cooled

module shown

1U air-cooled

module shown
