Intel® Server D50DNP Family Integration and Service Guide

157

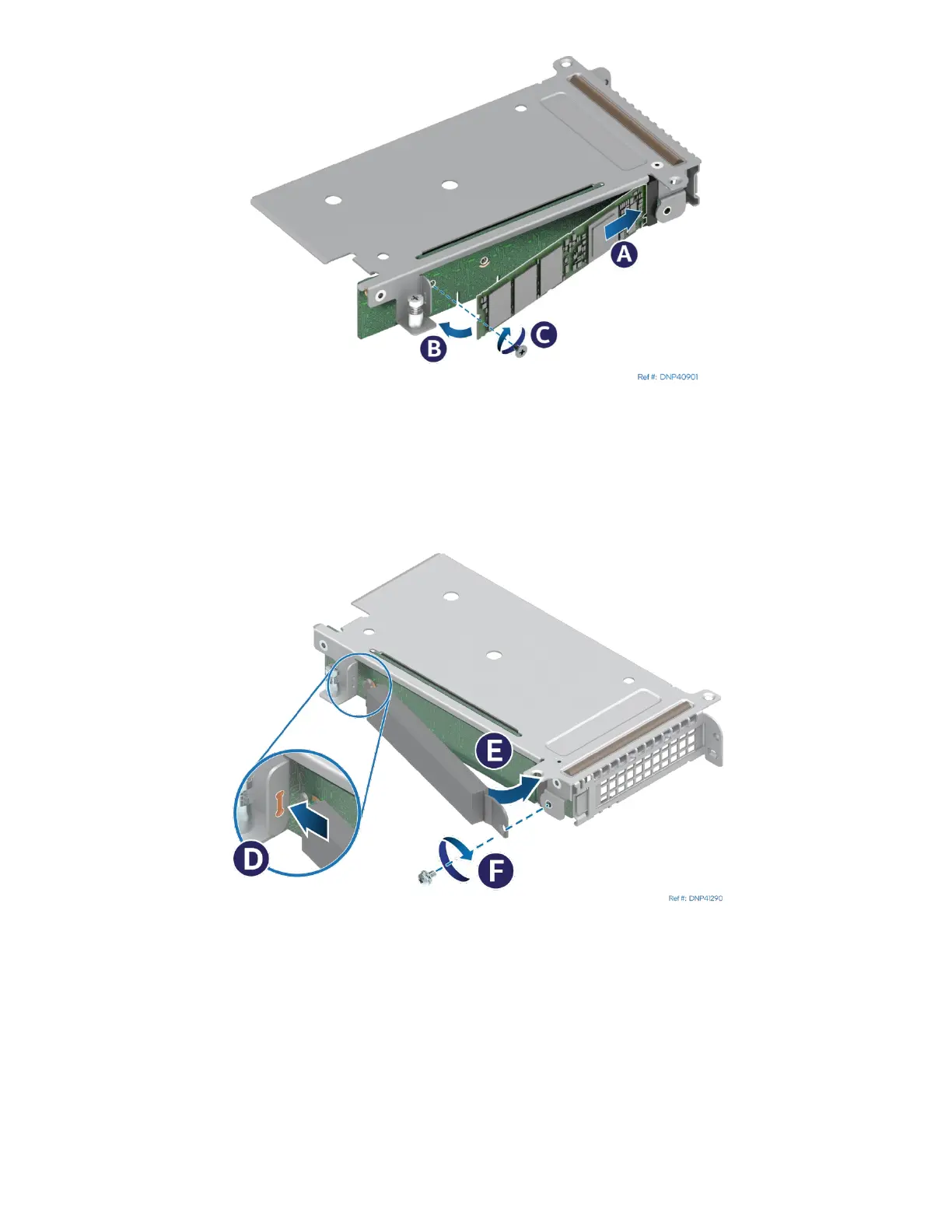

Figure 205. Installing M.2 SSD

10. Align the notch within the SSD edge connector with the key in the M.2 connector and insert the SSD into

the connector (see Letter A).

11. Push the free end of the SSD towards the riser assembly (see Letter B).

12. Secure the M.2 SSD to the mounting standoff with the previously removed screw (see Letter C).

Figure 206. Installing M.2 Cold Plate

13. If installing a new cold plate, peel off the protective film from the thermal interface material.

14. Insert the tab at the edge of the cold plate into the slot on the riser assembly (see Letter D) making sure

the heat sink side covered with the thermal pad is facing the M.2 SSD.

15. Push the loose end of the cold plate towards the SSD (see Letter E).

16. Secure the cold plate to the riser assembly with a screw (see Letter F).
