Intel D50DNP Series - Figure 220. Securing the Processor Cold Plates; Figure 221. Removing the Liquid-Cooling Loop Carrier

To Next Page

To Previous Page

Intel® Server D50DNP Family Integration and Service Guide

165

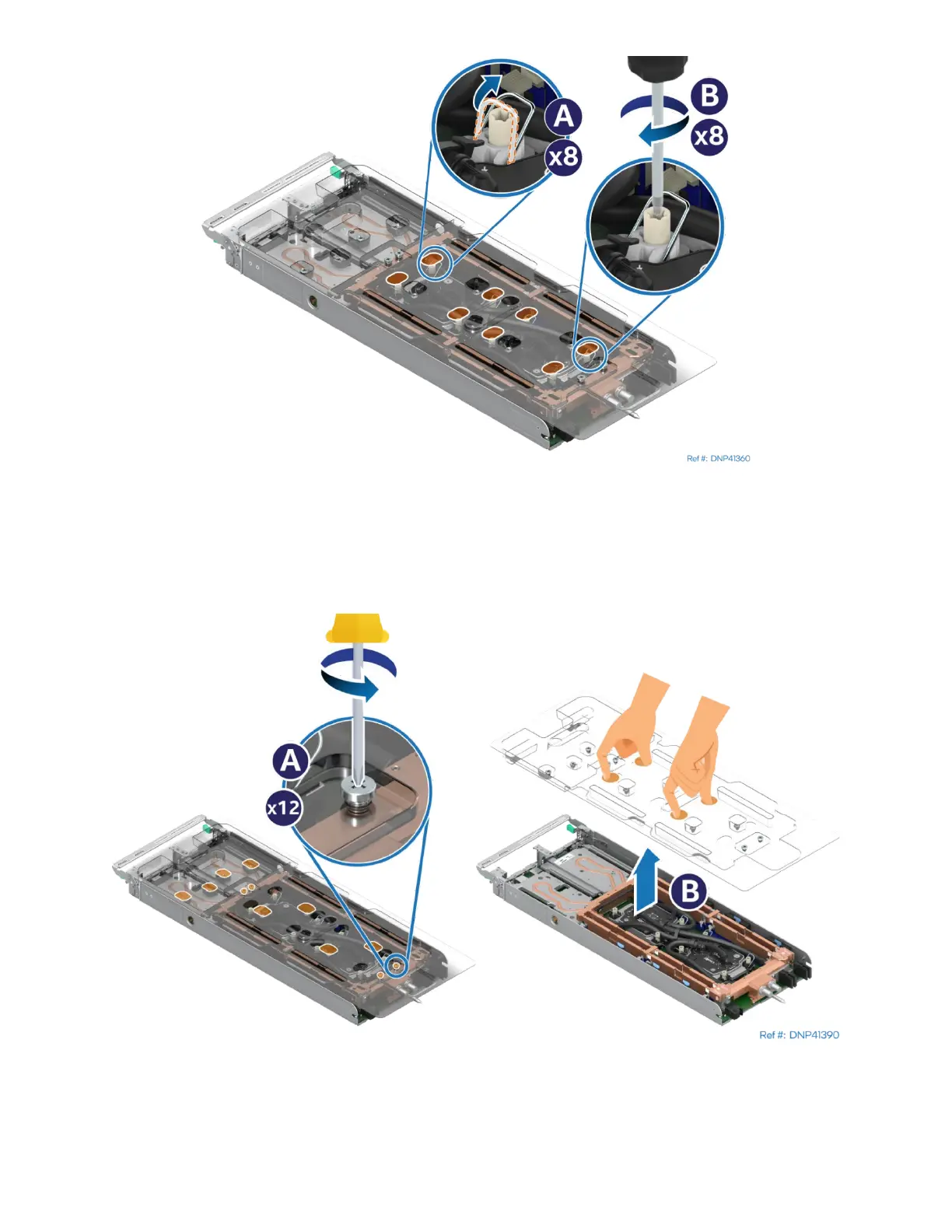

Figure 220. Securing the Processor Cold Plates

27. Set all eight anti-tilt wires on the cold plates to the outward position (see Letter A).

28. Tighten the fasteners on the cold plates to 8 in-lb using a Torx T30* screwdriver (see Letter B). No

specific sequence is needed for tightening.

Figure 221. Removing the Liquid-Cooling Loop Carrier

29. Unscrew all 12 captive screws on the plastic carrier (see Letter A) and carefully lift the carrier up and away

from the module (see Letter B).
