Intel® Server D50DNP Family Integration and Service Guide
24
Mixing different types of modules in the same chassis can be done as follows:
• Up to two 1U air-cooled compute modules with one 2U management module
Notes:
• Mixing liquid-cooled modules with air-cooled modules in a single system is not supported.
• Mixing 1U air-cooled compute module with regular processor heat sinks and 1U compute module
with EVAC processor heat sinks in a single system is not supported.
Before You Begin
Before integration of any system components, review all the safety and ESD precautions in the Safety
Warnings section at the beginning of this service guide.
System Reference
In the following procedures, all references to left, right, front, rear, top, and bottom assume that the reader is
facing the front of the chassis and the front of a module as shown in the following figure (1U air-cooled
compute module shown).

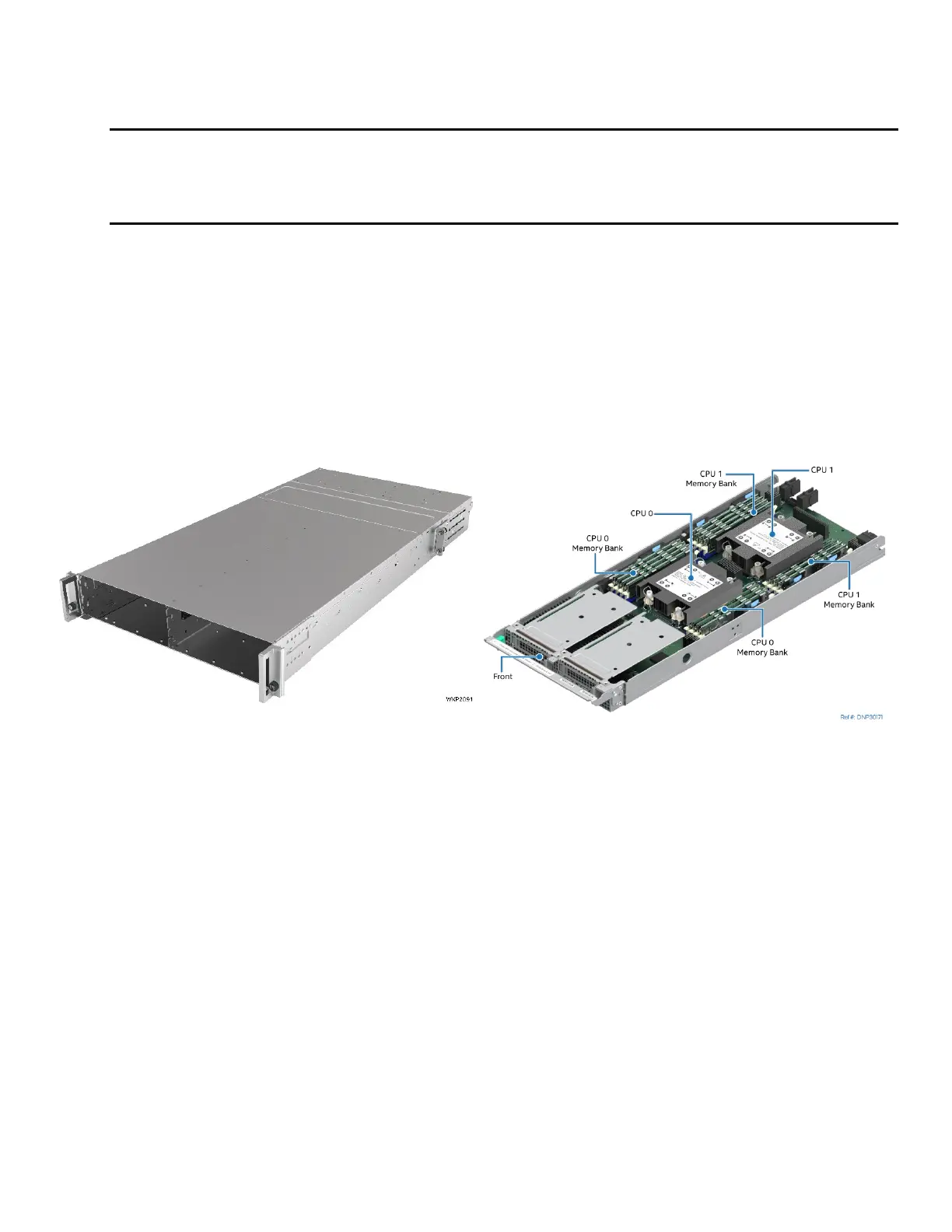

Figure 1. System Directional Reference
Instruction Format
Each procedure described in this chapter follows an illustration first format. This format gives the reader the
option to follow a quicker path to component integration by first seeing an illustration of the intended
procedure. If necessary, the reader can then follow the step-by-step instructions that accompany each
procedure.
Server Chassis
1U Air-Cooled Compute Module
