Intel D50DNP Series - Figure 148. PHM Assembly Removal from Processor Socket; Figure 149. Reinstall the Socket Cover

Intel® Server D50DNP Family Integration and Service Guide
125

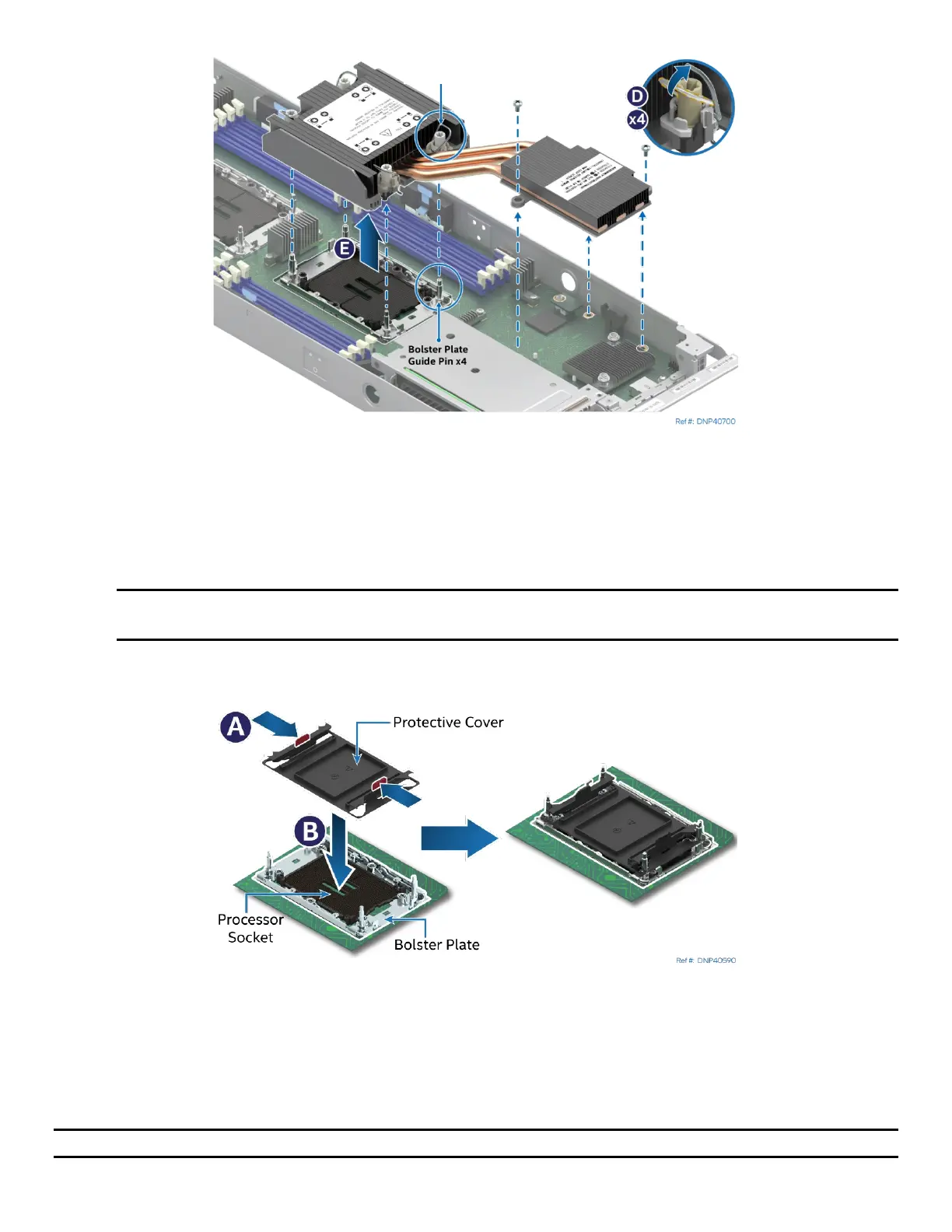

Figure 148. PHM Assembly Removal from Processor Socket
5. Set all four anti-tilt wires on the heat sink to the inward position (see Letter D).
6. Carefully grasp the PHM and lift it straight up and off the server board (see Letter E).
7. With the processor facing up, set the PHM on a flat surface.
8. Visually inspect that the processor socket is free of damage or contamination.
Caution: If debris is observed, blow it away gently with an air blower. Do not use tweezers or any
other hard tools to remove the debris.
9. If not replacing the processor, install the original plastic socket cover over the processor socket.
Figure 149. Reinstall the Socket Cover
• Squeeze the finger grips at each end of the cover (see Letter A).
• Carefully lower the cover over the four alignment pins of the bolster plate and onto the
processor socket (see Letter B).
• Release finger grips to lock the cover in place.
Caution: Do not press down on the center of the socket cover.
Anti-tilt wire x 4
