Intel D50DNP Series - Liquid-Cooling Loop Replacement (D50 DNP1 MHCPLC Module); Figure 207. Liquid-Cooling Loop Components; Figure 208. Removing Screws on Liquid-Cooling Loop

To Next Page

To Previous Page

Intel® Server D50DNP Family Integration and Service Guide

158

7.7 Liquid-Cooling Loop Replacement (D50DNP1MHCPLC Module)

Note: Remove all the DIMMs from the memory slots before replacing the liquid-cooling loop

(see Section 7.4.2).

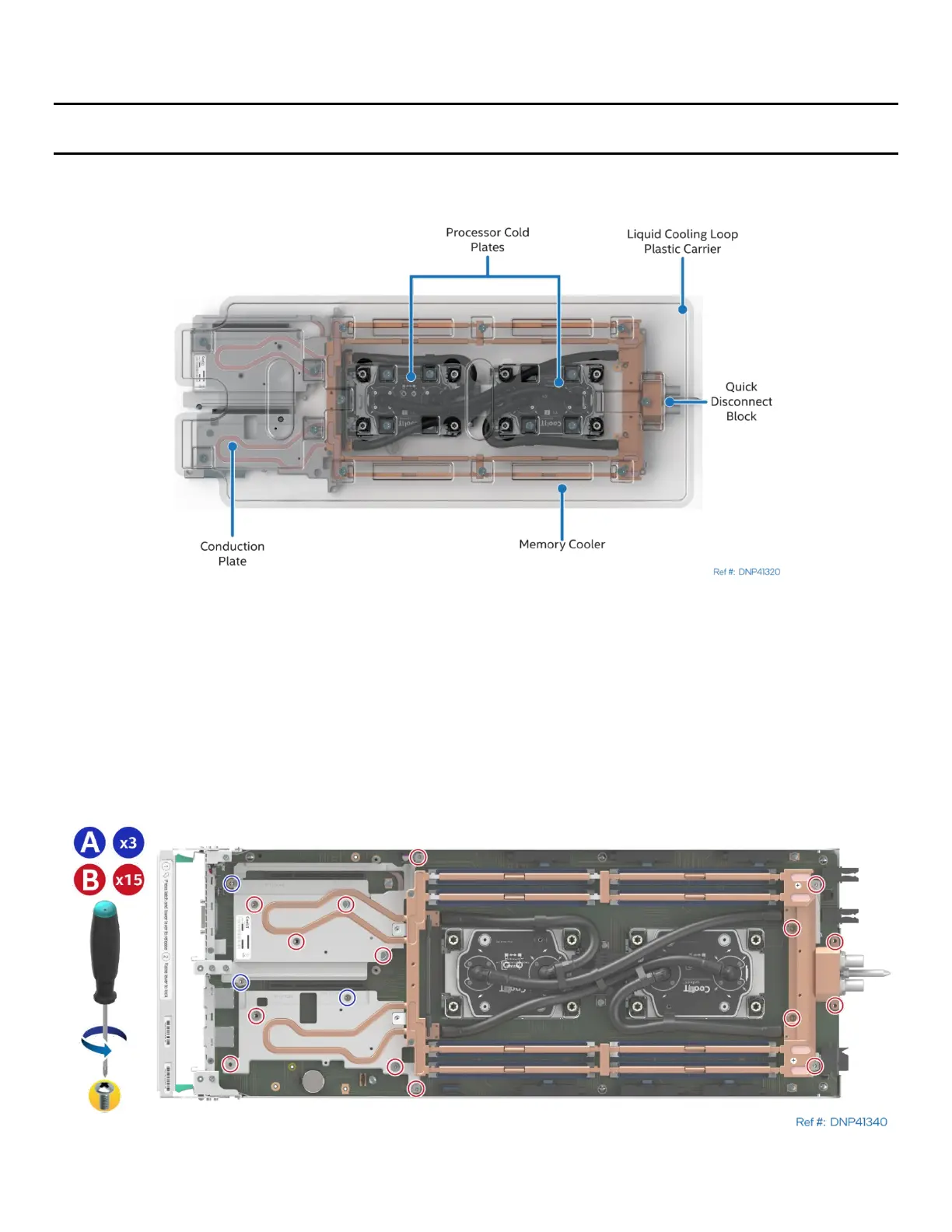

The components of the liquid-cooled loop are shown in the following figure.

Figure 207. Liquid-Cooling Loop Components

Required Tools and Supplies

• Anti-static wrist strap and conductive workbench pad (recommended)

• Phillips* head screwdriver #2

• Torx T30* screwdriver

• D50TNP liquid-cooling VR TIM application tools (iPC TNPLCVRTLS)

• D50TNP liquid-cooling VR TIM application nozzles (iPC TNPLCVRTNZ)

• D50TNP liquid-cooling VR TIM compound (iPC TNPLCVRCMPD)

Figure 208. Removing Screws on Liquid-Cooling Loop
